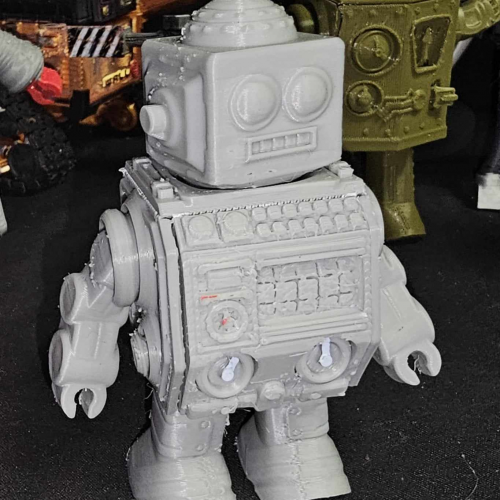

This is the 6th in a series of folding robots to prepare for 4D printing. This robot was inspired by tin toy robot.
This product has been designed for a more diverse representation of the size of a little robot.
Designed for easy folding of complex structures, this product has been designed to meet the needs of popular 4D printing in the future.
It will revolutionize 3D printing as a totally new structure robot that does not need to be supported nor assembled, just fold.
This design does not require assembly, but the head, arms, legs etc, can rotate at various angles, so you can play with a variety of things.
The folded part is made concave so that anyone can fold it easily.
The biggest feature of this design is that it is folded and rotated by two gears that meet each other. It is designed to be keyed and turned.
The structure in which the gears are folded and engaged is inspired by the features of the original winding clockwork tin toy robots.
And this structure will be important for future products.
The order of folding this robot is as follows.
Folding process ➪
Review from HAWK 3D PROTO ➪
Review from Italy Maker ➪

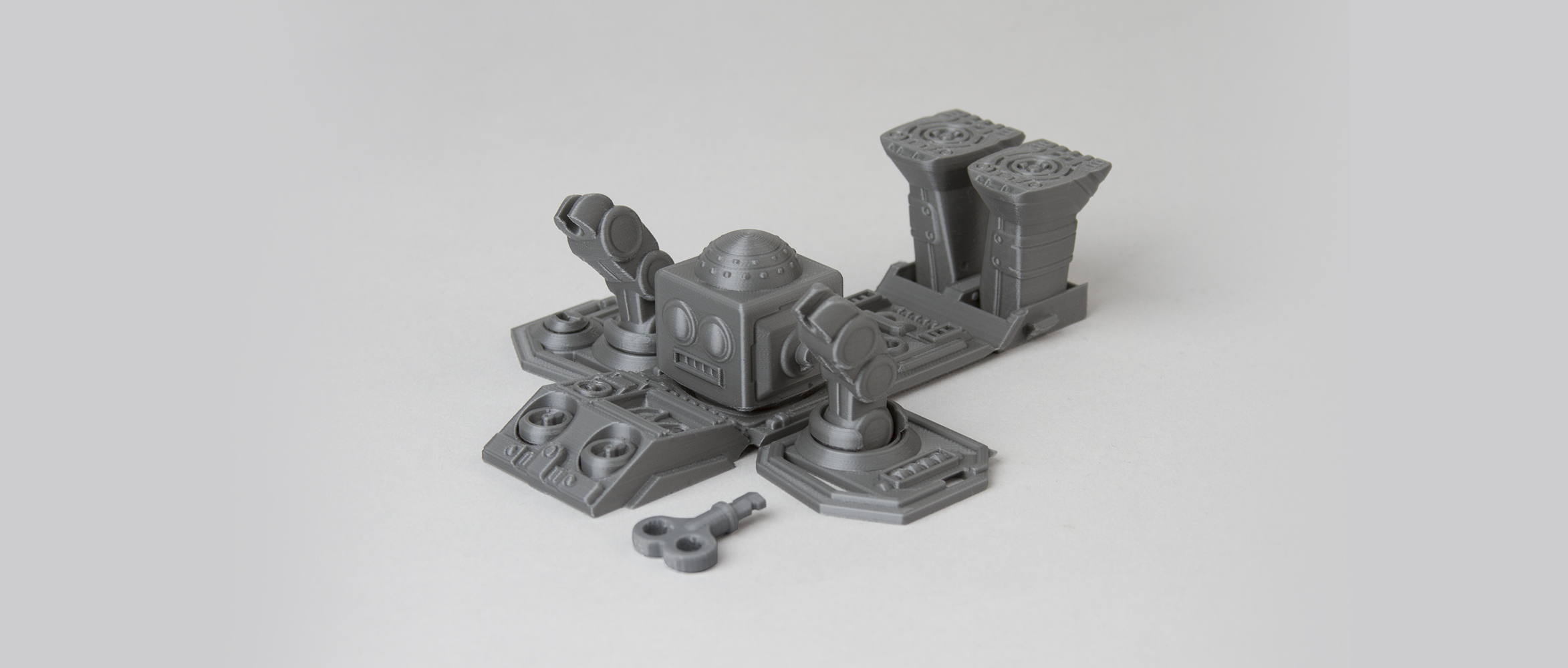

When expanded, size = X 117mm, Y 140mm, Z 39mm After folding X 44mm, Y 80mm, Z 98mm
| PRUSA Slicing Settings | Simplify 3D |
|---|---|
| Extuder | Nozzle Diameter : 0.4mm / Retraction Distance : 2.4mm |
| Layer Settings | Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2 |
| First Layer Settings | First Layer Height : 150% / First Layer Width : 100% / First Layer Speed : 50% |
| Infill | Interlor Fill Percentage : 10% / Outline Overlap : 30% |
| Additions | Raft : OK / Brim : NO / Support : NO |
| Ender Slicing Settings | Simplify 3D |
| Extuder | Nozzle Diameter : 0.4mm / Retraction Distance : 4mm |
| Layer Settings | Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2 |
| First Layer Settings | First Layer Height : 120% / First Layer Width : 100% / First Layer Speed : 50% |
| Infill | Interlor Fill Percentage : 10% / Outline Overlap : 40% |
| Additions | Raft : OK / Brim : NO / Support : NO |
