Foldable Robot-MV

$ 4.29

Designer

AUTOBOTO

It is the tenth series of foldable robots to prepare for 4D printing. The robot was designed inspired by the robot that appeared in the British drama (1981), a novel based on one called "The Hitchhiker's Guide to the Galaxy."
This product focuses on the reinterpretation of the original form in a modern way and the production of a new proportion.

This is the kind of "3D Fan art". My imagination has been added so it is difficult to see the original shape before folding it.

Designed for easy folding of complex structures, this product has been designed to meet the needs of popular 4D printing in the future.
It will revolutionize 3D printing as a totally new structure robot that does not need to be supported nor assembled, just fold.
This design does not require assembly, but the head, arms, legs etc, can rotate at various angles, so you can play with a variety of things.
The folded part is made concave so that anyone can fold it easily.

※ Do not use filament manufactured by fillamentum. The filament is hard and breaks well in the process of folding the robot. ※

Folding process
Print with silky silver using LUGO 3D printer

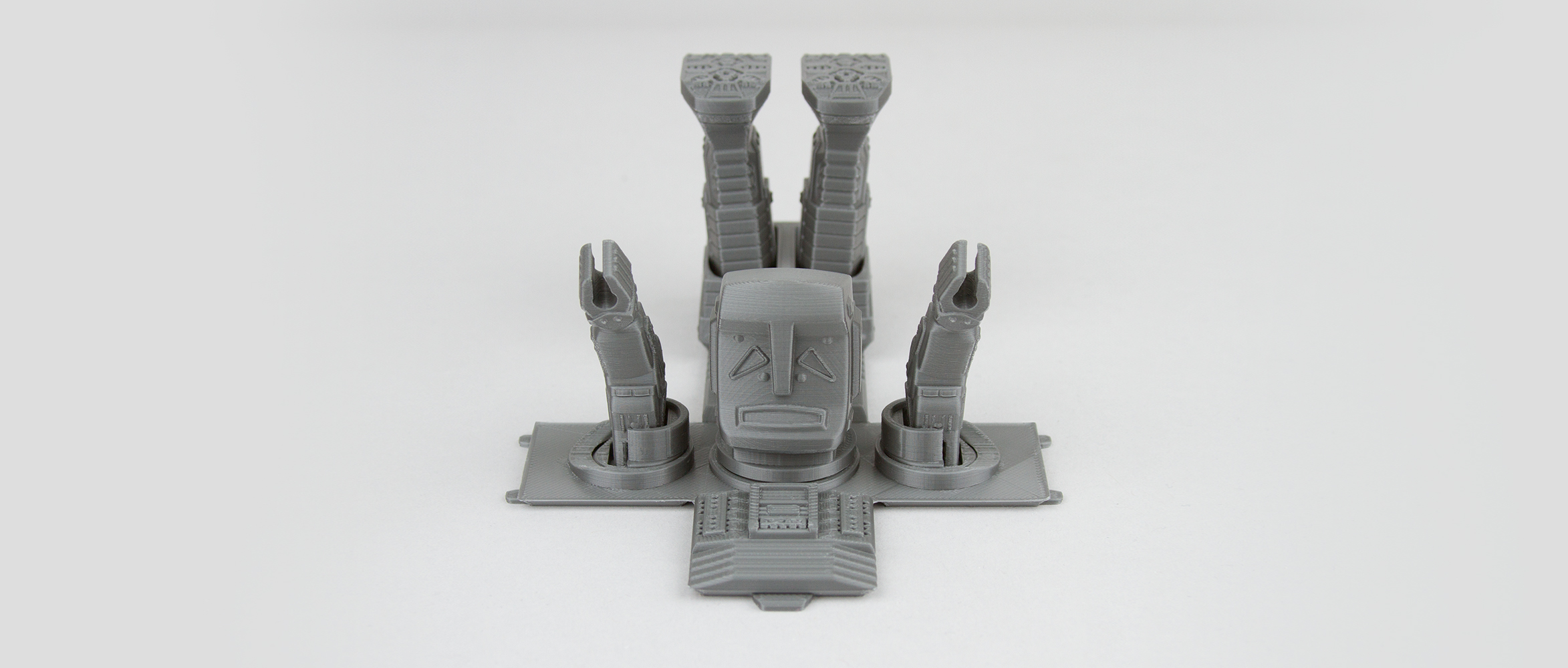

When expanded, size = X 107mm, Y 141mm, Z 60mm After folding X 65mm, Y 45mm, Z 132mm

PRUSA Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 2.4mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 150% / First Layer Width : 100% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 30%
Additions Raft : OK / Brim : NO / Support : NO
Ender Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 4mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 120% / First Layer Width : 100% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 40%
Additions Raft : OK / Brim : NO / Support : NO
File
File 14.5 MB
Average Time
[0.2mm] 7h
[0.1mm] 16h 30m
  • consumermonkey
    2018-09-24 11:16:13

    I have been a huge fan of H2G2 for many years. This a a lovely tribute to the original paranoid android. I've printed him at 100% and 150% and hes excellent. Thanks for your hard work.

    fab365
    2018-09-27 17:58:52

    Marvin is not popular these days, but I wanted to make it even if it did not sell a lot because I love SF. There are some people who like Marvin like you, and I am very pleased that you have made this purchase. I look forward to your continued interest. Thank you~

Notice !

Feel free to talk about your product.
Comments that are irrelevant to the topic may be deleted

did you make it? please write making story !
