Foldable Star ship Enterprise
FREE
You can download 1 free item per Free item - download ticket.
GOODesign
GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf. This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.
This design was created in commemoration of exceeding 10,000 registered users. That's the Enterprise, the spaceship featured in the movie Star Trek. The Enterprise has several designs, but this time it was the first one in the series.
The shape of this spaceship is very simple, but its structure is difficult to reproduce with 3D printing. Despite the use of two slide structures, I had no choice but to use the support structure.
The folding order is as follows:
1. Remove the support of the propulsion unit.
2. Rotate the disc shaped primary hull and fit it on the protrusion of the vertical connection part.
3. The secondary hull of the middle cylindrical shape slides into place.
4. Fold and insert the front part of the secondary hull to fix it.
5. The propulsion unit slides backwards to remove the protruding support and folds the front part.
6. Print the stand without support and insert it into the hole in the bottom center of the Enterprise.
We've created a support that can be easily removed, so there's no need to set up support.
The disc-shaped primary hull may fall during printing, so please be careful with the build bed / plate adhesion. You can also use Raft.
Please refer to the following video for the folding process.
Folding process with Prusa ➪
Folding process with Ender3 Pro on Whembam system bed ➪
Folding process with CR10s Pro ➪
Review from Shahan Subzwari ➪
Review from WildRoseBuilds 02:45~ 03:35 ➪
Printing with Prusa Mini from J P ➪
Printing review from Josep Prusa's Weekly 3D Prints 43 ➪
We would like to thank 10,000 registered users and all the people who have helped us so far and share this design with 3D printing users who are trying to create a new 3D printing culture.

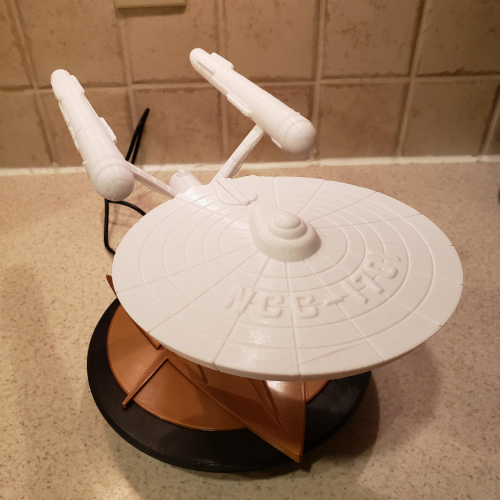

When expanded, size = X 89mm, Y 73mm, Z 77mm After folding X 76mm, Y 168mm, Z 41mm / Pedestal = X 90mm, Y 122mm, Z 36mm
| PRUSA Slicing Settings | Simplify 3D |
|---|---|
| Extuder | Nozzle Diameter : 0.4mm / Retraction Distance : 2.4mm |
| Layer Settings | Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2 |
| First Layer Settings | First Layer Height : 100~150% / First Layer Width : 100% / First Layer Speed : 50% |
| Infill | Interlor Fill Percentage : 10% / Outline Overlap : 30% |
| Additions | Raft : OK / Brim : NO / Support : NO |
| PRUSA Slicing Settings | Slic3r |
| PRUSA MK3 | Layer Height : 0.1mm, 0.2mm / Raft : OK / Brim : NO / Support : NO |
| Ender Slicing Settings | Simplify 3D |
| Extuder | Nozzle Diameter : 0.4mm / Retraction Distance : 4~4.2mm |
| Layer Settings | Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2~3 |
| First Layer Settings | First Layer Height : 120% / First Layer Width : 100% / First Layer Speed : 50% |
| Infill | Interlor Fill Percentage : 10% / Outline Overlap : 40% |
| Additions | Raft : OK / Brim : NO / Support : NO |
| CR-10S Slicing Settings | Cura |
| Quality | Layer Height : 0.1mm, 0.2mm / Line Width : 0.4mm |
| Shell | Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6 |
| Infill | Infill Density : 20% / Patten : Grid |
| Material | Flow : 100% / Retraction Distance : 5.2mm |
| Build Plate Adhesion | Raft / Raft Extra Margin : 3mm / Raft Air Gap : 0.2~0.24mm |
