Foldable Crocodile
$ 4.49
GOODesign
GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf. This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.
Crocodiles are mysterious animals called living dinosaurs. That's why it often appears as an animal documentary material. It is also loved by adults and children and is so popular that it can be used for clothing brands

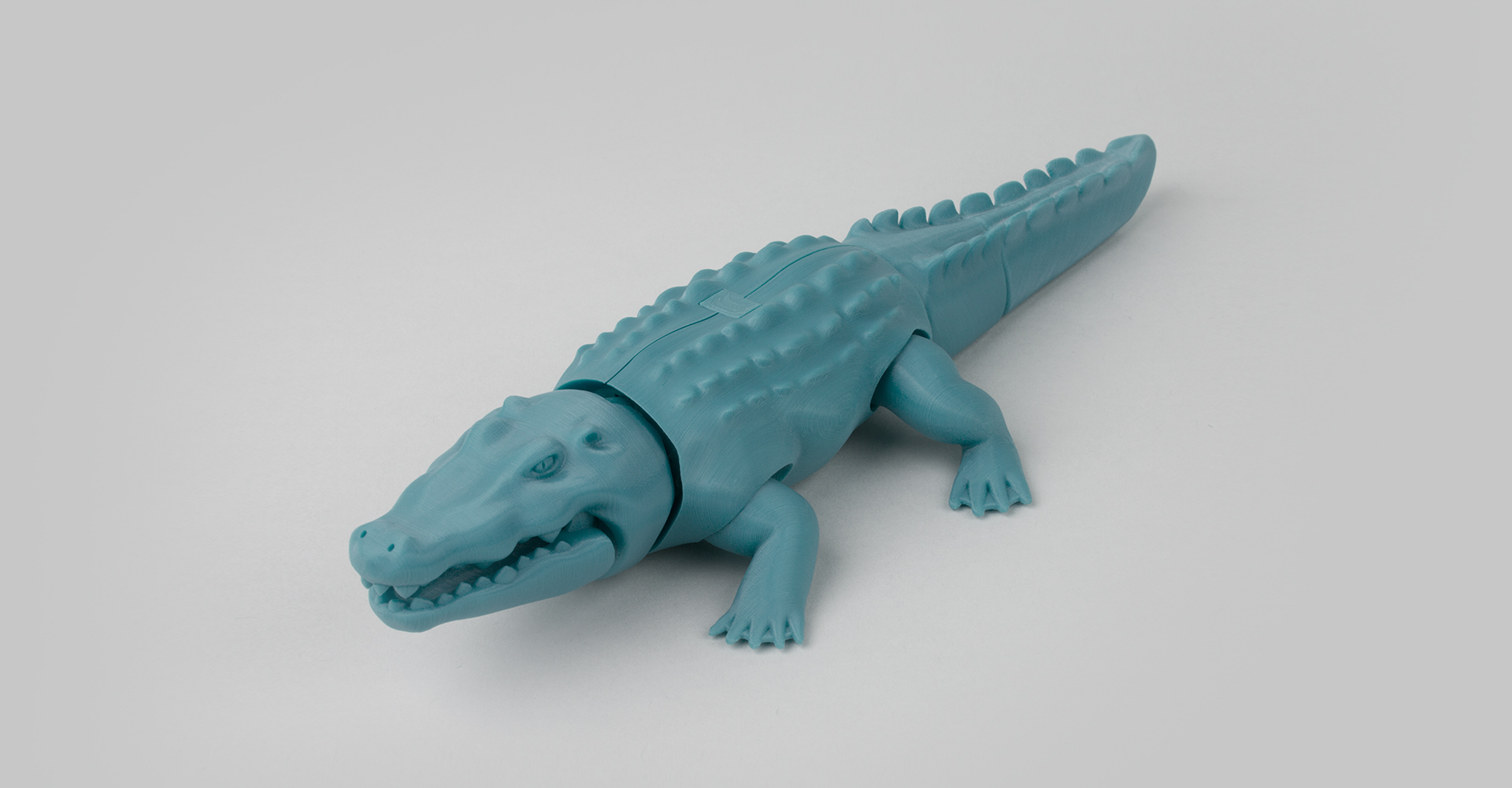

In designing this folding crocodile, much effort has been made to allow the movement of the tail, arms and legs. In particular, I worked hard on the details of the crocodile, which not only showed the teeth but also the jaw muscles.
Please note that the folding pin should be inserted into the body first. And you're going to have to fit the tail frame into one body and then the rest.
Please check the following video for the folding process.
Printing and Folding process with Whambam system plate ➪
Review from Tutos Impression 3D ➪
When expanded, size = X 89mm, Y 183mm, Z 58mm After folding X 95mm, Y 219mm, Z 39mm
| PRUSA Slicing Settings | Simplify 3D |
|---|---|
| Extuder | Nozzle Diameter : 0.4mm / Retraction Distance : 2.4mm |
| Layer Settings | Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2 |
| First Layer Settings | First Layer Height : 100% / First Layer Width : 100% / First Layer Speed : 80% |
| Infill | Interlor Fill Percentage : 15% / Outline Overlap : 30~40% |
| Additions | Raft : OK / Brim : NO / Support : NO |
| PRUSA Slicing Settings | Slic3r |
| PRUSA MK3 | Layer Height : 0.1mm, 0.2mm / Raft : OK / Brim : NO / Support : NO |
| Ender Slicing Settings | Simplify 3D |
| Extuder | Nozzle Diameter : 0.4mm / Retraction Distance : 4.2mm |
| Layer Settings | Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2 |
| First Layer Settings | First Layer Height : 120% / First Layer Width : 150% / First Layer Speed : 50% |
| Infill | Interlor Fill Percentage : 15% / Outline Overlap : 30~40% |
| Additions | Raft : OK / Brim : NO / Support : NO |
