Foldable deer
$ 4.49
GOODesign
GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf. This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.

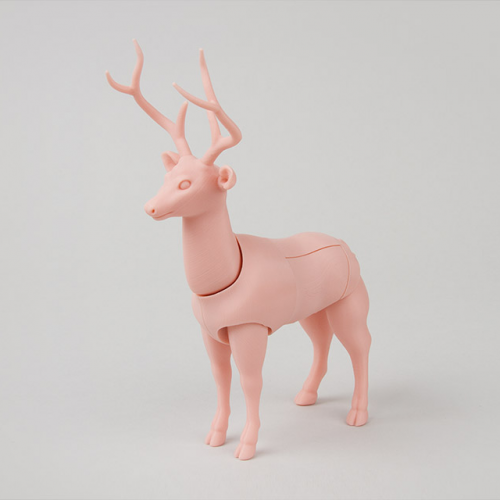

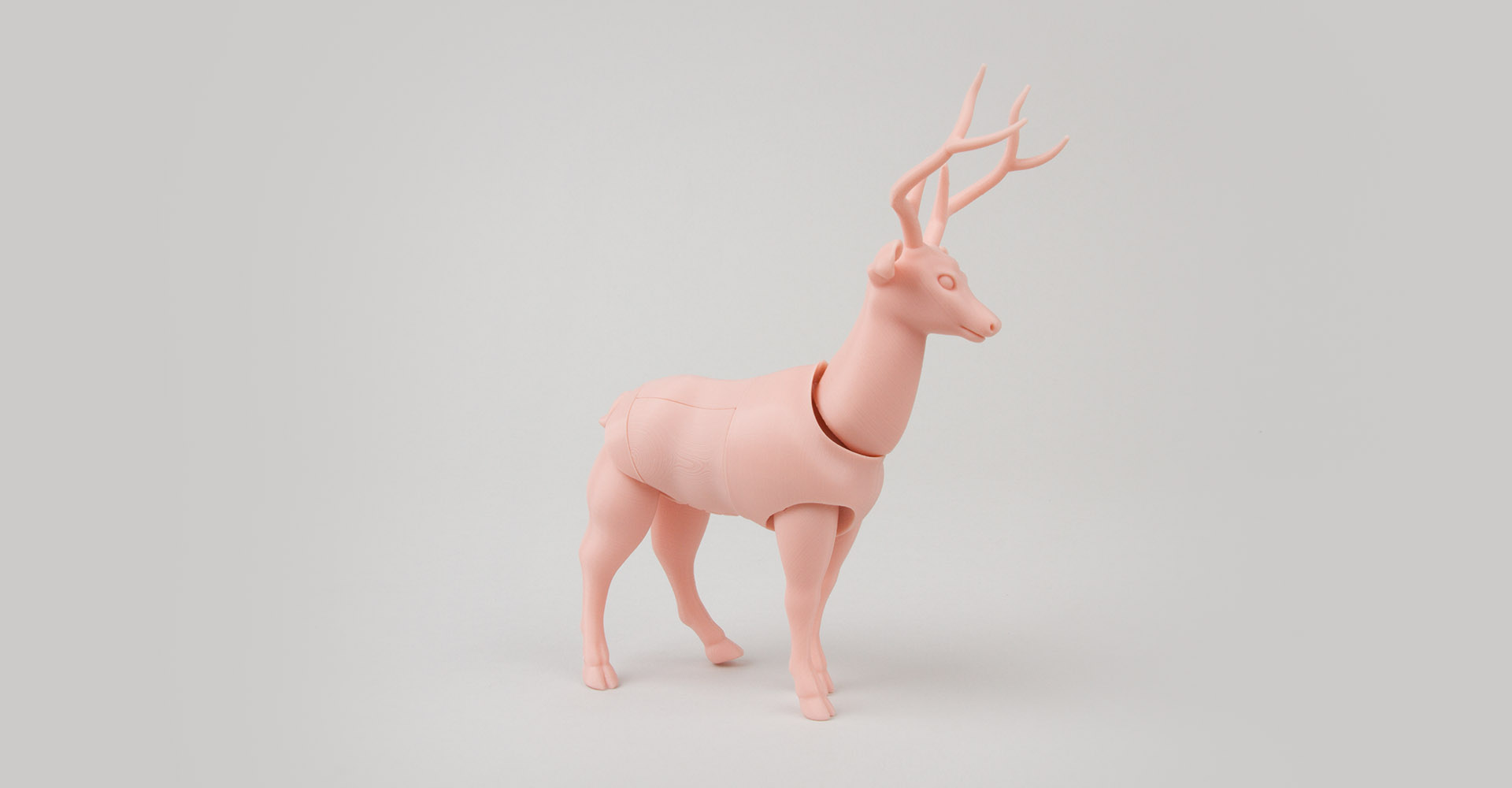

Christmas is coming! One of the best animals for Christmas is probably a deer. So I designed a folding deer this time.
It is the third in the series of foldable animals, which, like the rest of the animals, implements the movement of the legs and the movement of the neck. It was very difficult to make a foldable structure while keeping the deer's thin but powerful shape. Nevertheless, it was designed to print the horns at once.
※ Some parts may fall during printing, so please use Raft in this case.
The folding process is as follows:
1. Fold the middle torso first, then fold the hips, and then insert the folded hips into the middle torso.
2. And fold the body/shoulders and fit it into the middle torso.
3. Finally, put the deer's head in the body to complete.
After the folding process, sometimes the inserted parts may come loose and come off, so it is better to use glue.
Complete your Christmas decorations with this foldable deer.
Merry Christmas!
When expanded, size = X 82mm, Y 153mm, Z 89mm After folding X 39mm, Y 118mm, Z 171mm
| PRUSA Slicing Settings | Simplify 3D |
|---|---|
| Extuder | Nozzle Diameter : 0.4mm / Retraction Distance : 2.4mm |
| Layer Settings | Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2 |
| First Layer Settings | First Layer Height : 100% / First Layer Width : 100% / First Layer Speed : 80% |
| Infill | Interlor Fill Percentage : 15% / Outline Overlap : 30% |
| Additions | Raft : OK / Brim : NO / Support : NO |
| PRUSA Slicing Settings | Slic3r |
| PRUSA MK3 | Layer Height : 0.1mm, 0.2mm / Raft : OK / Brim : NO / Support : NO |
| Ender Slicing Settings | Simplify 3D |
| Extuder | Nozzle Diameter : 0.4mm / Retraction Distance : 4.2mm |
| Layer Settings | Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2 |
| First Layer Settings | First Layer Height : 120% / First Layer Width : 150% / First Layer Speed : 50% |
| Infill | Interlor Fill Percentage : 15% / Outline Overlap : 30~40% |
| Additions | Raft : OK / Brim : NO / Support : NO |
Notice !
Feel free to talk about your product.
Comments that are irrelevant to the topic may be deleted
did you make it? please write making story !
Write Review
how dose this attach to the sled?
@zaine02
Deer and sled are not connected.
You can connect with a fabric of any design you like.
Can you do a unicorn version? ;)
We have a plan for unicorn.
Please expect~
Thank you~
