Foldable Unibilt sleeper-Add on for Peterbilt 379

FREE

Designer

GOODesign

GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf.   This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.

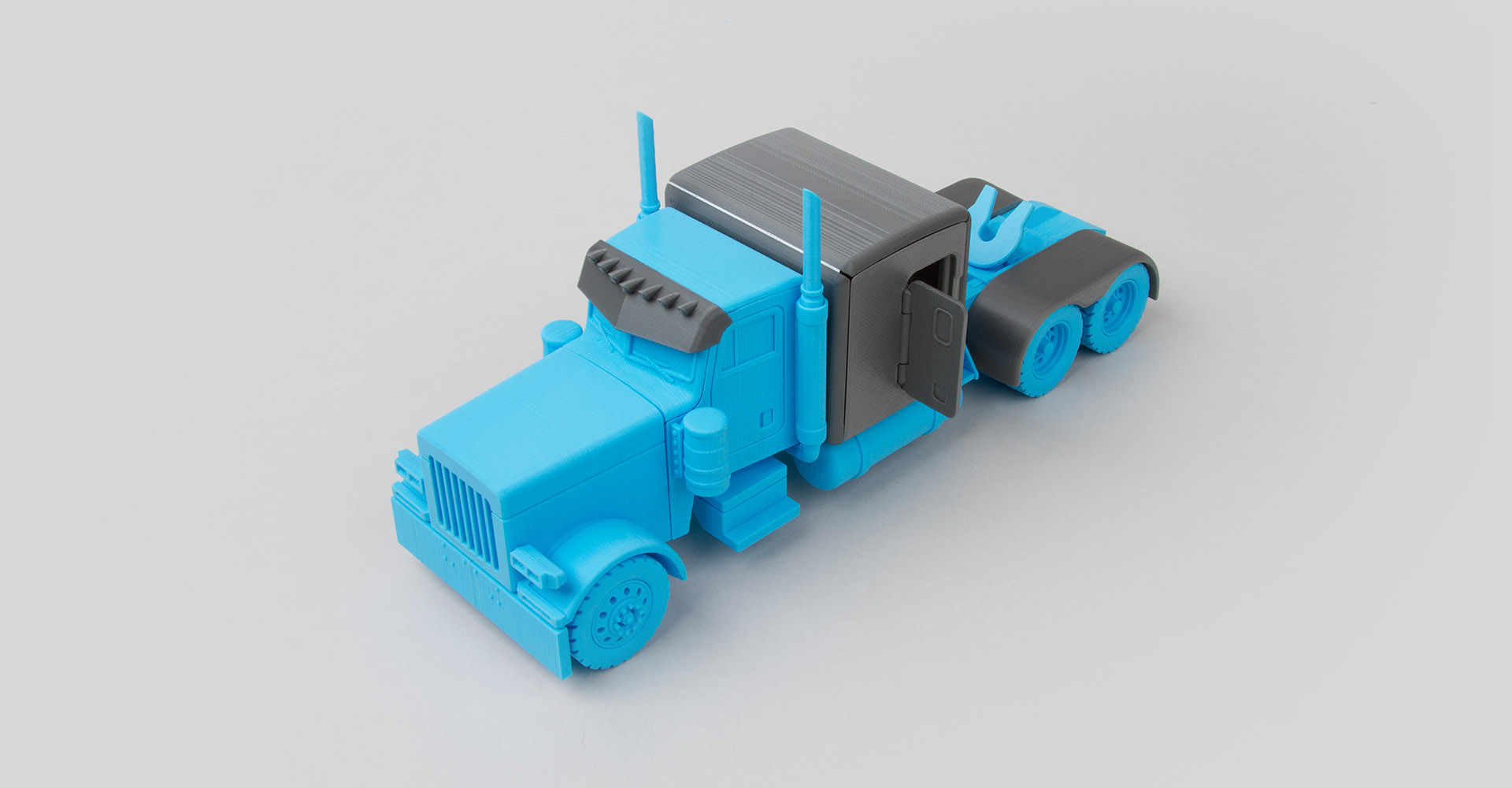

This is an optional part for the foldable trailer Peterbilt 379. It consists of three types: sun visor, unibilt sleeper unit and top wheel cover.
1. The sun visor fits into the holes on the sides of the front window.
2. The rear wheel cover fits into the protrusion between the rear wheels.
3. Fold the uni-built slippers and place them on the back of the frame. Uni-built slippers can open and close one door.
I recommend using adhesive to make these parts stick together.

Customize your trailer Peterbilt 379 more complete with this optional part.

Folding process with Prusa
Folding process with Ender 3 pro, Noulei filament, Whambam bed

When expanded, size = X 154mm, Y 136mm, Z 18mm After folding X 39mm, Y 54mm, Z 42mm

PRUSA Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 2.4~2.6mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 100~150% / First Layer Width : 100% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 35%
Additions Raft : OK / Brim : NO / Support : NO
PRUSA Slicing Settings Slic3r
PRUSA MK3 Layer Height : 0.1mm, 0.2mm / Raft : OK / Brim : NO / Support : NO
Ender Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 4~4.6mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2~3
First Layer Settings First Layer Height : 120% / First Layer Width : 100% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 40%
Additions Raft : OK / Brim : NO / Support : NO
CR-10S Pro Slicing Settings Cura
Quality Layer Height : 0.1mm, 0.2mm / Line Width : 0.4mm
Shell Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6
Infill Infill Density : 20% / Patten : Grid
Material Flow : 100% / Retraction Distance : 5.2mm
Build Plate Adhesion Raft / Raft Extra Margin : 3mm / Raft Air Gap : 0.2~0.24mm
File
File 3.5 MB
Recommend Print
Material Color
Average Time
[0.1mm] Unibilt Sleeper : 5h 30m
[0.1mm] Sun Visor : 40m
[0.1mm] Wheel Cover : 1h 30m
