Foldable Trailer Frame

$ 2.79

Designer

GOODesign

GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf. This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.

This is an additional item for the folding car Peterbilt. Peterbilt truck not included.
Download Peterbilt truck

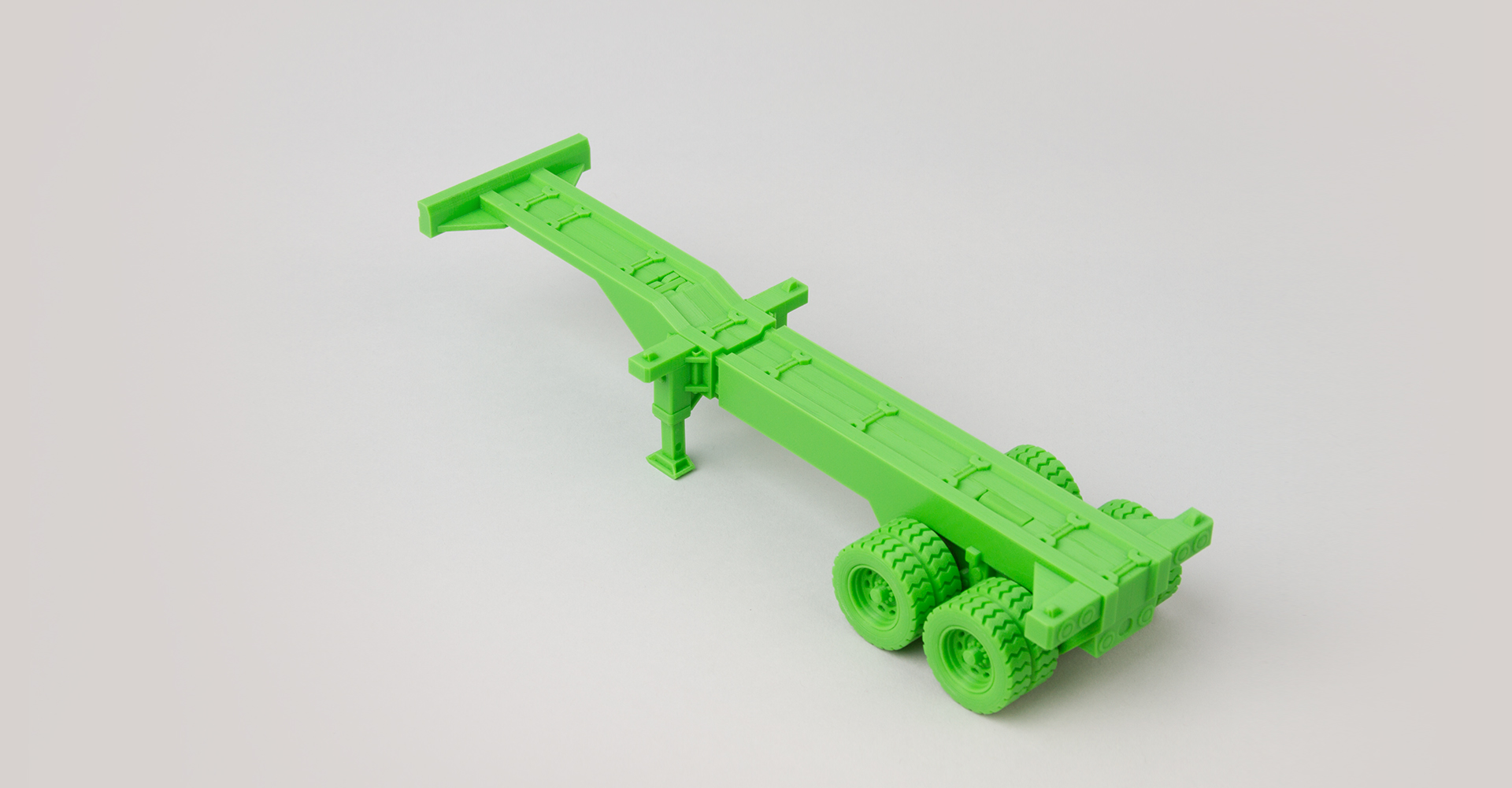

The trailer truck can connect various things to the back. This time I made a frame for the container that the most widely used of them.
This container frame can hold a container box, but you can also load others with additional options.
The container frame can be adjusted in length by sliding so that the length can be adjusted according to the objects placed on the top.
The folding process of this container frame is very simple and only the frame stand is printed out and fitted.
After folding, simply slide it onto the rear connecting part of the Peterbilt truck. If this is difficult, you can remove the coupling and attach it to the trailer frame first and then refit it on the back of the truck.
If this container frame is not well fixed after folding, we recommend using glue.

Print and folding with prusa

Wheel cowls are compatible with Unibilt Sleeper option.
Download Free Unibilt Sleeper option

We will be making additional items in the future. If you have an item you want, please request it.

Request here

1 : 48 scale
When expanded, size = X 203mm, Y 80mm, Z 27mm After folding X 203mm, Y 50mm, Z 39mm / X 246mm, Y 50mm, Z 39mm

PRUSA Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 2.4~2.6mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 100~150% / First Layer Width : 100% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 35%
Additions Raft, Skirt : OK / Brim : NO / Support : NO
PRUSA Slicing Settings Slic3r
PRUSA MK3 Layer Height : 0.1mm, 0.2mm / Raft, Skirt : OK / Brim : NO / Support : NO
Ender Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 4.6~5mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2~3
First Layer Settings First Layer Height : 120% / First Layer Width : 100% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 45%
Additions Raft, Skirt : OK / Brim : NO / Support : NO
CR-10S Pro Slicing Settings Cura
Quality Layer Height : 0.1mm, 0.2mm / Line Width : 0.4mm
Shell Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6
Infill Infill Density : 20% / Patten : Grid
Material Flow : 100% / Retraction Distance : 5.2mm
Build Plate Adhesion Raft / Raft Extra Margin : 3~5mm / Raft Air Gap : 0.3~0.32mm
File
File 8.9 MB
Release Date
2020-02-04
Average Time
[0.1mm] Frame : 13h
[0.1mm] Stand : 20m
  • stmichael6613
    2022-01-18 23:06:20

    Are there any possibility to get the wheels and tires as extra parts to print it in different color?
    So I could use it with Marmon truck and would color match....

    mike.bosch2290
    2022-12-06 14:15:13

    I would also love to have the trailers with separate wheels and tires.

  • rodonnell3073178
    2021-03-07 01:44:33

    LOVE this model.....any chance you will develop a flat deck for this trailer??

    fab365
    2021-03-07 11:00:23

    @rodonnell3073178
    Thanks for your advice. We will consider it.

  • cyclops05
    2020-12-18 09:58:38

    Printed well; the connecting clips needed some work to move them, almost broke one.

    Any suggestion on how to better manage the Gaps?

    fab365
    2020-12-22 09:47:35

    @cyclops05 How about seeing Fab365's tips page?
    https://fab365.net/print-tips
