Container scale model

$ 2.99

Designer

GOODesign

GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf.   This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.

Finally I built a container box for the Foldable Peterbilt truck. I wanted to make it in a folding way, but the size was so large that, inevitably, this design did not apply a folding method.

※ Peterbilt truck is not included. ※
Download Foldable Peterbilt Truck
Download Foldable Trailer Frame
Download Foldable Unibilt sleeper-Add on for Peterbilt 379

This container box was made to be available in two sizes, making it user selectable. For smaller sizes (20ft), the trailer frame should be shortened before loading. For large sizes (40ft), stretch the frame and place it.
However, two small sizes cannot be placed at the same time.
The door of this trailer is easy to open and close, and can be used to hold small things inside.

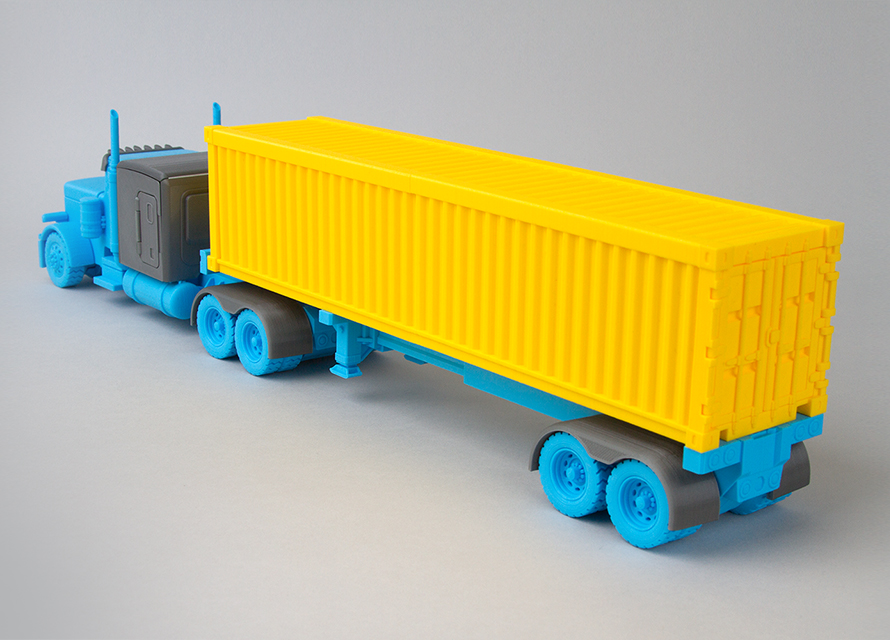

Print with prusa and place on Peterbilt 379 truck
Time-lapse from simon vez

I will continue to make options for Peterbilt trucks in the future.

Size = 20ft Container : X 51.2mm, Y 124.8mm, Z 52.6mm / 40ft Container : X 51.2mm, Y 238.8mm, Z 52.6mm

PRUSA Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 2.4~2.6mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 100% / First Layer Width : 100% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 35%
Additions Raft : OK / Brim : NO / Support : NO
PRUSA Slicing Settings Slic3r
PRUSA MK3 Layer Height : 0.1mm, 0.2mm / Raft : OK / Brim : NO / Support : NO
Ender Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 4.6~5mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 100% / First Layer Width : 80% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 40%
Additions Raft : OK / Brim : NO / Support : NO
CR-10S Pro Slicing Settings Cura
Quality Layer Height : 0.1mm, 0.2mm / Line Width : 0.4mm
Shell Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6
Infill Infill Density : 20% / Patten : Grid
Material Flow : 100% / Retraction Distance : 5.2mm
Build Plate Adhesion Raft / Raft Extra Margin : 3mm / Raft Air Gap : 0.3~0.32mm
File
File 5.1 MB
Recommend Print
Material Color
Average Time
[0.1mm] Front : 2h
[0.1mm] Rear : 1h 40m
[0.1mm] Side-A/B : 14h 30m
