Robot Kid
$ 2.99
Tariq Ali
I am a 3D designer/Editor/Animator based in the beautiful city of Dubai in Middle East. i belong to the 3D design & Sculpting background from the past 10 years. Very much passionate about what i do, so i enjoy doing it & make time for unique projects. Helps me to challenge myself & grow as a professional, & get to know some awesome people. I had worked on a number of 3D projects during my career for brands like Huawei, Head & Shoulders , The Dubai Mall commercials, Footway Shoe-wear. From designing & 3D printing missing bones of skeletons kept in museum to Sculpting a human bust, i was fortunate enough to work on a variety of design projects. Being an artist, I look for inspiration around me everywhere in my everyday life & i try to express emotions through it. 3DPrintingGeek is born out of a combination of my 3d design background & my love for this amazing technology of 3D Printing, which allows me to bring my digital 3d designs into the real world, in my own hands in reality.I try not to follow a specific trend & design almost anything that i find interesting & which i feel challenges my skills & help me to learn new techniques along the way. Regards, Tariq Ali
Carrying forward the trend set by Fab365 of designing models that print without supports, I wanted to design a robot that looks like a baby or a young kid. To make it a bit more challenging, I decided to make it with zero expressions on his face, that is when I designed this cute little Robo Kid in Fusion360.

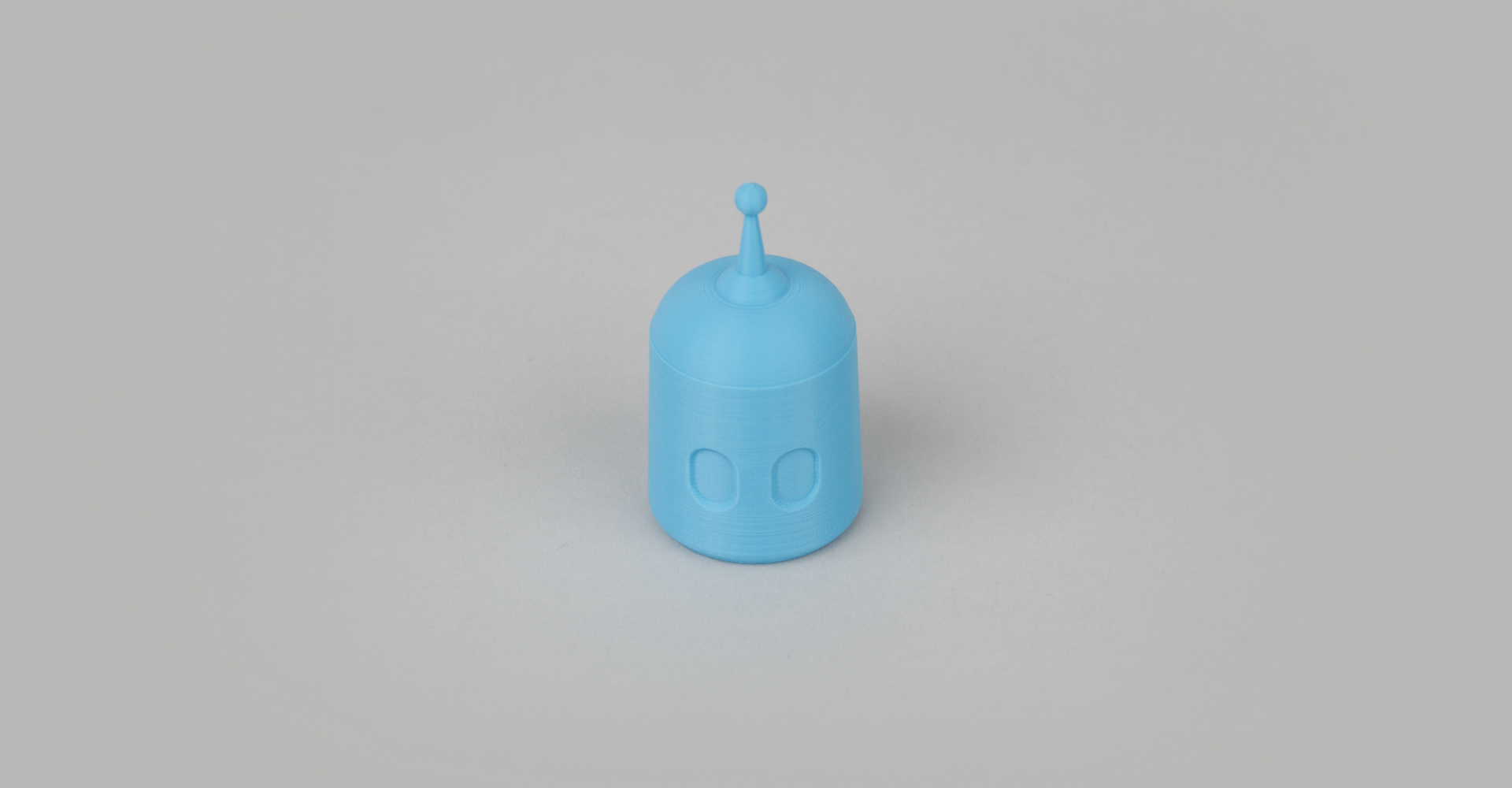

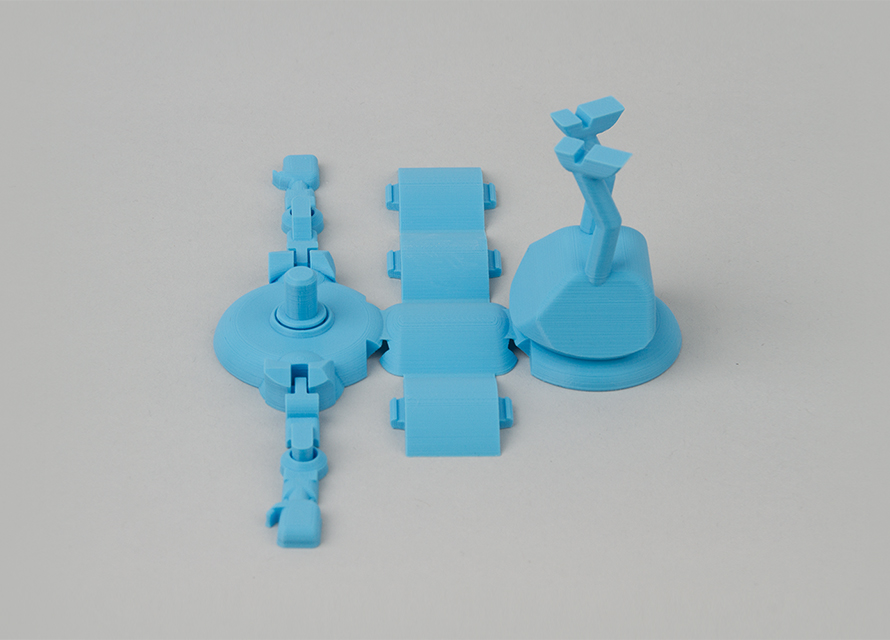

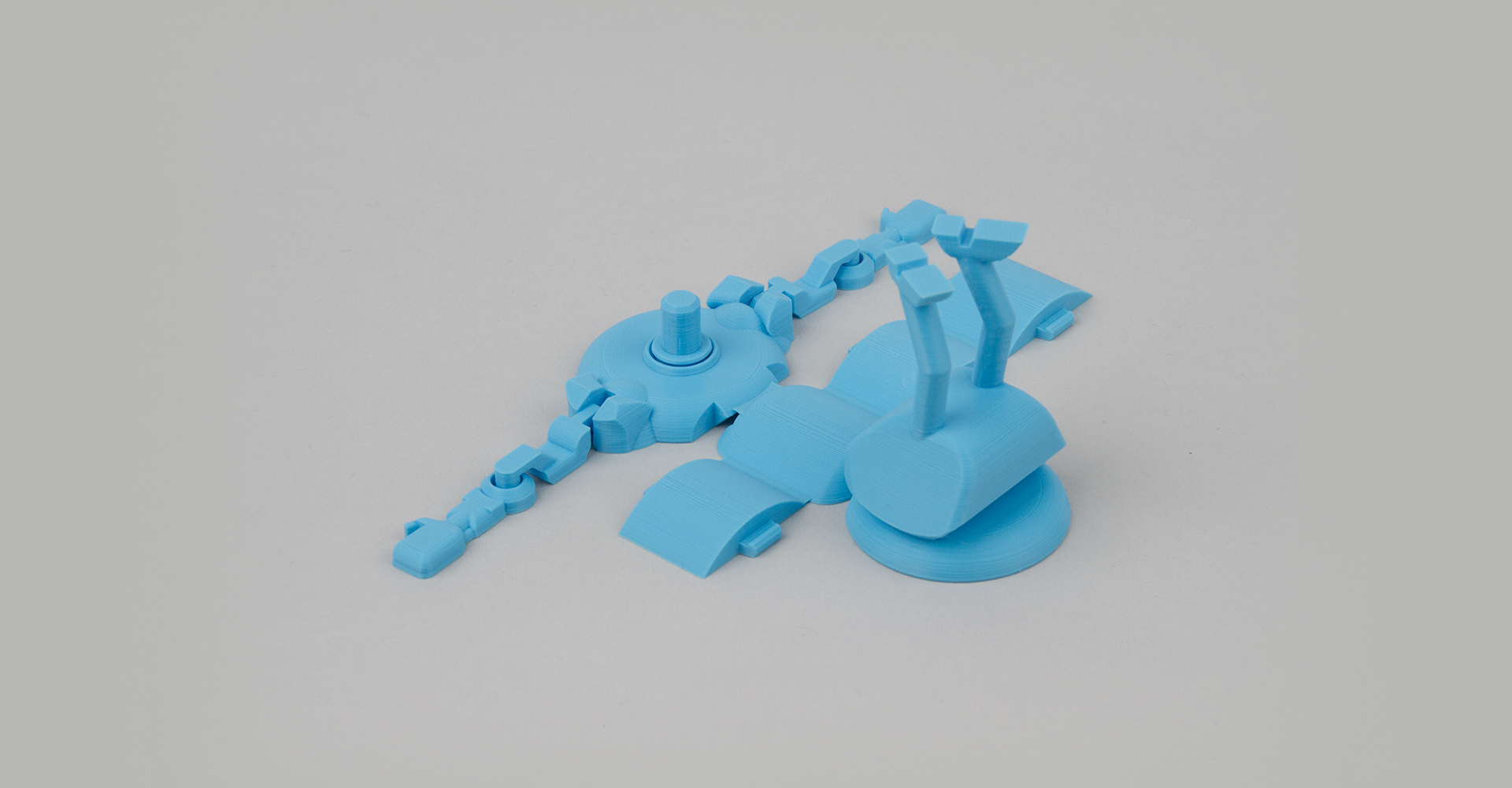

The design is very simple & prints in two parts. The head (part1) & the body(part2), which easily gets connected to each other from the neck without using any glue or a third-party component. The face has no expressions on it to give the character a unique look using only the eyes as the main feature. The arms/shoulders rotate approximately 180 degrees. The head can be rotated 360 degrees. It is an easy model to print & give away like a toy to young kids. It is definitely gonna bring a smile on their faces. So go ahead & Print an army of the Robo Kids. Enjoy!
| PRUSA Slicing Settings | Simplify 3D |
|---|---|
| Extuder | Nozzle Diameter : 0.4mm / Retraction Distance : 2.4~2.6mm |
| Layer Settings | Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2 |
| First Layer Settings | First Layer Height : 100% / First Layer Width : 100% / First Layer Speed : 50% |
| Infill | Interlor Fill Percentage : 10% / Outline Overlap : 35% |
| Additions | Raft : OK / Brim : NO / Support : NO |
| PRUSA Slicing Settings | Slic3r |
| PRUSA MK3 | Layer Height : 0.1mm, 0.2mm / Raft : OK / Brim : NO / Support : NO |
| Ender Slicing Settings | Simplify 3D |
| Extuder | Nozzle Diameter : 0.4mm / Retraction Distance : 4.6~5mm |
| Layer Settings | Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2 |
| First Layer Settings | First Layer Height : 120% / First Layer Width : 100% / First Layer Speed : 50% |
| Infill | Interlor Fill Percentage : 10% / Outline Overlap : 45% |
| Additions | Raft : OK / Brim : NO / Support : NO |
| CR-10S Pro Slicing Settings | Cura |
| Quality | Layer Height : 0.1mm, 0.2mm / Line Width : 0.4mm |
| Shell | Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6 |
| Infill | Infill Density : 20% / Patten : Grid |
| Material | Flow : 100% / Retraction Distance : 5.2mm |
| Build Plate Adhesion | Raft / Raft Extra Margin : 3mm / Raft Air Gap : 0.22~24mm |
