Foldable Robot - Roberto

$ 3.99

Designer

AUTOBOTO

This time, I made the villain Roberto, who appeared in Futurama, as a folding fan art. Now Bender has a friend.

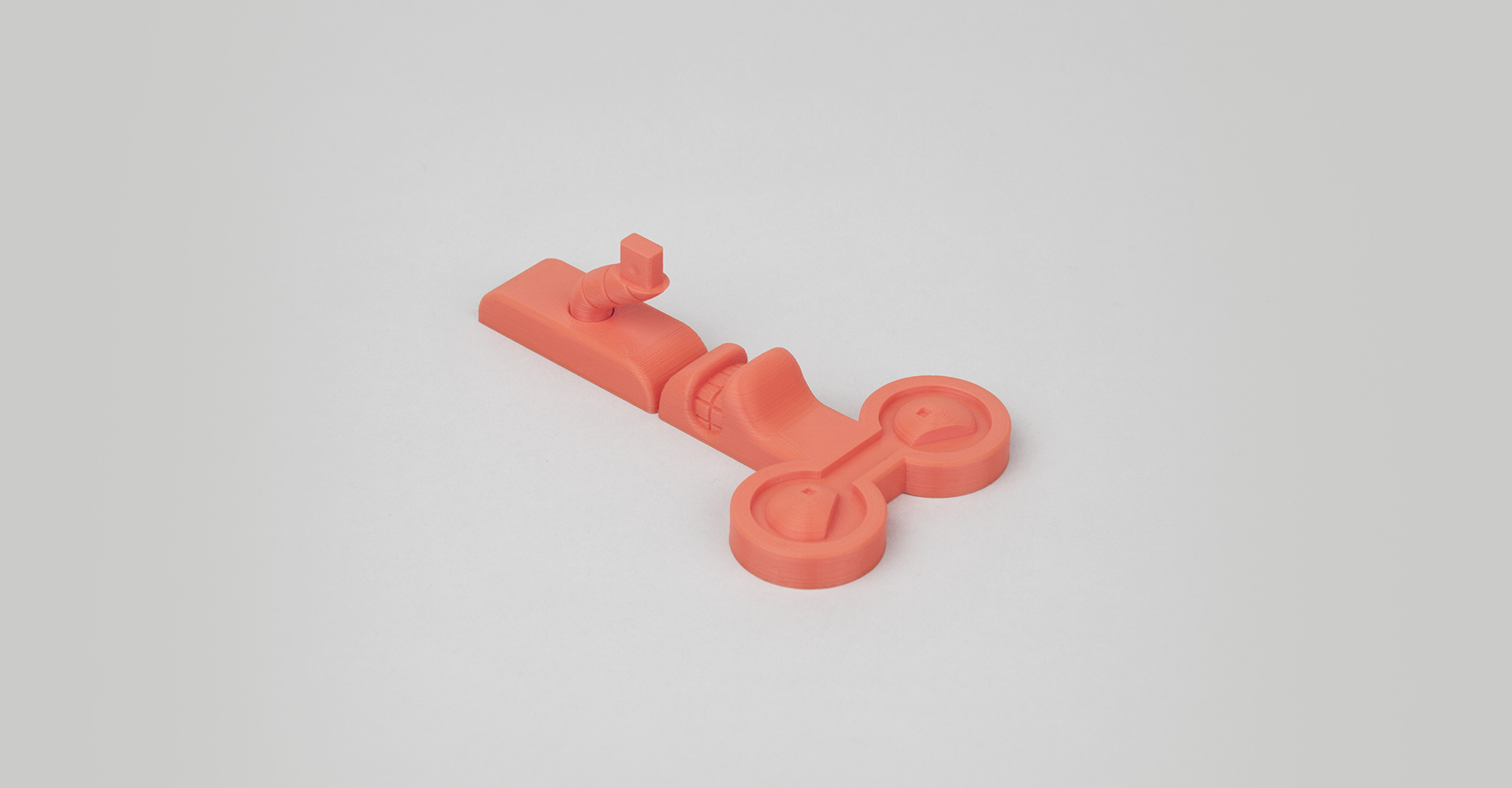

Because it is a uniquely shaped robot, it was inevitably designed to print its head separately. Unfortunately I can't print at once, but instead I can add moving structures to this head, so I designed the head to tilt. This is because the printing structure at one Print-in-place is difficult to add motion.

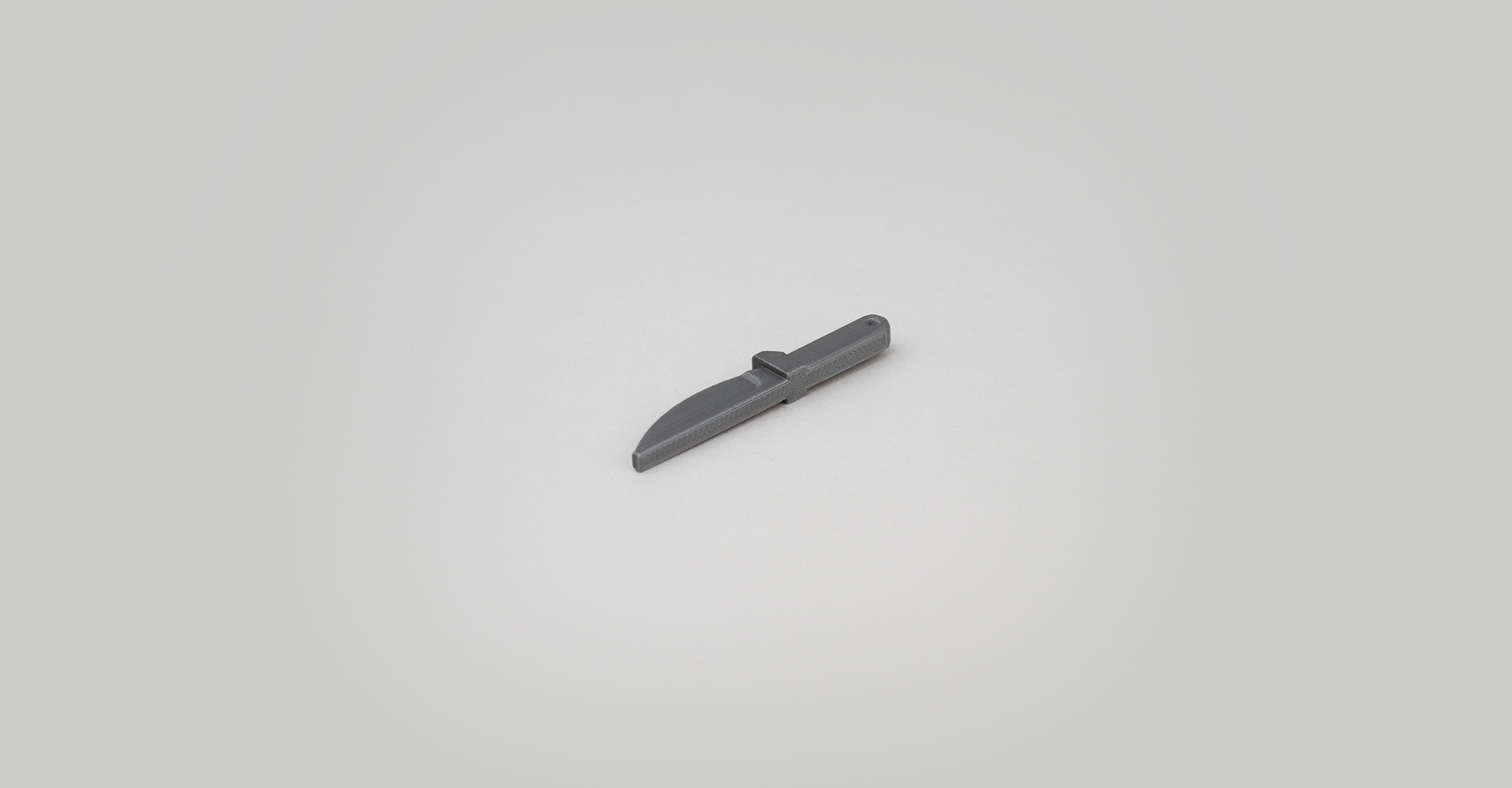

One of the great features of this robot is its ability to rotate its waist, allowing for a more dynamic posture. Of course, Roberto's main item is a knife. This knife is not designed at all sharply.

The arm is likely to fall off the bed / plate during printing. If the robot's arms fall off during printing, it will shake and the print will be destroyed. If your bed / plate adhesion is weak, please use Raft.

The folding order is as follows:
1. Turn the pin on the front plate of the robot's body to pop it out, and then insert it into the back plate to join the body's front and back plates first.
2. Fit the torso that combines this front and back plates to the lower body.
3. If both arms are inserted one by one, the body is finished.
4. The head is completed by turning the front pin to pop it out and inserting this pin into the hole in the rear head.
5. Combine neck and torso
6. Fix the loose part with adhesive.

Print and folding with prusa
Print and folding with Ender 3 pro

When expanded, size = X 129mm, Y 85mm, Z 66mm After folding X 98mm, Y 60mm, Z 145mm

PRUSA Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 2.4~2.6mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 100% / First Layer Width : 100% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 35%
Additions Raft : OK / Brim : NO / Support : NO
PRUSA Slicing Settings Slic3r
PRUSA MK3 Layer Height : 0.1mm, 0.2mm / Raft : OK / Brim : NO / Support : NO
Ender Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 4.6~5mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 120% / First Layer Width : 100% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 40%
Additions Raft : OK / Brim : NO / Support : NO
CR-10S Pro Slicing Settings Cura
Quality Layer Height : 0.1mm, 0.2mm / Line Width : 0.4mm
Shell Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6
Infill Infill Density : 20% / Patten : Grid
Material Flow : 100% / Retraction Distance : 5.2mm
Build Plate Adhesion Raft / Raft Extra Margin : 3mm / Raft Air Gap : 0.3~0.32mm
