I previously designed Marvin as a Foldable robot in the classic SF TV series
Download TV series Marvin ➪

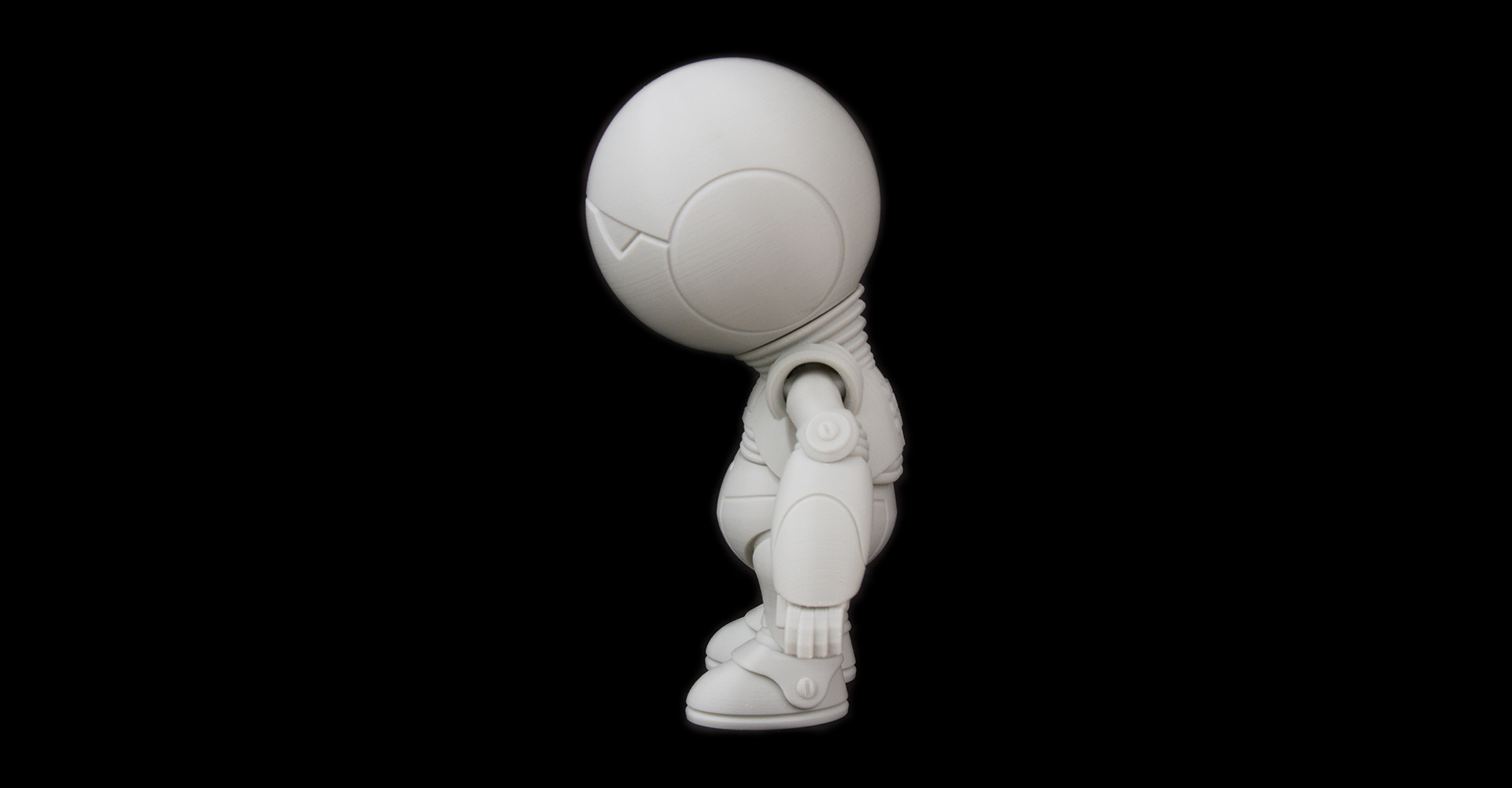

This design was loved by 3D printing users. So this time, I designed the 2005 movie version design by foldable it.
The feature of this movie version design is that the head is too large, which makes it difficult to move freely. However, after many modifications, I succeeded in linking everything together. The head can rotate and the arm can move in multiple directions. However, the legs do not move to support the large head.
How to fold is as follows.
1. Move your head forward.
2. Place one upper body between the head and lower body.
At this time, it should be fitted to the frame connecting the head and the lower body.
3. Fit the other half of the upper body.
※ The arm may fall off the bed during printing, so it is recommended to pay attention to the adhesion of the bed or use a Raft. ※
Print with ender 3 pro and How to fold ➪
When expanded, size = X 114mm, Y 91mm, Z 56mm After folding X 120mm, Y 58mm, Z 120mm
| PRUSA Slicing Settings | Simplify 3D |
|---|---|
| Extuder | Nozzle Diameter : 0.4mm / Retraction Distance : 2.4mm |
| Layer Settings | Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2 |
| First Layer Settings | First Layer Height : 100% / First Layer Width : 100% / First Layer Speed : 80% |
| Infill | Interlor Fill Percentage : 15% / Outline Overlap : 30% |
| Additions | Raft : OK / Brim : NO / Support : NO |
| PRUSA Slicing Settings | Slic3r |
| PRUSA MK3 | Layer Height : 0.1mm, 0.2mm / Raft : OK / Brim : NO / Support : NO |
| Ender Slicing Settings | Simplify 3D |
| Extuder | Nozzle Diameter : 0.4mm / Retraction Distance : 4.2mm |
| Layer Settings | Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2 |
| First Layer Settings | First Layer Height : 120% / First Layer Width : 150% / First Layer Speed : 50% |
| Infill | Interlor Fill Percentage : 15% / Outline Overlap : 30~40% |
| Additions | Raft : OK / Brim : NO / Support : NO |
