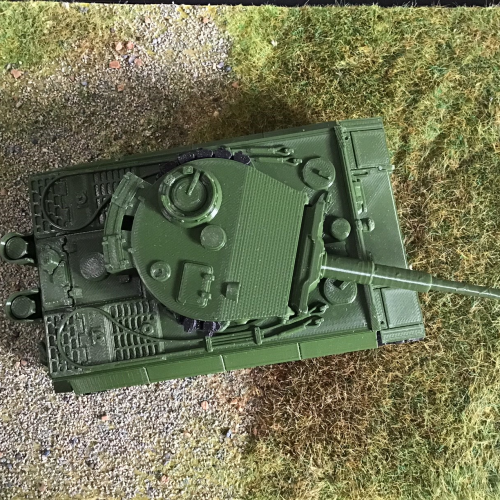

This time, I finally challenged the tank. Yes, it is a foldable tank. The first selected model was the German Tiger-1 late model, well known in World War II.

Since almost every detail has been expressed, just looking at it will give you great pleasure.
As with other designs, this design has a lot of moving parts, especially wheels, so it is necessary to adjust the height of the nozzle well so that the gaps do not stick when printing the first layer.
In particular, the most important thing to note when printing this design is to print the Track / caterpillar. Pay attention to the print of the first layer so that the Track / caterpillars do not stick together.

The process of folding this design is as follows.
1. Fold the front part first. Since the living hinge is used, fold it carefully and slowly so as not to break it.
2. Insert the side part with wheels on the front part and the top part. Check and fit each protrusion and hole.
3. Insert the rest of the side part. The body has been completed.
4. Connect the two tracks / caterpillars first.
5. Wind the track / caterpillar around the wheel. There is a change in shape, and the non-simple side is the outside of the track / caterpillar.
6. Fit the start and end parts of the track / caterpillar.
7. Put the cannon on the turret.
8. Glue the small parts on the back.

※ If the track is loose, try the following method.
1. If you increase the material flow in all slicers, more material will be discharged and the volume of the part will increase. This effect reduces the gap between the parts so that the tracks do not come loose or fall out.
2. And in case of using additional Cura, use Outer wall inset or Skin overlap percentage option.

Print with prusa and How to fold
Print with ender 3 and How to fold
Print with tronxy D01 and How to fold
Print with Ultimaker3 and How to fold
Print with Anet ET5 126% scale and How to fold
Printing review from Greg
Printing review from Patrick Bailey of iqless

1 : 48 scale
When expanded, size = X 134mm, Y 178mm, Z 112mm After folding X 82mm, Y 185mm, Z 62mm

PRUSA Slicing Settings Simplify 3D
Extruder Nozzle Diameter : 0.4mm / Retraction Distance : 2.4mm
Layer Settings Layer Height : 0.1mm or 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 100% / First Layer Width : 100% / First Layer Speed : 80%
Infill Interior Fill Percentage : 15% / Outline Overlap : 30%
Additions Raft : NO / Brim : NO / Support : NO
PRUSA Slicing Settings Prusa Slicer
PRUSA MK3 Layer Height : 0.1mm or 0.2mm / Raft : NO / Brim : NO / Support : NO
Ender Slicing Settings Simplify 3D
Extruder Nozzle Diameter : 0.4mm / Retraction Distance : 5.4mm
Layer Settings Layer Height : 0.1mm or 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 120% / First Layer Width : 150% / First Layer Speed : 50%
Infill Interior Fill Percentage : 15% / Outline Overlap : 30~40%
Additions Raft : NO / Brim : NO / Support : NO
Ender Slicing Settings Cura
Quality Layer Height : 0.1mm or 0.2mm / Line Width : 0.4mm
Shell Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6
Infill Infill Density : 20% / Pattern : Grid
Material Flow : 100% / Retraction Distance : 5.4mm
Additions Raft : NO / Brim : NO / Support : NO
CR-10S Pro Slicing Settings Cura
Quality Layer Height : 0.1mm, 0.2mm / Line Width : 0.4mm
Shell Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6
Infill Infill Density : 20% / Pattern : Grid
Material Flow : 100% / Retraction Distance : 5.4mm
Additions Raft : NO / Brim : NO / Support : NO
File
File 43.6 MB
Release Date
2020-04-23
Average Time
[0.1mm] Hull : 28h
[0.1mm] Turret : 2h 30m
[0.1mm] Caterpillar : 7h
  • 4051195234443
    2023-05-03 13:05:53

    Hello, my printer is P1P. Why is the track result I printed like this? Can you send me the slicing settings?

    astrumecki5270
    2023-05-07 21:48:34

    i had the same problem with my Bambu X1. Fixed by using the extrusion multiplier solution below on my Prusa, although i had a hell of a time connecting the links afterward.

  • mrtom_ak
    2023-03-13 00:44:26

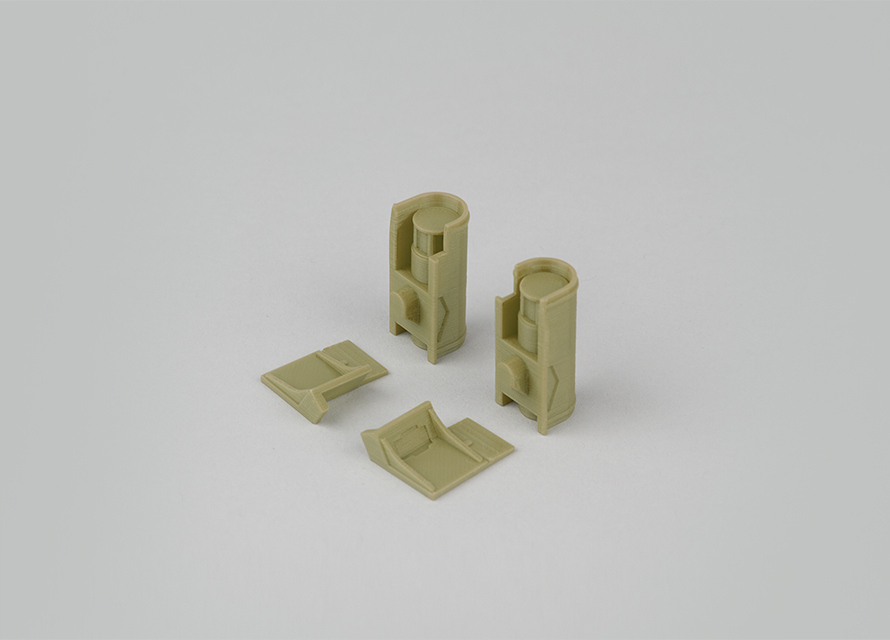

    I'm having a heck of a time printing the turret. I get layer-shifts on the thin upper-portion on my prusa mk3s+. I've replaced bearings, belt tensioning... and the rest that has to do with X/Y - plus slowed that portion of the print down to 35. Still no dice. Any ideas?

    mrtom_ak
    2023-03-21 23:35:41

    I figured it out! The issue was the nozzle temp when printing the thin turret section. To solve, I printed two at one time (thus the filament that just put down had time to cool between layers). Also, I cooled the print head to be toward the lower-end of filament's specs. Great model!

  • hreyes702789
    2023-02-27 05:39:46

    I am getting a significant layer shift at the same exact location every single time. I have spent a great deal of filament every time it happens. The shift is so severe that the model is completely useless. There is also the issue with the loose wheels that others have complained about, and I can deal with that. The main issue is the shift, which I would like some help with. Please take a look at the attached pictures. with. My slicer is Cura 5.2.2 with a .6 nozzle running at 200/60C for PLA plus, and the recommended settings listed on this site. My Printer is an Elegoo Neptune 3 Plus. No issues with layer shifting with other objects.

    fab365
    2023-03-27 17:49:27

    In my guess, one of the wheels falls off the bed at that layer, and it seems to be displaced by the nozzle because it bumps into the nozzle.
    Try to increase the adhesion of the bed (RAFT, apply Hair Gel ...).
    Thank you~

  • dukezillo
    2022-05-03 23:57:15

    im having trouble printing the track wheels, always fails, the printer is an ender 3 max, running klipper and superslicer :/

    fab365
    2022-12-12 18:06:15

    This is a problem caused by poor adhesion of the bed. Please find a way to increase the adhesion of the bed.
    We apply heavy-duty hair gel on the bed.
    https://fab365.net/pages/14013138306/not_sticking_to_bed
    https://www.shop.fab365.net/storeetc
    Other than that, there are a lot of different ways to apply it, so please try it out. If the wheels still fall off the bed during printing, we recommend using a raft.
    Thank you~

  • darioadriancali5109
    2022-02-01 11:57:12

    Hi, nice to meet you. Well, to begin with I want to congratulate you for the work you do. They are really amazing and very clever. Too bad I can't say the same when it comes to printing them... Until now I only printed this Tiger tank and the truth was that it was disastrous for me. First of all, I was never able to fold the front part of the tank like in the video and it ended up breaking in the hinge part. I have broken wheels, the caterpillars almost impossible to print and at the time of placing them I could never place them because they were not placed as easily as in the video. With much anger and sadness I am going to give up on this tank. A shame... it's not easy at all as shown in the video. I hope to print simpler things... greetings.

    fab365
    2022-12-27 14:56:30

    I don't have a picture of the printing, so I can't know the exact cause, but in most cases, the parts are often stuck together.
    If this design does not fold, please check the following link.

    https://fab365.net/pages/14013138303/parts_not_move

    We hope these print tips will help you.
    Thank you~

  • nhchau5815
    2021-05-22 15:13:27

    I bought the Fab365 T34-85 and have printed it with scale 1:1. What scale of Tiger-I late tank should I print so that ratio of sizes of the two models is the same as the real-life ratio? In real-life, the two tanks have similar length (6m68 and 6m31) but in your models, the Tiger-I late seems to be larger than the T34-85. Thanks for your advice.

    fab365
    2021-08-08 20:52:28

    We checked size with comparison.
    It's not very accurate, but I've put some data together and made it as 1:48 scale as possible.

  • palko_138502
    2021-04-10 21:04:36

    Awesome model
    printed everything only have one problem
    the tracks are falling apart

    Used the mk3 profile from this site sadly no effect
    used different orientations no effect
    checked the default extrusion and its .4

    Edit:
    I fixed it by putting the extrusion multiplier on 1.1

    fab365
    2021-04-12 16:50:19

    @palko_138502 We are happy that the output was successful.

    If there is any problem with the printing, please let us know the problem with the picture at help@fab365.net.

    Please also refer to the tips page below.
    https://fab365.net/pages/14013138303/parts_not_move

  • VIRUS
    2020-12-27 23:49:56

    Слишком свободные звенья у гусениц как настроить в Cure

    fab365
    2020-12-28 10:58:39

    @VIRUS 1) Use Line Width: 0.4mm
    2) Use Layer Height: 0.1mm
    3) If there is a problem even when applying 1) 2) then use Flow: 120%

    VIRUS
    2020-12-30 11:11:52

    Большое спасибо настройки помогли только гусеницы слишком в натяжение были пришлось добавить одно звено чтоб немного посвободнее было.

  • Berserk
    2020-11-25 07:35:37

    How you print the turret?, I have a tronxy xy 2 and is dificult to make small cylinder type parts.

  • rogaldorn
    2020-11-22 07:10:32

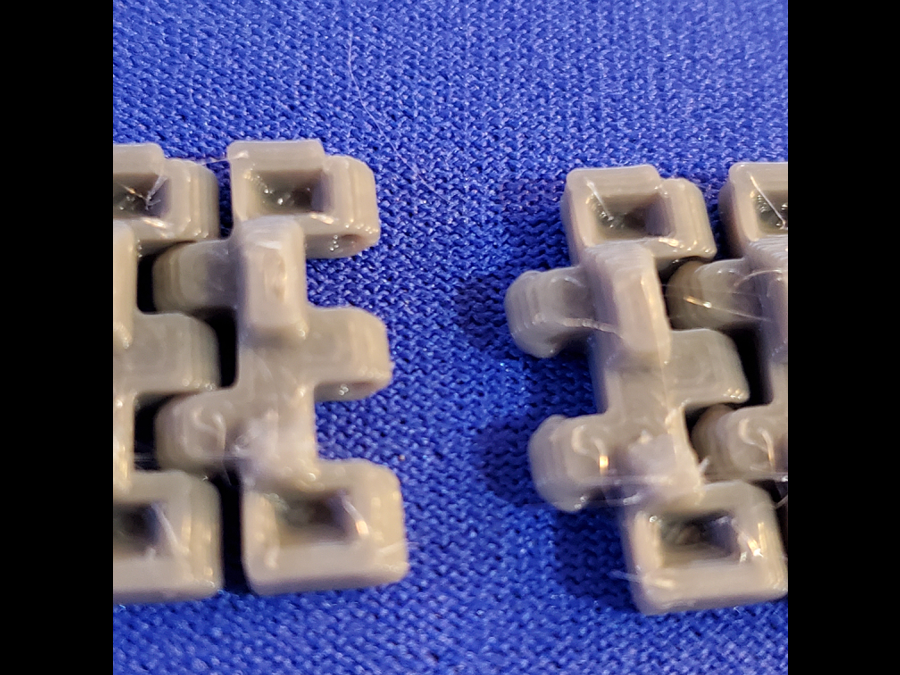

    I'm having trouble with the treads. The links connecting them are too weak, they disintegrate when I try to put them on the tank.

    My printer is a Prusa i3 mk3.

    fab365
    2020-11-22 09:59:54

    Hi rogaldorn.
    Have you seen fab365's print tips page?
    https://fab365.net/print-tips

    Or could you please post a picture? If you upload a picture, we can suggest a more accurate solution.

    rogaldorn
    2020-11-22 23:37:08

    Some parts of the tack are pretty good and require quite a bit of effort to take apart, while others seem to just fall apart from each other. If I had to guess, I would say there could be more material in the interlocking links of the track. Maybe under extrusion? The other parts, like the Hull and Turret print fine.

    I did look through the tips and tricks. I believe my bed is as level as I can make it. I've done the nylok mod and my bed variance is fairly low. The bed adhesion is good, nothing is lifting during the print and it takes a little effort to remove the print when done.

    I did notice I had 'detect thin walls' checked in my print settings. I'll uncheck it and try printing a single track, and also try 90 degree orientation from the default to see if that helps.

    My filament is SUNLU Gray (X002CWQ013), 210C/60C. 0.4mm Nozzle, 0.2mm layer height.

    rogaldorn
    2020-11-23 05:29:06

    That seemed to fix my problem. I aligned the tracks going in the X-axis on the build plate instead of in the Y. They fit great and thanks for such a great model. Do you have any plans to expand to other tank models? I'd love to see more, like the Panther, Sherman, Wolverine, Churchill, SU-85s, IS-3, KV-2, Etc etc.

    fab365
    2020-11-23 09:37:17

    We are happy to have your problem resolved.
    Put your tank on request and get people's vote.
    https://fab365.net/requests

    And... the M4 Sherman is coming.

Notice !

Feel free to talk about your product.
Comments that are irrelevant to the topic may be deleted
