Mask Breathing Downward
FREE
You can download 1 free item per Free item - download ticket.
GOODesign
GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf. This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.
Research has shown that corona-19, which infects the respiratory tract through droplets, unexpectedly coughs or breathes in positively infected people in two directions (upper or forward).
1. Spread from the front when walking or running ➪
2. Spread from the top beyond the partition of the store ➪

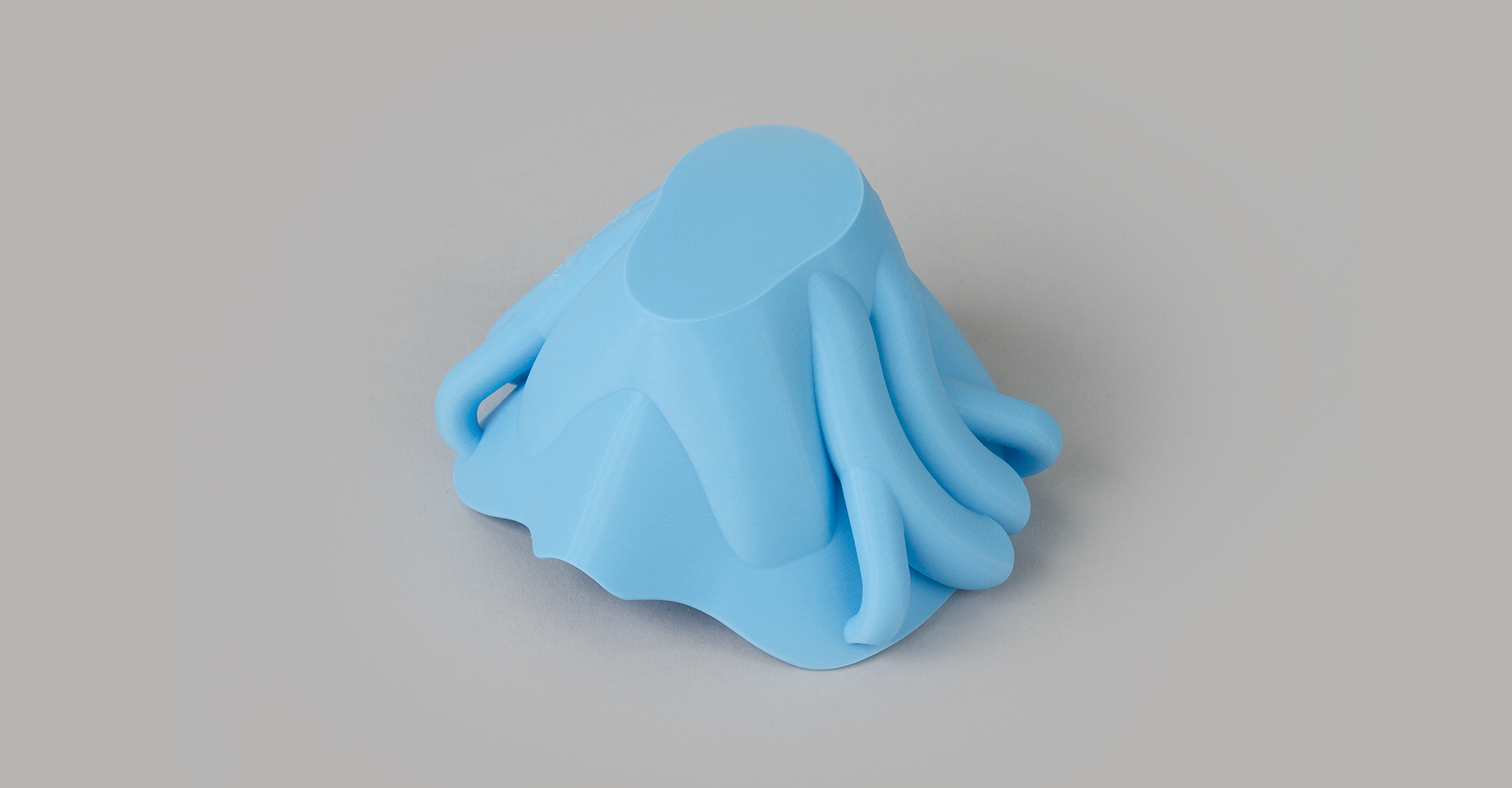

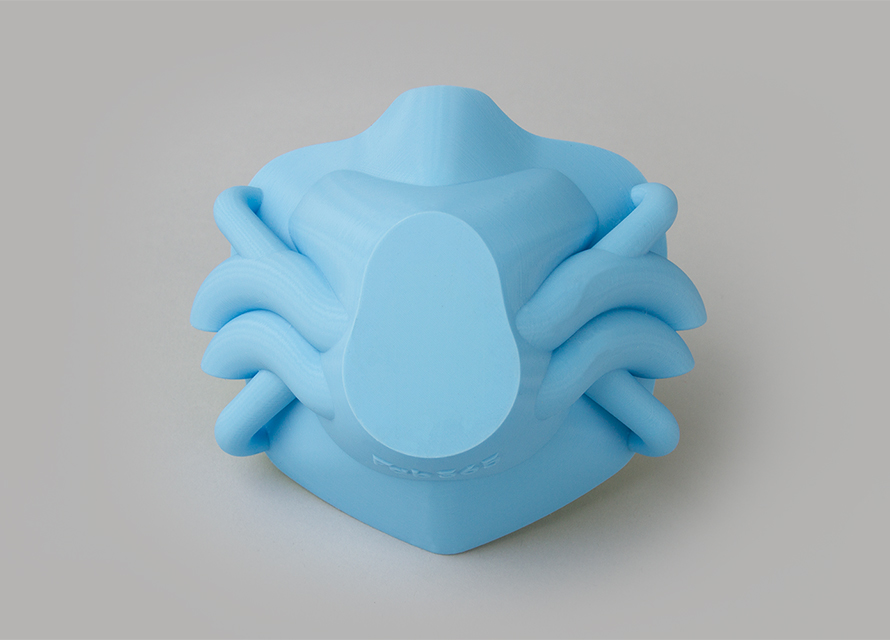

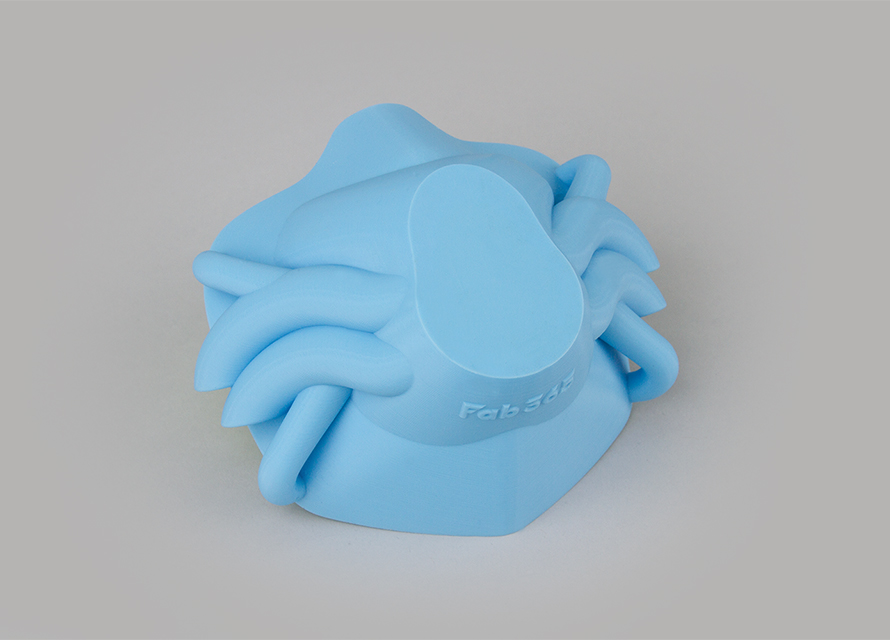

In order to prevent this infection path, I designed a mask with an intake downward.
Here's how to use it.

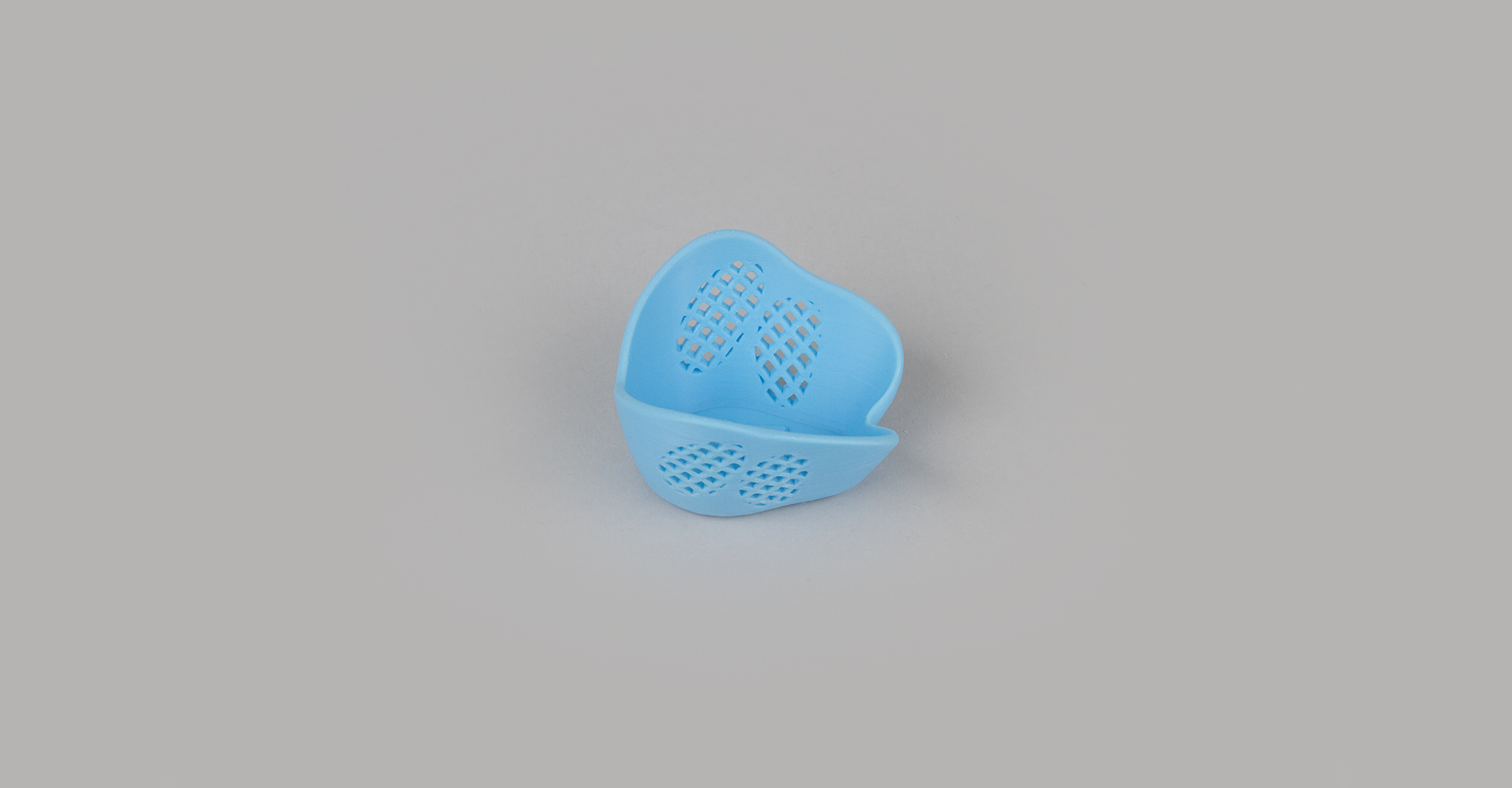

1. Cut the filter to approximately 10 cm x 6 cm, place it properly inside, and secure the filter with the filter holder. It is said that if the filter is not ready, a cloth or tissue will help a little.

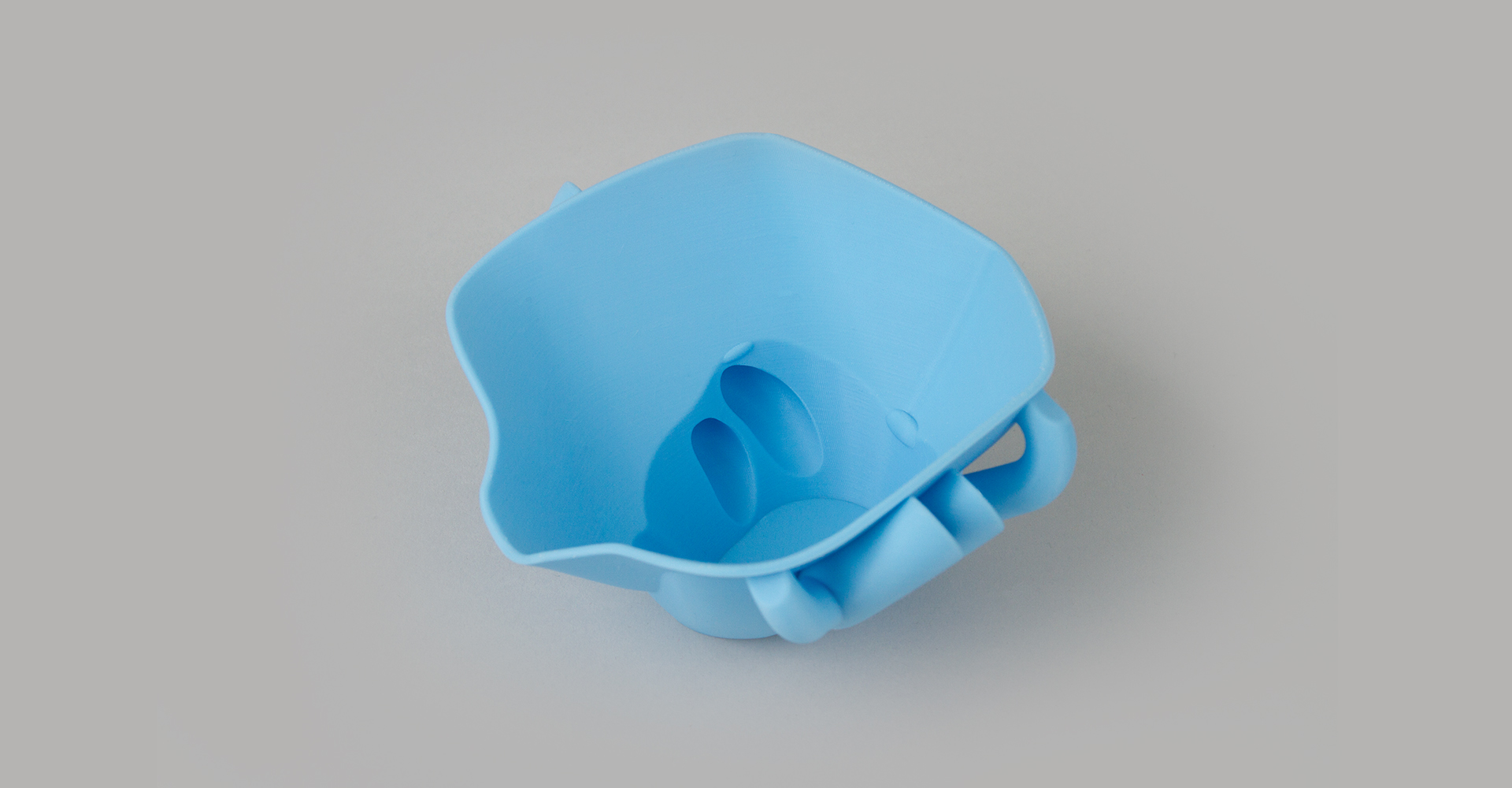

2. If there is a gap between the face and the mask because the nose part of the mask does not touch the face, please attach a foam seal tape to close the gap.
3. With the appropriate strap, tie the strap around the pores above and below the pores to fit your face size.
How to use ➪
This mask cannot completely block the virus. Therefore, this mask can be helpful as a temporary measure in case of emergency without a proven mask.
I hope the virus will end as soon as possible, and the day will come as soon as many people can live without masks.
size = X 135mm, Y 119mm, Z 72mm
| Additions | Raft : OK / Brim : NO / Support : NO |
|---|---|
| Infill | Interlor Fill Percentage : 15% / Outline Overlap : 30~40% |
| First Layer Settings | First Layer Height : 120% / First Layer Width : 150% / First Layer Speed : 50% |
| Layer Settings | Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2 |
| Extuder | Nozzle Diameter : 0.4mm / Retraction Distance : 4.2mm |
| Ender Slicing Settings | Simplify 3D |
| PRUSA MK3 | Layer Height : 0.1mm, 0.2mm / Raft : OK / Brim : NO / Support : NO |
| PRUSA Slicing Settings | Simplify 3D |
| Extuder | Nozzle Diameter : 0.4mm / Retraction Distance : 2.4mm |
| Layer Settings | Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2 |
| First Layer Settings | First Layer Height : 100% / First Layer Width : 100% / First Layer Speed : 80% |
| Infill | Interlor Fill Percentage : 15% / Outline Overlap : 30% |
| Additions | Raft : OK / Brim : NO / Support : NO |
| PRUSA Slicing Settings | Slic3r |
Notice !
Feel free to talk about your product.
Comments that are irrelevant to the topic may be deleted
did you make it? please write making story !
Write Review
How does this work exactly?
Oh wait, NM, masks DON'T actually work. My bad.
Is this supposed to be printed in TPU or another flexible filament?
Hi iconeo.
TPU or other filaments are possible due to the structure of the model,
but printing may be difficult depending on the properties of the filament.
Hi! What is the recommended filter material for this mask?
Hi Sisko4.
A filter/cloth made of the same material as a general mask is recommended.
