Space X Crew Dragon

$ 4.79

Designer

GOODesign

GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf. This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.

Elon Musk is a true pioneer of this era. He broke the existing framework and it has gained the support of many people. This is a fresh shock to many who firmly believe in the existing order. He accelerated the popularization of electric vehicles, spread progressive designs to the public through cyber trucks, and finally began a full-fledged private space project.

Celebrating the launch of his successful spacecraft this time, I designed a dragon capsule and trunk.
This design is not foldable, but the capsules and trunk are fully structured and functional. The details were also made as much as possible. Its features are:

1. The hatch can be opened and closed.
2. The trunk can be connected.
3. You can connect by moving the umbilical connection.

Here's how to assemble this SpaceX Dragon capsule and trunk.

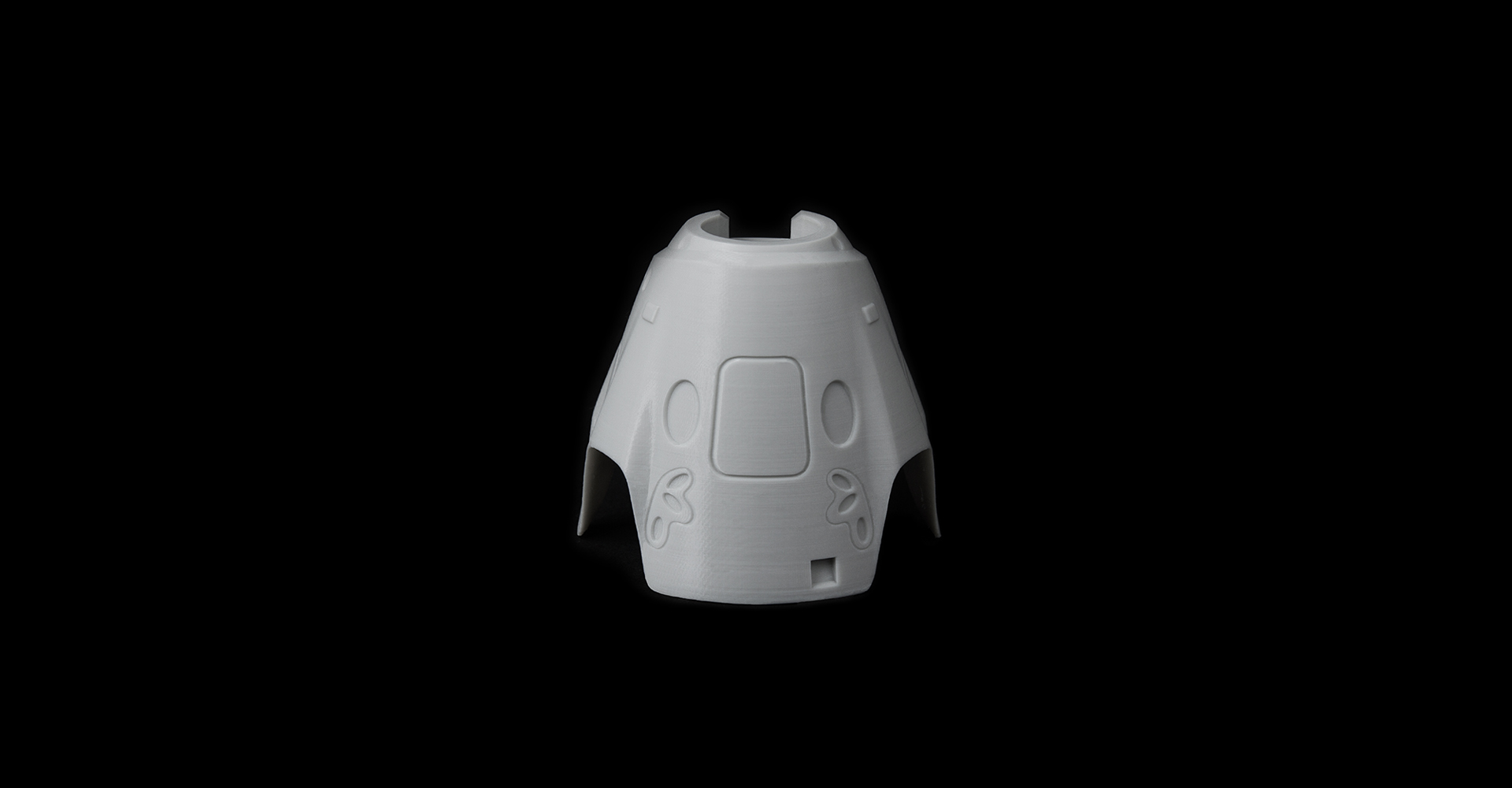

1. Insert the inner part of the capsule into the outer part. At this point, pay attention to the direction of the hatch.
2. Install the hatch. At this time, pay attention to the direction.
3. The trunk, first rotates the umbilical connection outward.
4. Rotate the bottom part.
5. Combine the holes in the bottom of the capsule with the projections on the trunk according to the direction.
6. Rotate and connect the umbilical connection.
7. Capsule and trunk are detachable.

Printing on Prusa and building process

I plan to build a Falcon 9 rocket in the near future. Please look forward to it.
I look forward to an era where space travel is possible as soon as possible.

Scale 1 : 66
Size, when all parts are fitted X 76mm, Y 76mm, Z 123mm

Additions Raft : OK / Brim : NO / Support : NO
Infill Interlor Fill Percentage : 15% / Outline Overlap : 30~40%
First Layer Settings First Layer Height : 120% / First Layer Width : 150% / First Layer Speed : 50%
Layer Settings First Layer Height : 120% / First Layer Width : 150% / First Layer Speed : 50%
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 4.2mm
Ender Slicing Settings Simplify 3D
PRUSA MK3 Layer Height : 0.1mm, 0.2mm / Raft : OK / Brim : NO / Support : NO
PRUSA Slicing Settings Slic3r
Additions Raft : OK / Brim : NO / Support : NO
Infill Interlor Fill Percentage : 15% / Outline Overlap : 30%
First Layer Settings First Layer Height : 100% / First Layer Width : 100% / First Layer Speed : 80%
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 2.4mm
PRUSA Slicing Settings Simplify 3D
File
File 53.3 MB
Release Date
2020-06-26
Average Time
[0.1mm] Trunk : 7h 30m
[0.1mm] Capsule Inner : 6h
[0.1mm] Capsule Outer : 4h
[0.1mm] Hatch Cover : 1h
  • neilgov7118
    2022-11-19 05:29:11

    Hi, can anyone share slicer settings for Cura?
    I'm printing with an Ender 3 V2 .

    Much appreciated.

  • JamesF
    2022-07-12 21:43:02

    Awesome model, how do I go about making this and the Falcon 9 to 1:110 to match the Lego Saturn V model?

  • jfayre6596
    2022-06-24 07:22:07

    Hello,
    Awesome model! I'm totally blind, so I need a bit of extra description regarding assembly.
    I'm having trouble figuring out where the hatch cover goes. I'm wondering if it may not have printed correctly.
    I fit the inner capsule into the outer shell. I assume I did it correctly, since it only appeared to fit one way. The hinged bit at the bottom of the inner capsule fits into a slot in the bottom of the outer one. I assume this hinged bit is the umbilical.
    I'm in the process of printing the trunk now. Can someone describe where the hatch cover is supposed to go? I assume it goes on the capsule, and not the trunk.
    If the hatch cover is supposed to have moving parts, mine doesn't.
    Thanks for any assistance.

  • e2pilot6665
    2022-05-22 11:13:15

    Had a lot of fun with this model. Printed on an Elegoo Neptune 2S, used white, black, metalic blue, metalic gray, and silver filament to print. I made a couple of small changes, I split the trunk to print half black as the actual dragon is, and printed the inner section in silver and letalic gray. Great model, thanks Fab365.

    fab365
    2022-05-26 15:29:06

    Your printing is awesome!!!
    For Elegoo Neptune 2S 3D printer user, your review will be very helpful.
    Thank you for printing and sharing your photo!

  • daveyk0214704
    2021-12-23 22:27:57

    Terrible first print of the inner part. Since there are no instructions that came with the files, I made some bad assumptions about orientation and support methods. A video is not setup instructions. I'm not sure, I will bother with the rest.....

  • SnowEagle
    2021-11-07 21:58:15

    Would you redesign the Trunk so it could be printed in two colors? Half white and Half black.

    fab365
    2022-05-26 15:30:49

    Could you ask or vote on my request page please?
    https://fab365.net/requests
    Thank you~

  • gdownton4394
    2021-05-28 14:01:10

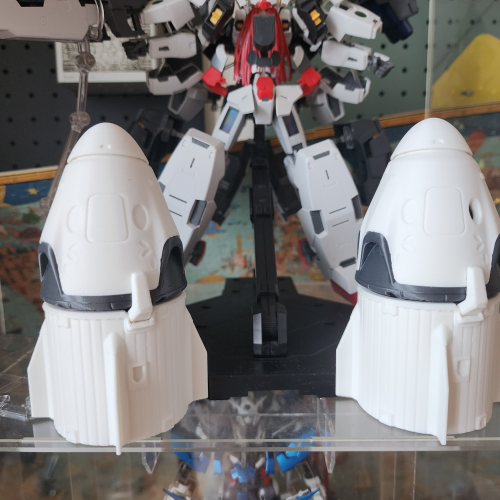

    Great model. Printed first time without issue on MK3S+. Looking forward to printing the Falcon 9 as well.

    fab365
    2022-05-26 15:30:16

    We are happy that you printed very well.
    We look forward to your Falcon 9 print and review.
    Thank you~

  • jiveasshonky3701
    2021-04-02 08:52:39

    This file looks amazing! I just started printing now. I figured I would let you know that I am actually printing this as a gift to someone who is actually going up on the next flight! It's the first all civilian flight into space. The flight is called Inspiration 4.

    fab365
    2021-04-08 16:37:51

    This comment made our day!😍 We're so happy that you will present our model to someone who's actually going on a space trip! We hope We do hope you will enjoy working on the Space X Crew Dragon printing and thank you for leaving such a awesome comment.

  • Huntermountain
    2021-02-14 07:11:15

    I really love the design. I made a point of printing it in PEtG, as that's what I always use. It took some finetuning, but I'm really chuffed with the outcome. What a great model!!

    fab365
    2021-02-14 17:36:13

    @Huntermountain
    Thank you very much for your kind words! We hope you enjoyed working on the project and we also welcome you to share your result in https://fab365.net/items/197#review.
    If you have any questions or opinions, please do not hesitate to contact us at help@fab365.net

  • slinky2000_us
    2021-01-23 22:39:56

    I am having issues printing the hatch cover, the inside connector keeps moving. I have a Prusa MK3S. Any ideas would be appreciative.

    fab365
    2021-01-25 14:01:02

    @slinky2000_us
    The bed adhesion is weak, so it seems to have fallen during printing.
    Strengthen bed adhesion(glue stick) or use raft.
    https://fab365.net/pages/14013138302/moving_parts_fall

    VpX
    2022-08-17 20:53:11

    Hi, I am facing the same issue, I am using a Prusa PEI sheet, cleaned with soap and IPA. Bed adhesion doesn't seem to be the cause of this problem.
    I tried thee times, even with glue stick but it did not help. I think it happens when printing the bridge of the center part.
    I am now trying with a support for this area.
