Foldable tank T34-85

$ 5.49

Designer

GOODesign

GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf.   This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.

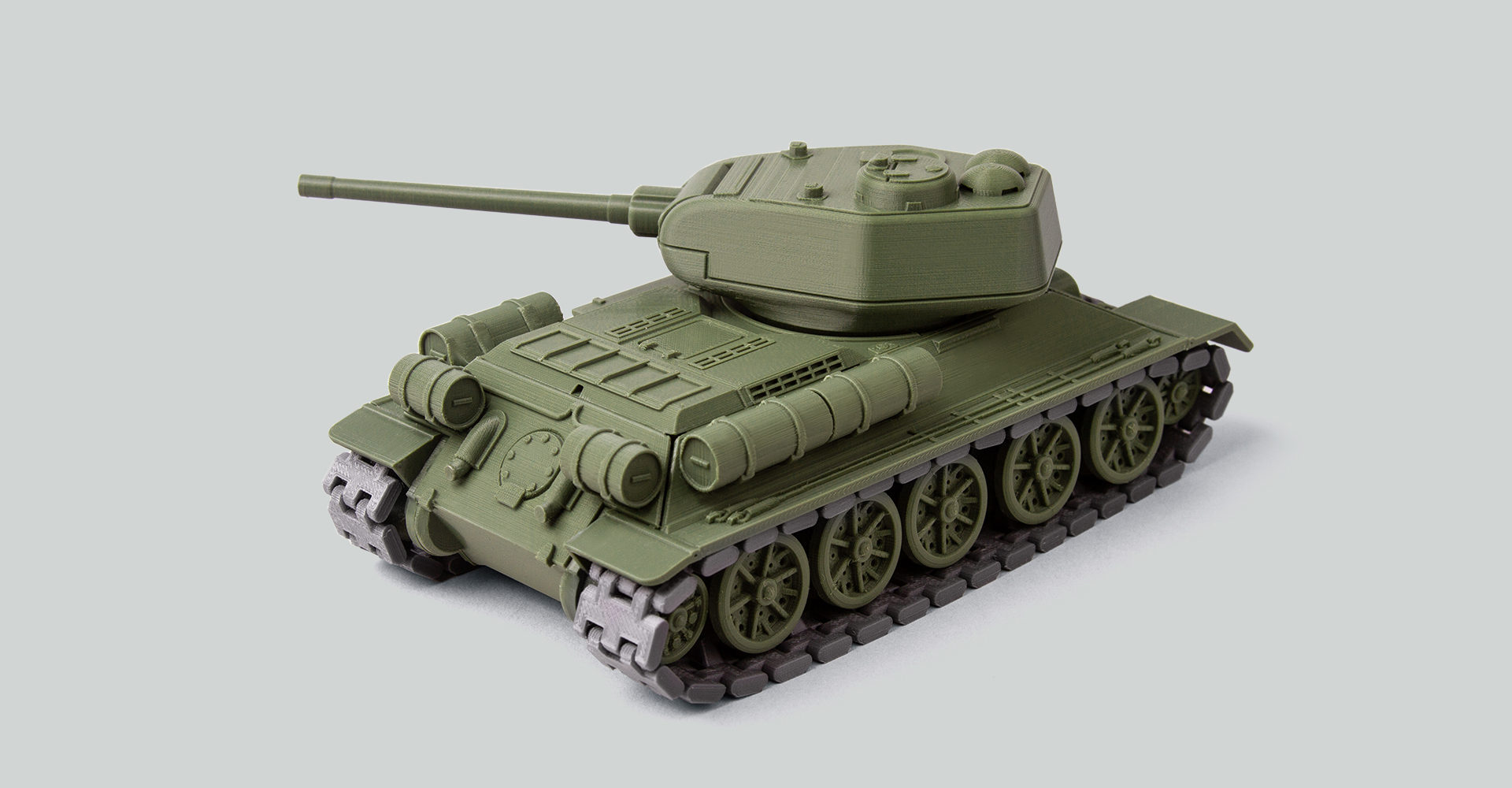

With the request and high vote from FAB365.net's request page, this time, I created a Russian folding T34-85 tank that was renowned in World War II.
T-34-85 Tank request
This tank was the main Russian tank of the time when Germany created the Tiger tank to fight against it during World War II.

When designing this, I planned to use the structure of the folding Tiger tank I made earlier. However, since the T34-85 tank is smaller in size than the previously created Tiger tank, the structure of the folding Tiger tank cannot be used and the new structure is applied. (It always seems like that.)

The structure of two wheels on one wheel axle was also difficult to fit in a small size. Making the caterpillar to engage the wheels of the rear wheel structure was to create a new caterpillar that was completely different from the one used for the foldable Tiger tank previously.

The folding process is as follows.
1. Fit the front and bottom parts of the body.
2. Insert the part with wheels on the left side to the left side of the body.
3. Insert the part with wheels on the right side to the right side of the body.
4. Connect the tracks with a long one. Prepare two sets of this.
5. Put the prepared tracks on one of the wheels, align it with the concave groove of the rear wheel, and then insert and connect the beginning and end of the track. Connect the track on the other side in the same way.
6. Put the gun on the turret.
7. Attach the cartridge with adhesive.

Watch the following video for the folding process.

Print on prusa and folding process video
Print on CR10s and folding process video
Print on Ender 3 pro and folding process video
Print on Twotrees Bluer and folding process video

The collection of foldable Tiger tanks and foldable T34-85 tanks allows you to create famous battle scenes such as the Battle of Kursk and the Bagration Battle.

1 : 48 scale
When expanded, size = X 110mm, Y 139mm, Z 89mm After folding X 69mm, Y 162mm, Z 57mm
#t34 #t34tank #soviettank

PRUSA Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 2.4~2.6mm or Retraction Distance : 1.2mm, Retraction Vertical Lift : 0.6mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 100% / First Layer Width : 90% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 35%
Additions Raft : OK / Brim : NO / Support : NO
PRUSA Slicing Settings PrusaSlicer
PRUSA MK3 Layer Height : 0.1mm, 0.2mm / Raft, Skirt : OK / Brim : NO / Support : NO
Ender Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 5.2mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 100% / First Layer Width : 90% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 50%
Additions Raft, Skirt : OK / Brim : NO / Support : NO
CR-10S Pro Slicing Settings Cura
Quality Layer Height : 0.1mm, 0.2mm / Line Width : 0.4mm
Shell Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6
Infill Infill Density : 20% / Patten : Grid
Material Flow : 100% / Retraction Distance : 5.2mm
Build Plate Adhesion Raft / Raft Extra Margin : 3mm / Raft Air Gap : 0.3~0.32mm
File
File 29.7 MB
Average Time
[0.1mm] T34-85 Hull : 22h
[0.1mm] T34-85 Turret : 1h 30m
[0.1mm] T34-85 Caterpillar : 5h
[0.1mm] T34-85 Hull Deco : 1h
[0.1mm] T34-85 Caterpillar Deco : 30m
