Newt Scamander's Suitcase

$ 2.99

Designer

GOODesign

GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf.   This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.

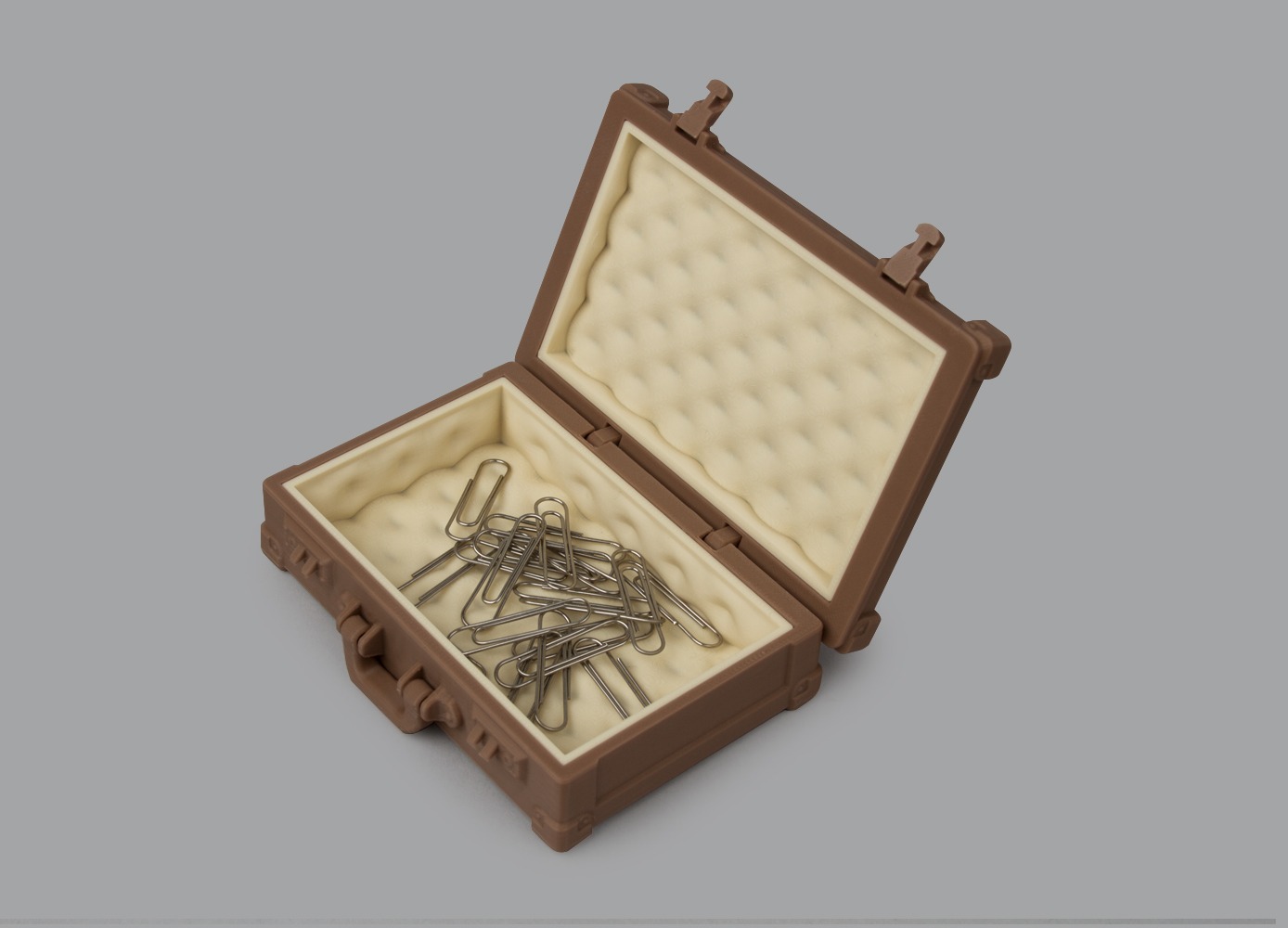

Newt Scamander's suitcase, the protagonist of the novel and movie "Fantastic Beasts and Where to Find Them", is a magic suitcase with a different dimension of space inside, and is an object that stimulates people's imagination. Inspired by this suitcase, I created a box for business cards and other desk clutter.

I hate the use of supports. However, this form has no choice but to be used. Instead, I made my own support to make it fall off easily. So don't use the support option in the slicer.

The design is made with the outside of the bag in the form of leather and two interiors with the texture of the fabric.
1. First, remove the support. Designed to fall well, it will fall off easily.
2. After closing the bag, press the hinge toward the bag cover to insert it.
3. It is completed by inserting the two inner parts respectively.

Think of movies and novels that expressed infinite imagination with this Suitcase~

Size, when all parts are fitted X 120mm, Y 96mm, Z 36mm

PRUSA Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 2.4mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 100% / First Layer Width : 100% / First Layer Speed : 80%
Infill Interlor Fill Percentage : 15% / Outline Overlap : 30~40%
Additions Raft : incase of low adhesion on bed / Brim : NO / Support : NO
PRUSA Slicing Settings Slic3r
PRUSA MK3 Layer Height : 0.1mm, 0.2mm / Raft : incase of low adhesion on bed / Brim : NO / Support : NO
Ender Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 4.2mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 120% / First Layer Width : 150% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 15% / Outline Overlap : 30~40%
Additions Raft : incase of low adhesion on bed / Brim : NO / Support : NO
File
File 14.7 MB
Recommend Print
Material Color
Average Time
[0.1mm] Body : 21h
[0.1mm] Inner Up : 4h
[0.1mm] Inner Down : 6h 15m
  • KNay Creality Ender-3 ProCura
    2020-09-11 23:58:20

    Raft is a terrible idea with this print. I printed for 25 hours only to have it fused to the raft. I can’t get it off. So disappointed! The print itself is beautiful

    fab365 Administrator
    2020-09-12 16:45:16

    If your bed adhesion is good, you don't need to use raft. And if you increase air gap, you can get rid of raft very easily. Please try again.

    fab365 Administrator
    2020-09-12 16:53:32

    Or you can download my settings from your profile after log in. You can find your profile from right upper corner of fab365.net website. Thank you~

    cornneliu Prusa i3 Mk3/Mk3sPrusaSlicer
    2020-09-19 05:18:09

    I printed without raft or suport. You have to print it as you received it. Nothing extra.

    cornneliu Prusa i3 Mk3/Mk3sPrusaSlicer
    2020-09-19 05:23:54

    Check how my print came off after removing suport.

    fab365 Administrator
    2020-09-21 12:33:09

    Thank you very much, sharing your printing experiences and photos~
