Lambda-class T-4a shuttle

FREE

If you sign up, you can download one free item every 24 hours.

1 download available

Designer

GOODesign

GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf.   This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.

The foldable R2D2 from movie Starwars, which was shared free of charge, so that you can enjoy the technology of FAB365 design, was greatly loved by 3D printer users and customers. To thank these customers for their support, we created another free design.

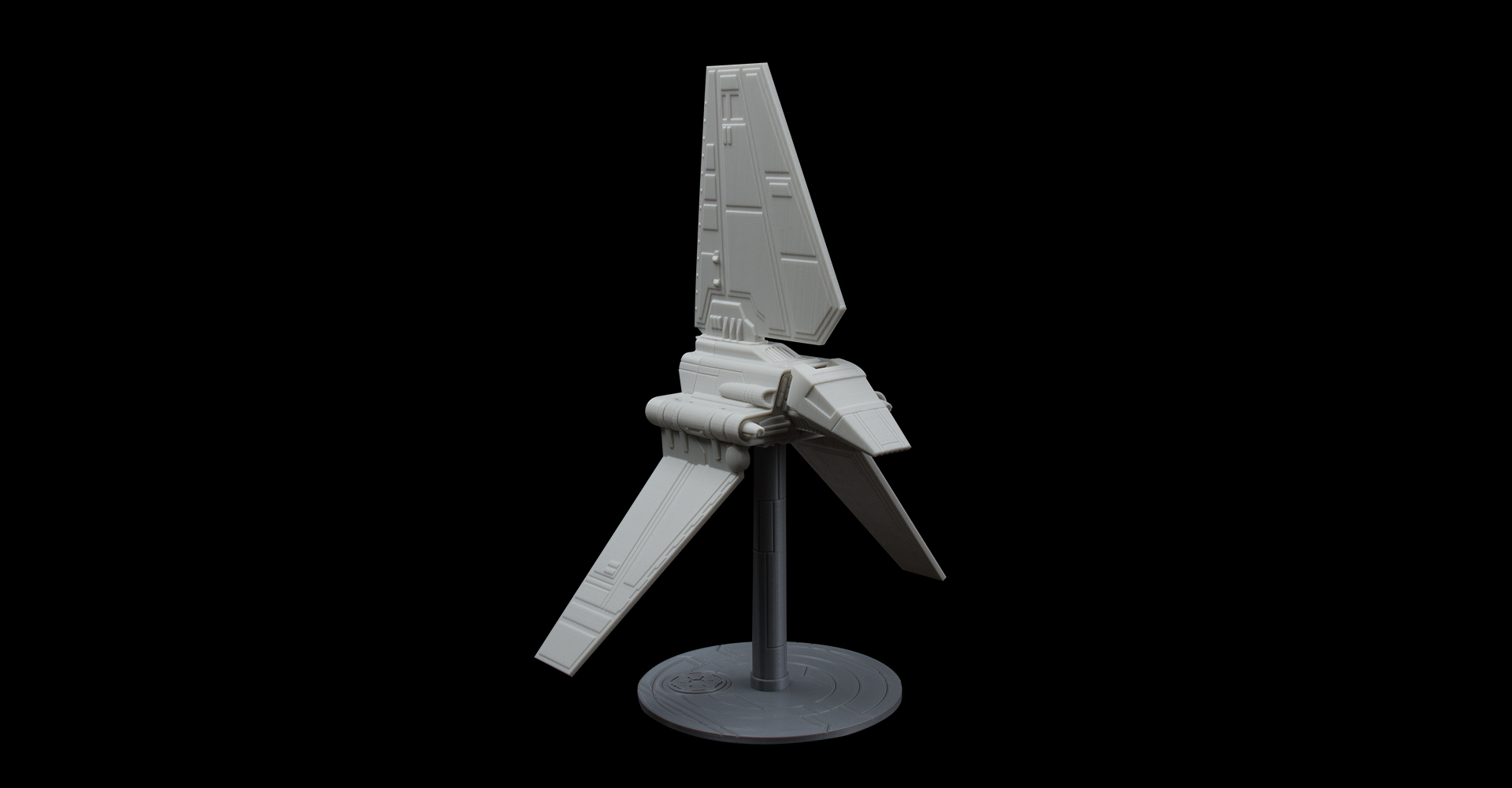

Also featured in the movie Star Wars, it is a lambda class T-4a shuttle used by Darth Vader and the Emperor of the Empire.

Design features:
In order to realize all parts to the fullest, it cannot be made with a perfectly foldable design, and some are designed to use adhesives/glues.
However, it has produced and depicted more detailed than any other design ever made for 3D printing.
Stairs can be connected to the front of this shuttle, and landing gear can be fitted to the body, allowing the emperor or the governor to get off the shuttle to create a movie scene.

There are a few precautions when printing.
Apply brim for the wings. Because the wings are thin, there is a high probability of falling during printing. Brim is very easy to remove after printing.

When fitting the rear part of the body, the rotating wing joint must be lowered vertically and then inserted, so that the device that maintains the angle of the wing functions properly. When fitting the wings, please use adhesive/glues.

The folding process is as follows:1. Insert the front part of the body.
2. Lower the side wing linkage vertically down.
3. Insert the back of the torso.
4. Fold the bottom part of the torso and glue it.
5. Remove the support in the slots of the side wing. And glue the wings on both sides.
6. Glue the vertical wings.
7. It's done.

In the future, we will continue to produce better designs to reward our customers.
Thank you.

PRUSA Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 2.4mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 100% / First Layer Width : 100% / First Layer Speed : 80%
Infill Interlor Fill Percentage : 15% / Outline Overlap : 30%
Additions Brim : Only for Wings / Support : NO
Additions Raft : incase of low adhesion on bed
PRUSA Slicing Settings Slic3r
PRUSA MK3 Layer Height : 0.1mm, 0.2mm / Brim : Only for Wings / Support : NO
Additions Raft : incase of low adhesion on bed
Ender Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 4.2mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 120% / First Layer Width : 150% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 15% / Outline Overlap : 30~40%
Additions Raft : OK / Brim : Only for Wings / Support : NO
File
File 7.5 MB
Average Time
[0.1mm] T-4a Fuselage : 8h
[0.1mm] T-4a Top Fin : 4h
[0.1mm] T-4a Port Main Wing : 3h
[0.1mm] T-4a Starboard Main Wing : 3h
  • relentlesscoreyh3502
    2021-05-04 06:34:32

    Was this designed to a certain scale?

    fab365
    2021-05-10 11:23:41

    @relentlesscoreyh3502
    No, we didn't set the specific scale.

  • Axaroth
    2021-01-09 20:21:02

    Another Great Model
    https://www.instagram.com/p/CJ0lpE4LAn9sBWMU-AMnLGt_3m1_McxaEBwNkw0/

    super3dprints2226
    2021-02-01 02:39:51

    That account is private, so we can't view it.

  • paulinhop
    2020-12-23 06:06:11

    You guys should put recommended settings for cura slicer as well.

    super3dprints2226
    2021-02-01 02:41:21

    I recommend switching to PrusaSlicer. They support Creality printers and the print results are much better! At least it was for me.

  • Amd3203
    2020-09-21 13:14:11

    This is a GREAT model. Wish I read about the brim before I printed as I did have to do the wings over. Really love the detail and how the wings move! Did on ender 3pro, white pla+, .2mm; did wings and legs in first print; then body in 2nd. Didn’t print the stand but will do it since I like how the whole thing came out. First print I did with no sanding as I think the layers make the model look cool. Again thanks and great model!

  • willow
    2020-09-16 14:06:21

    Awesome this!!!!

  • jay999
    2020-09-15 23:46:27

    Can the model be also printed on a SLA printer, maybe scaled down a bot?

    fab365
    2020-12-23 08:09:31

    @jay999 Sorry, it does not support SLA and you must use an FDM printer.
