Space shuttle Rocket booster

$ 3.99

Designer

GOODesign

GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf.   This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.

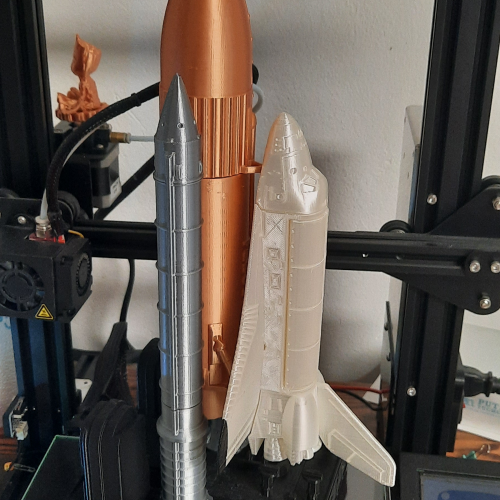

After I built the foldable space shuttle, there were many requests to make a rocket booster. In fact, while making the foldable space shuttle, I made a concave shape inside the landing gear cover so that I could make and mount a rocket booster. It was my big plan, and many requests from you have made it. Thank you.

※ The folding space shuttle is not included. The folding space shuttle can be downloaded here. ※
Foldable Space shuttle download


This time, I designed a brief launch pad for the space shuttle and the rocket booster. If you have a lot of requests, I can build an entire launcher in the future.

The making process is very simple. However, if there is any loose part after completion, use adhesive to fix it firmly.

Scale about 1:180

Size, when all parts are fitted X 155mm, Y 155mm, Z 337mm

PRUSA Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 2.4~2.6mm or Retraction Distance : 1.2mm, Retraction Vertical Lift : 0.6mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 100% / First Layer Width : 98% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 35%
Additions Raft : OK / Brim : NO / Support : NO
PRUSA Slicing Settings PrusaSlicer
PRUSA MK3 Layer Height : 0.1mm, 0.2mm / Raft : OK / Brim : NO / Support : NO
Ender Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 5.2mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 120% / First Layer Width : 95% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 50%
Additions Raft : OK / Brim : NO / Support : NO
CR-10S Pro Slicing Settings Cura
Quality Layer Height : 0.1mm, 0.2mm / Line Width : 0.4mm
Shell Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6
Infill Infill Density : 20% / Patten : Grid
Material Flow : 100% / Retraction Distance : 5.4mm
Build Plate Adhesion Raft / Raft Extra Margin : 3mm / Raft Air Gap : 0.3~0.32mm
File
File 16.9 MB
Average Time
[0.1mm] Booster Main : 21h
[0.1mm] Booster Side L/R : 10h
[0.1mm] Booster Base : 33h
[0.1mm] Booster Stick : 40m
  • Round44 Prusa i3 Mk3/Mk3sPrusaSlicer
    2020-11-24 20:20:58

    can print on prusa mk3s ?

  • cheddar1 Prusa i3 Mk3/Mk3sPrusaSlicer
    2020-11-24 05:44:23

    So excited to get an add-on for the space shuttle. I would definitely love to see more. Have you considered cargo for the bay? Perhaps a Hubble telescope or space station adapter?

    fab365 Administrator
    2020-11-24 11:47:52

    Thank you~
    We have plans for that.
    Please look forward to it~
