Falcon fairing
$ 3.99
GOODesign
GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf. This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.
Designed for 3D printing of Space X's important space programs, the Dragon capsule and Falcon 9 Rocket have gained a lot of popularity from customers. And, of course, there were many requests to create a design product related to this.
There are two, Fairing and Falcon heavy. Of these, we first produced Fairing, which takes relatively little development time.
This Fairing is designed to replace the Dragon capsule on the previously created Falcon 9 rocket.
In addition, I have designed a satellite that can be mounted inside.
The satellite was designed so that the solar panels could move, and the arms connected to the solar panels could move together.
※ Fairing L and R can fall during printing, so I recommend using Brim. ※
The process of making after printing is as follows.
1. Push up the front panel of the satellite and press it into place.
2. Press and insert the solar panel into the connection bar next to the body. After connecting, unfold the solar panel and check that the connecting rods are fitted.

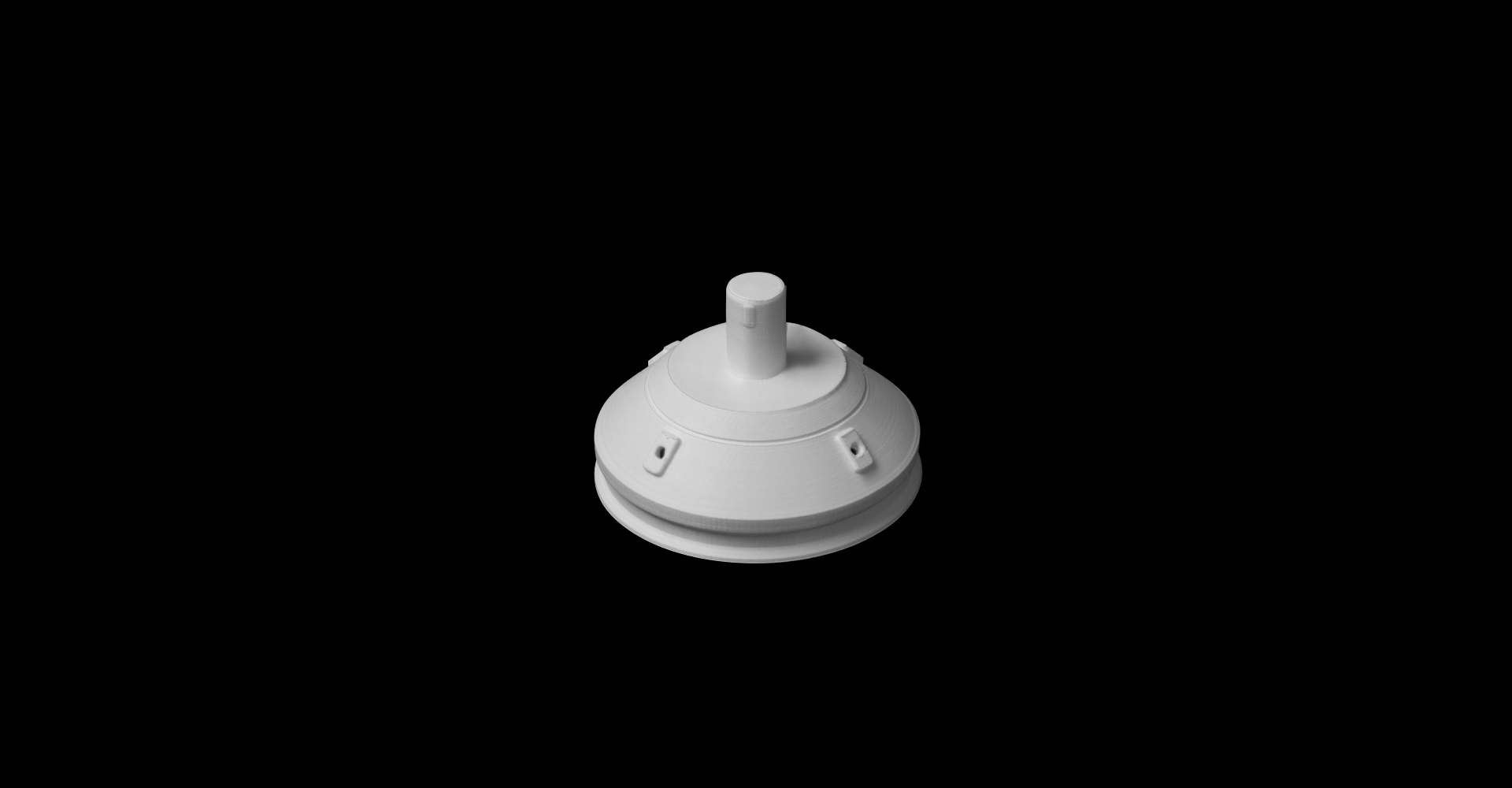

3. Press and connect the ring-shaped part (PAF connection part) to the bottom of the satellite.
4. Put the satellite on top of PAF (Payload Attach Fitting).
5. Fold the Parabolic antenna part and attach it to the Parabolic antenna on the front with adhesive.
6. After placing the PAF and the satellite on the desk/floor, hold each fairing in one hand, and connect the fairing to each other as if covering the PAF and the satellite.
7. Remove the dragon capsule from the Falcon 9 rocket and place the fairing on it.
Please refer to the video for the detailed process.
Falcon heavy is also in preparation, so stay tuned!
Scale 1 : 66
Sentinel size = X 80mm, Y 104mm, Z 90mm / Sentinel Part size = X 22mm, Y 22mm, Z 10mm, X 27mm, Y 27mm, Z 2mm, After folding X 49mm, Y 55mm, Z 96mm
| PRUSA Slicing Settings | Simplify 3D |
|---|---|
| Extuder | Nozzle Diameter : 0.4mm / Retraction Distance : 2.4~2.6mm or Retraction Distance : 1.2mm, Retraction Vertical Lift : 0.6mm |
| Layer Settings | Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2 |
| First Layer Settings | First Layer Height : 100% / First Layer Width : 98% / First Layer Speed : 50% |
| Infill | Interlor Fill Percentage : 10% / Outline Overlap : 35% |
| Additions | Raft : OK / Brim : NO / Support : NO |
| PRUSA Slicing Settings | PrusaSlicer |
| PRUSA MK3 | Layer Height : 0.1mm, 0.2mm / Raft : OK / Brim : NO / Support : NO |
| Ender Slicing Settings | Simplify 3D |
| Extuder | Nozzle Diameter : 0.4mm / Retraction Distance : 5.4mm |
| Layer Settings | Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2 |
| First Layer Settings | First Layer Height : 120% / First Layer Width : 95% / First Layer Speed : 50% |
| Infill | Interlor Fill Percentage : 10% / Outline Overlap : 55% |
| Additions | Raft : OK / Brim : NO / Support : NO |
| CR-10S Pro Slicing Settings | Cura |
| Quality | Layer Height : 0.1mm, 0.2mm / Line Width : 0.4mm |
| Shell | Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6 |
| Infill | Infill Density : 20% / Patten : Grid |
| Material | Flow : 100% / Retraction Distance : 5.4mm |
| Build Plate Adhesion | Raft / Raft Extra Margin : 3mm / Raft Air Gap : 0.3~0.32mm |
Notice !
Feel free to talk about your product.
Comments that are irrelevant to the topic may be deleted
did you make it? please write making story !
Write Review
P.S. - The payload should be a bunch of Starlink Satellites.
I would have liked much more if it was with the Starlink satellites indeed
Twice the right Fairing was knocked down by the hot end. I'm not sure any adjustment to the brim setting would help that. It looks like the Z-AXIS went down a tad and the hot end would hit it. This would happen for about 3, or more layers, and then knock it down. I do not know if CURA has a slicing issue with the Right Fairing or not. The printer has been working very well lately and had no problems printing the tall sections of the Falcon 9 rocket.
Came together perfectly. In the future, a launch pad to host the rocket on its boosters in a before launch scene would be a must purchase from me!
are there any plans on creating the payload with the tesla?
Yes! the tesla with astronaut.
Thank you, I have been waiting for this one! How about adding the SpaceX Starship next. :)
Thank you~ I need more votes for space X starship.
Falcon heavy got more votes, so I will make Falcon heavy first.
Please look forward to it.
Wait for more votes for Space X starship.
Thanks again~
1 more vote for SpaceX Starship!
