Falcon heavy

$ 8.99

Designer

GOODesign

GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf.   This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.

The Falcon 9 rocket and dragon capsule are successfully launched and in operation. Perhaps that's why the previously made Falcon 9 rocket and Dragon Capsule models were also very popular. And there was a request to continuously produce Falcon heavy.
However, Falcon Heavy is a very large project and I was hesitant because it was a time-consuming task. However, it started to be produced at the constant request of customers, and it was finally completed.

Second stage and fairing are not included.
Second stage link
Fairing link

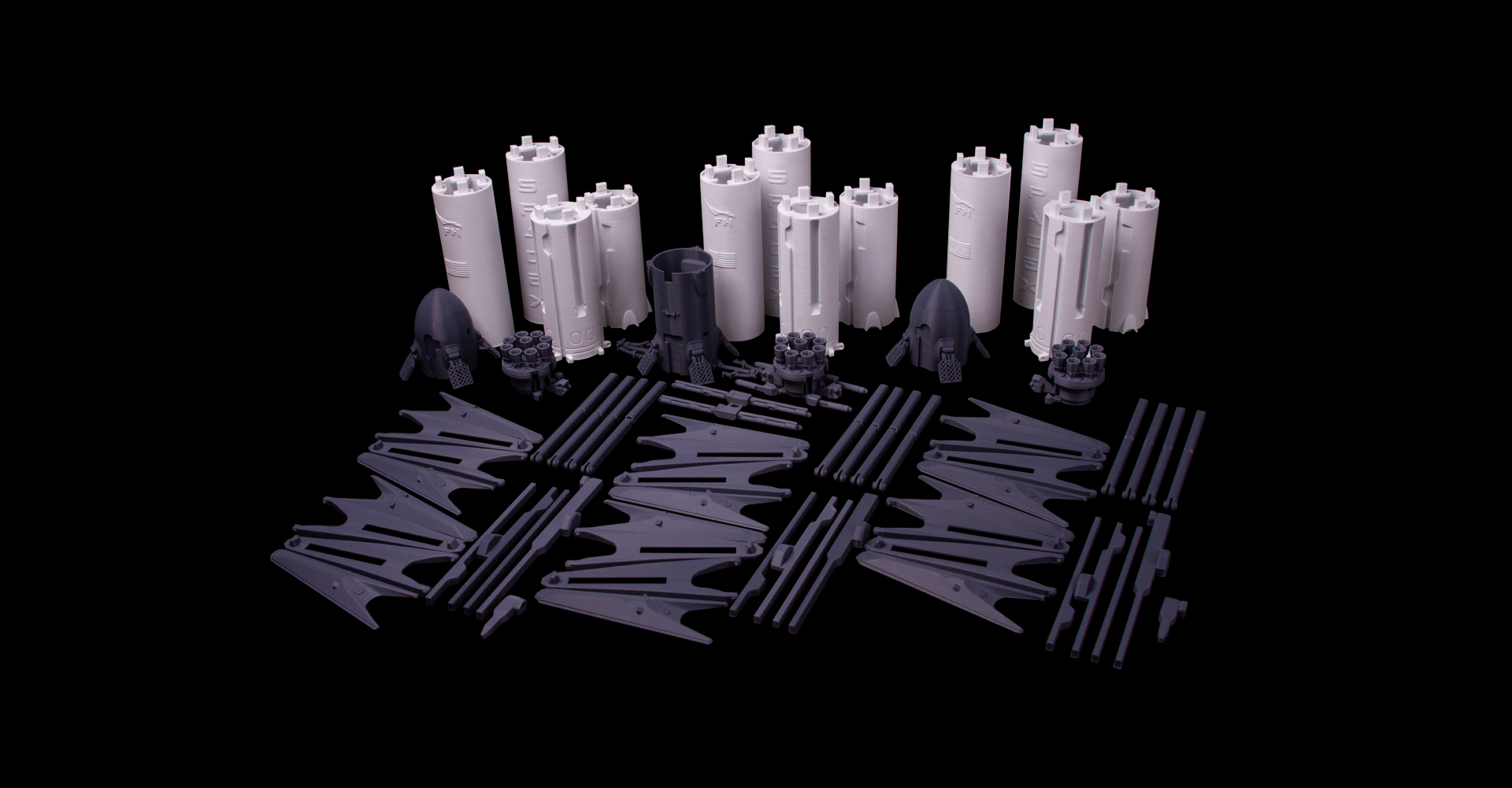

The composition of the parts is as follows.
X2 means you need 2 sets, X12 means you need 12 sets. So, you need to print as many more as you need.
Inter Stage Min
Inter Stage Side x2
Inter Stage Hinge x2
Side Cable Main
Side Cable Side x2
FH Main
FH Side x2
SpaceX Side
SpaceX Side x2
Middle Main
Middle Side x2
Bottom Main
Bottom Side x2
Booster Main
Booster Side x2
Landing Leg Bar x12
Landing Leg x12

If you've ever built a Falcon 9 rocket, it's easy to do.
Please check the video for the assembly process.

Scale 1 : 66
Size when finished, X 233mm, Y 81mm, Z Fairing 1058mm, Second Stage 936mm, Heavy 730mm

PRUSA Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 2.4~2.6mm or Retraction Distance : 1.2mm, Retraction Vertical Lift : 0.6mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 100% / First Layer Width : 98% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 35%
Additions Raft : OK / Brim : NO / Support : NO
PRUSA Slicing Settings PrusaSlicer
PRUSA MK3 Layer Height : 0.1mm, 0.2mm / Raft : OK / Brim : NO / Support : NO
Ender Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 5.4mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 120% / First Layer Width : 95% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 55%
Additions Raft : OK / Brim : NO / Support : NO
CR-10S Pro Slicing Settings Cura
Quality Layer Height : 0.1mm, 0.2mm / Line Width : 0.4mm
Shell Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6
Infill Infill Density : 20% / Patten : Grid
Material Flow : 100% / Retraction Distance : 5.4mm
Build Plate Adhesion Raft / Raft Extra Margin : 3mm / Raft Air Gap : 0.3~0.32mm
File
File 201.4 MB
Average Time
[0.1mm] Inter Stage Main: 15h 55m
[0.1mm] Inter Stage Side: 11h 5m
[0.1mm] Inter Stage Hinge: 1h 5m
[0.1mm] Side Cable Main: 4h 20m
[0.1mm] Side Cable Side: 4h 40m
[0.1mm] FH Main: 17h 15m
[0.1mm] FH Side: 17h 15m
[0.1mm] SpaceX Main: 18h 30m
[0.1mm] SpaceX Side: 18h 30m
[0.1mm] Middle Main : 14h 20m
[0.1mm] Middle Side : 14h 20m
[0.1mm] Bottom Main : 16h 45m
[0.1mm] Bottom Side : 16h 45m
[0.1mm] Booster Main : 7h 50m
[0.1mm] Booster Side : 5h 55m
[0.1mm] Landing Leg Bar : 1h 35m
[0.1mm] Landing Leg : 4h 5m
  • rueben.martinez3367
    2021-08-16 23:40:16

    I loved printing and building this rocket. Tons of fun. I decided to go with black instead of the grey just because.
    If you’re going to print this I suggest you glue the body parts as well as the hoses.
    I printed the Strongback from a thigiverse file and scaled it to 126% so that it would fit the F9 heavy.

  • SnowEagle
    2021-07-26 03:20:46

    Having Trouble keeping the landing legs closed, they fall open. Any idea how to keep them closed?

  • SnowEagle
    2021-06-22 21:02:43

    What is the Scale? I have other rockets that are 1\60th scale and would like to print this at that scale.

    SnowEagle
    2021-06-22 21:25:47

    I see this is 1/66 scale, how much should I increase this to achieve a scale of 1/60?

    nachonn1134
    2021-06-24 11:39:36

    110% scale

  • slowheelie1674
    2021-06-22 00:06:25

    Im printing now and just did the main engines. Why does the center engine move up and down?

    nachonn1134
    2021-06-28 12:35:34

    because falcon 9 center engine are the main engine that controls the direction of it

  • nachonn1134
    2021-06-18 12:58:57

  • nachonn1134
    2021-06-18 12:29:11

    Are there any sale on the SpaceX collections

    I have printed the crew dragon

  • alien1gg
    2021-05-18 11:41:12

    I cant follow assembly instructions for the landing legs. Your hands are coving an essential part and i dont see that part. Is there any way you can make that more clear?

    Thanks

    fab365
    2021-05-20 10:43:15

    Then, please check this design and video. It has same landing legs.
    https://fab365.net/items/203
    Thank you!

  • NSheriff
    2021-05-12 12:23:04

    Looks awesome, can't wait to start printing. Only thing is the nose cones for the side boosters are the wrong color. But other then that, once again an outstanding looking model!

    fab365
    2021-05-17 10:01:55

    Thank you for stopping by and leaving a comment! We are glad to know that the Falcon heavy caught your interest and look forward to your result!
