Foldable Pontiac Firebird Trans AM 1982

$ 5.79

Designer

GOODesign

GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf. This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.

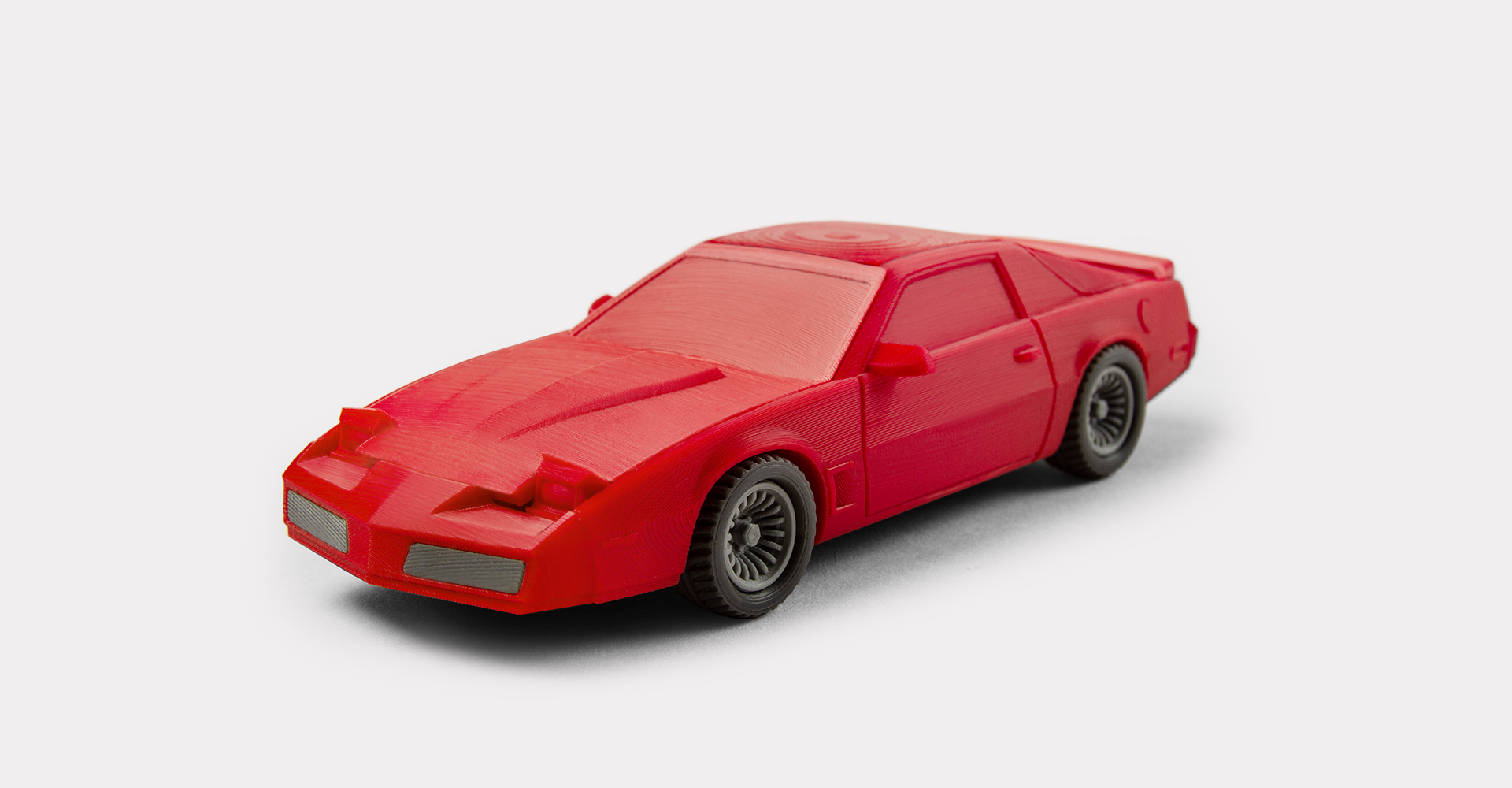

The Pontiac Firebird Trans Am 1982 was popular with its futuristic design with a wedge shaped body. Crucially, the TV series Knight rider appeared as a car in which future technologies equipped with artificial intelligence called KITT and various cutting-edge functions were integrated, and became very popular. In particular, the fact that it looks like the car of the future with only a little tuning was possible because the basic design of Trans AM was already very futuristic.

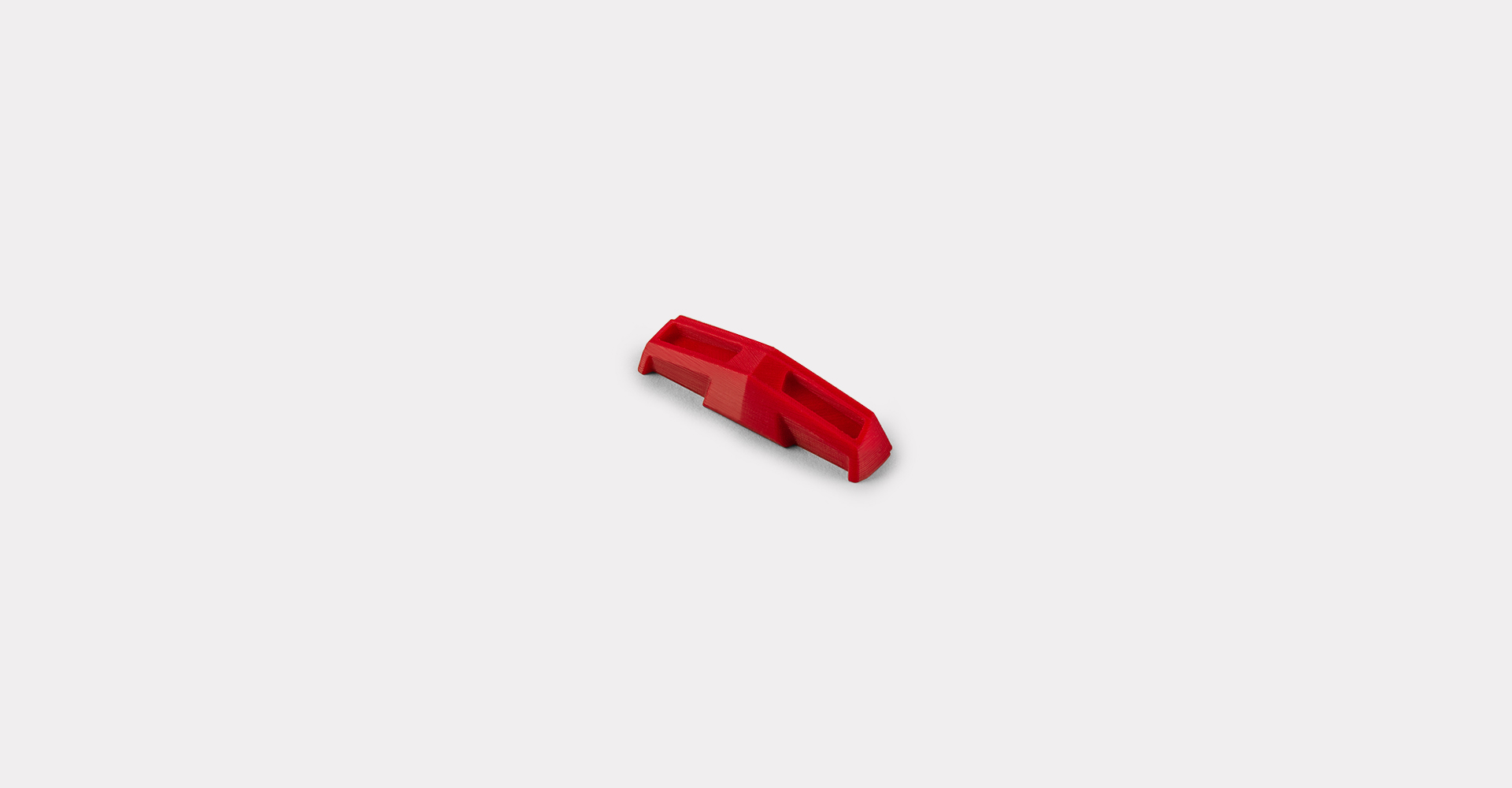

What's new about this foldable car is its design to open and close the headlamps. In this era, in order to make the front part of a car low, a lot of designs were adopted in which the headlamps were usually inserted into the body and then lifted up at night. I first made this as a foldable way.

I have reluctantly used the support this time. However, it is designed to be easy to remove and not to be seen when folded.

Please refer to the video for the folding process.

1 : 38 scale

When expanded, size = X 84mm, Y 118mm, Z 40mm After folding X 51mm, Y 130mm, Z 34mm

PRUSA Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 2.4~2.6mm or Retraction Distance : 1.2mm, Retraction Vertical Lift : 0.6mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 100% / First Layer Width : 98% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 35%
Additions Raft : OK / Brim : NO / Support : NO
PRUSA Slicing Settings PrusaSlicer
PRUSA MK3 Layer Height : 0.1mm, 0.2mm / Raft : OK / Brim : NO / Support : NO
Ender Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 5.4mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 120% / First Layer Width : 95% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 55%
Additions Raft : OK / Brim : NO / Support : NO
CR-10S Pro Slicing Settings Cura
Quality Layer Height : 0.1mm, 0.2mm / Line Width : 0.4mm
Shell Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6
Infill Infill Density : 20% / Patten : Grid
Material Flow : 100% / Retraction Distance : 5.4mm
Build Plate Adhesion Raft / Raft Extra Margin : 3mm / Raft Air Gap : 0.3~0.32mm
File
File 26.1 MB
Release Date
2021-05-18
Average Time
[0.1mm] Trans-Am Body : 9h
[0.1mm] Trans-Am Underbody : 5h 30m
[0.1mm] Trans-Am Headlight : 15m
[0.1mm] Trans-Am Spoiler : 10m
[0.1mm] Front Bumper-A : 30m
[0.1mm] Front Bumper-B : 10m
[0.1mm] Rear Bumper-A : 15m
[0.1mm] Rear Bumper-B : 15m
[0.1mm] Trans-Am Tire : 1h
  • swhite7473256182
    2023-03-19 21:13:07

    How well would this scale up?

  • Hellswing
    2022-03-16 17:02:17

    It could be amaizing to have the Dodge Challenger to complete the "Johnny Lawrence collection" :D

  • gdownton4394
    2021-05-28 13:55:24

    Have printed many Fab365 designs with no issues. This is the first model I've had an issue with. The headlights were a little wonky, the sliding connectors under the roof broke or were fused to the top, and other parts didn't snap together as well. Could have been the filament I used or print settings. When I have time I'll try to print again with filament I have used successfully with Fab365 designs before. Ended up gluing the model together. I'd still give a 4 out of 5 because the design is still great.
