Batmobile

$ 4.49

Designer

Tariq Ali

I am a 3D designer/Editor/Animator based in the beautiful city of Dubai in Middle East. i belong to the 3D design & Sculpting background from the past 10 years. Very much passionate about what i do, so i enjoy doing it & make time for unique projects. Helps me to challenge myself & grow as a professional, & get to know some awesome people. I had worked on a number of 3D projects during my career for brands like Huawei, Head & Shoulders , The Dubai Mall commercials, Footway Shoe-wear. From designing & 3D printing missing bones of skeletons kept in museum to Sculpting a human bust, i was fortunate enough to work on a variety of design projects. Being an artist, I look for inspiration around me everywhere in my everyday life & i try to express emotions through it. 3DPrintingGeek is born out of a combination of my 3d design background & my love for this amazing technology of 3D Printing, which allows me to bring my digital 3d designs into the real world, in my own hands in reality.I try not to follow a specific trend & design almost anything that i find interesting & which i feel challenges my skills & help me to learn new techniques along the way. Regards, Tariq Ali

This detailed Batmobile model was on my to-do list for a very long time, finally, I was able to design the legendary Batmobile from the 1989 hit movie. In this vehicle, the Dark Knight roams the streets of Gotham City, defending the city and its inhabitants. Crafted with keeping most of the details from the actual car in the movie, this Batmobile figurine is a must-have item for any passionate collector and a great gift idea for DC fans. Can become a unique decoration object for adults, & a toy for kids. Like the actual car in the movie, the mechanism of the sliding door had been added to have the driver's cabin slide open, exposing the little driver & passenger seats, along with a gearbox to be seen once open. The axle of the car prints flat on the print bed locked into the left & side bodies to let the tires slide onto them & rotate freely once printed.

The STL of the model is laid out in the best orientation for print & was designed in a way, so it does not require supports for most of the pieces, although you need supports only for the front portion of the side bodies of the car, the back of the car body which got the wings attached to it & for the sliding door cabin (supports generated only from the print bed). You will be able to identify the pieces with appropriate names. You can print it at 100% scale, or even 200% scale if you got a bigger 3D printer. The car is separated into multiple pieces, which gets assembled into the final model. You can use glue in portions of the model which prints loose as a result of your printer not being well-calibrated for precise tolerances of approximately 0.2mm. Go ahead & print this model for a DC fan or somebody who loves to just 3D print fully functional toys out of his 3D printer.

Note: For the supports, I suggest you use generate supports from the print bed only (keeping the 45 degrees angle in mind) & then manually remove the supports which gets generated in areas where you actually don't need supports, like bridging areas. Also, make the support pillar resolution to 0.2mm & Horizontal offset from part as 0.30mm under the supports menu if you are using simplify3D as your slicing software. Changing the interface distance from the object to 0.2mm is the available option for Cura users.

Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 2mm
Layer Settings Layer Height : 0.15mm, 0.2mm / Top Solid : 3 / Bottom Solid : 2 / Outline : 2
First Layer Settings First Layer Height : 150% / First Layer Width : 100% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 20% / Outline Overlap : 5%
Additions Raft : OK / Brim : NO / Support : OK(from print bed only)
File
File 48.9 MB
Average Time
[0.1mm] Mid-Body : 3h
[0.1mm] Left-Body : 2h 30m
[0.1mm] Right-Body : 2h 30m

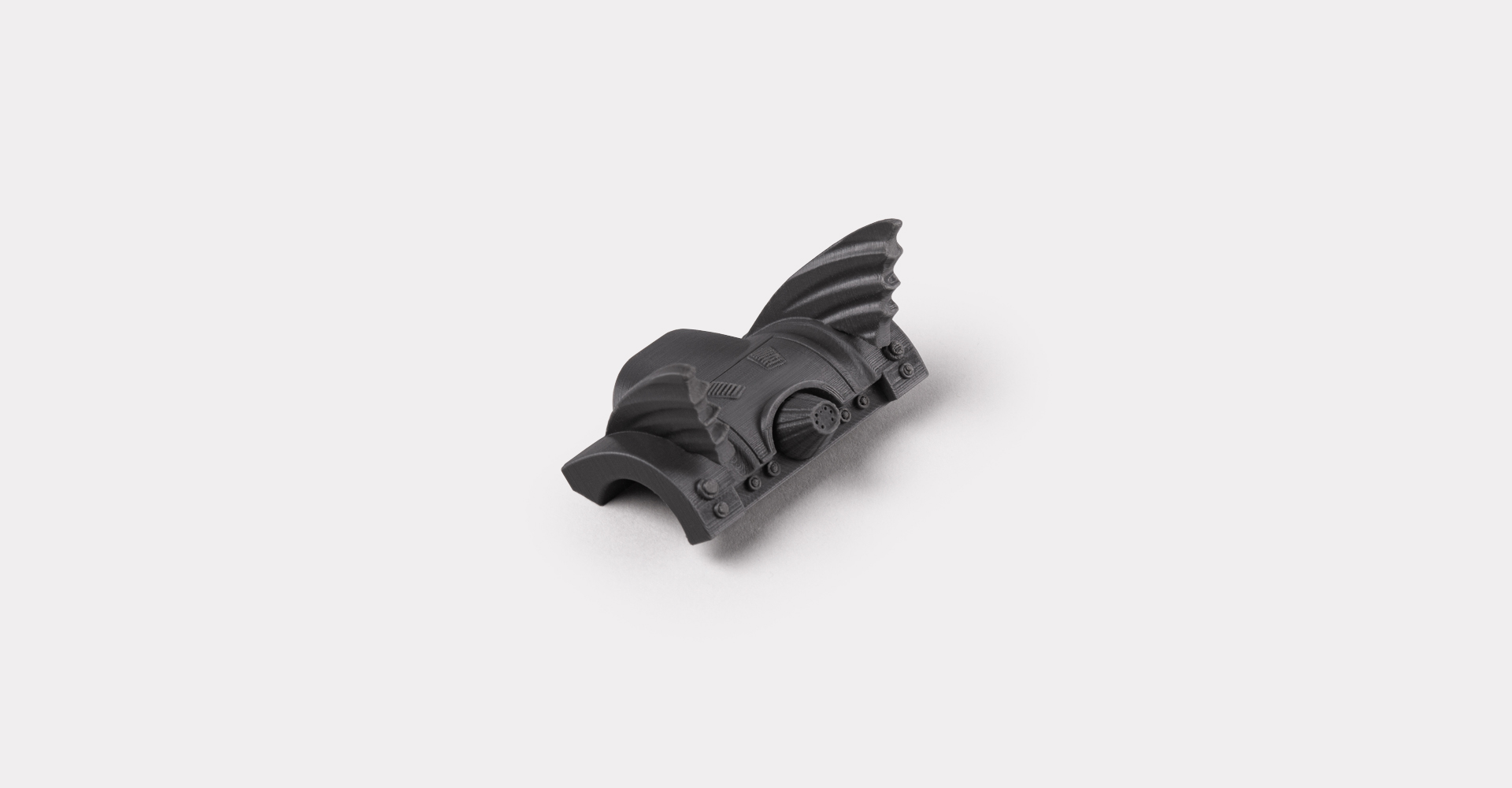

[0.1mm] Rear-Body : 3h 30m
[0.1mm] Front Fan / Joints : 30m
[0.1mm] Cabin Cover Slider : 2h
[0.1mm] Tire : 1h 30m
  • dspillman Creality Ender-3Cura
    2021-04-28 01:49:13

    I have a recommendation - for the cabin slider portion, you should extend the piece that gets inserted into the front of the car. This will keep it from falling out. I edited your file with the extended piece and it no longer falls out of the car and works much better!

    Also - I had the hole in the back of the cabin slider was not printing correctly for me so I had to use a drill bit to widen the hole so it could fit into the bar.
