Foldable General Lee - Dukes of Hazzard

$ 5.79

Designer

GOODesign

GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf.   This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.

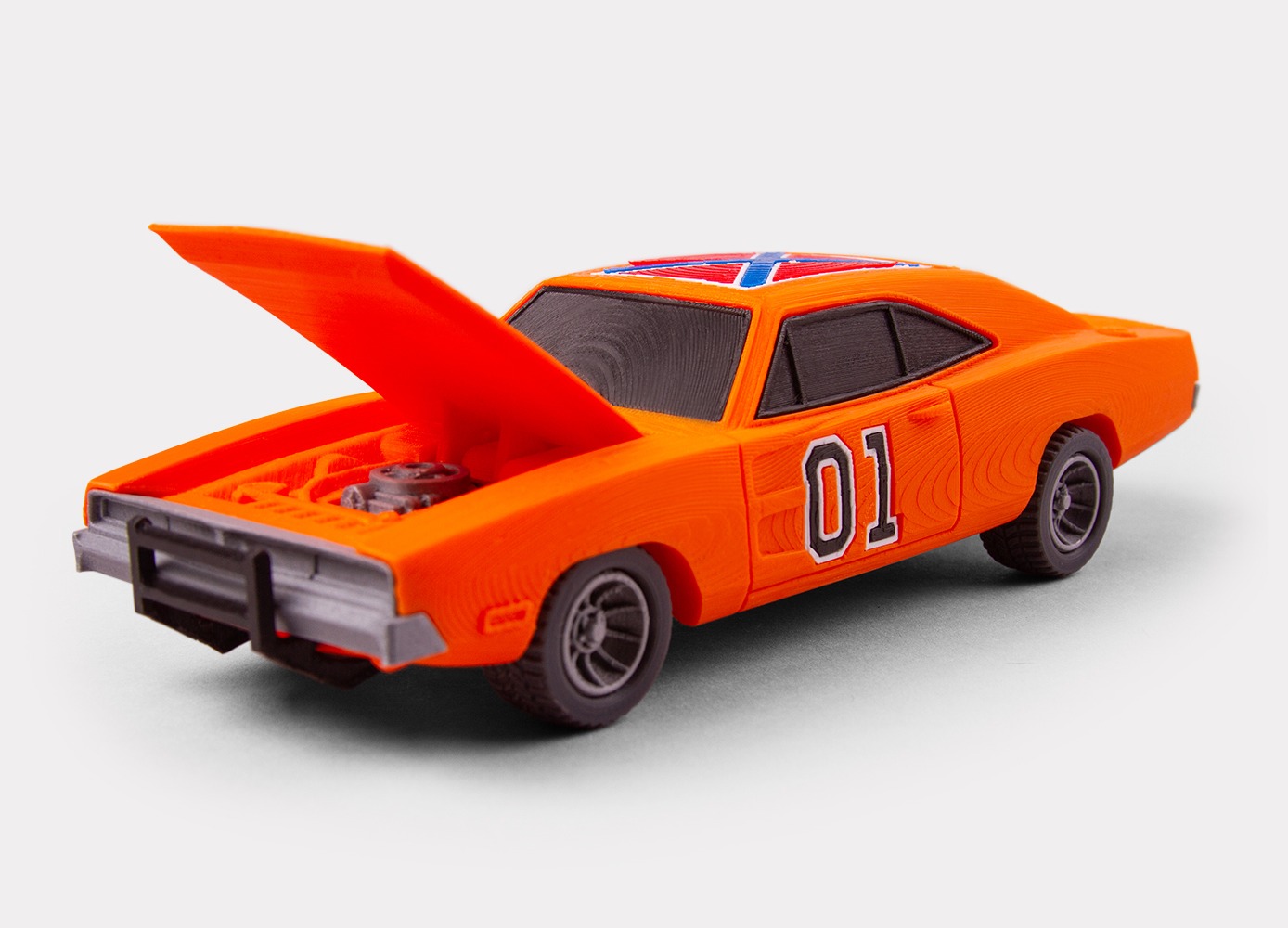

The Dodge Charger is a car that has been loved by so many people. That's why it appeared in many movies and TV shows, and one of them is "Dukes of Hazzard". In this TV show, Dodge Charger appears in a very unique painting. There are also a lot of people who like the Dodge Charger in this unique painting. When I designed the Foldable Dodge Charger, there were many requests from many people to make a car with this unique painting. Of course, so I made it.

The key to creating this design is how well the painting is presented. Most of the paintings were well expressed, but the stars were omitted due to their too small size.

The notable thing about this design is that the windows are separated. If you print these separated windows in black, people will mistake them as if they had windows. This is a common technique for car windows to be black.
Anyway, this made the car that looked very simple so far looked more realistic.
This separation of windows is not possible in all foldable designs. This is because the folding structure takes up a lot of space inside, so it is difficult to add a structure and space to fit the windows.

However, in the future, I plan to think more about the reproduction of colors as well as the form. Stay tuned.

1 : 38 scale

When expanded, size = X 90mm, Y 140mm, Z 37mm After folding X 53mm, Y 142mm, Z 39mm

PRUSA Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 2.4~2.6mm or Retraction Distance : 1.2mm, Retraction Vertical Lift : 0.6mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 100% / First Layer Width : 98% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 35%
Additions Raft : OK / Brim : NO / Support : NO
PRUSA Slicing Settings PrusaSlicer
PRUSA MK3 Layer Height : 0.1mm, 0.2mm / Raft : OK / Brim : NO / Support : NO
Ender Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 5.4mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 120% / First Layer Width : 95% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 55%
Additions Raft : OK / Brim : NO / Support : NO
CR-10S Pro Slicing Settings Cura
Quality Layer Height : 0.1mm, 0.2mm / Line Width : 0.4mm
Shell Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6
Infill Infill Density : 20% / Patten : Grid
Material Flow : 100% / Retraction Distance : 5.4mm
Build Plate Adhesion Raft / Raft Extra Margin : 3mm / Raft Air Gap : 0.3~0.32mm
File
File 23.4 MB
Average Time
[0.1mm] Body : 11h
[0.1mm] Underbody : 6h
[0.1mm] Hood : 50m
[0.1mm] Window : 1h
[0.1mm] Tire : 1h 30m
[0.1mm] Bumper / Engine : 40m
[0.1mm] Front Bumper Guard: 10m
[0.1mm] Pattern White : 30m
[0.1mm] Pattern Black : 15m
[0.1mm] Pattern Blue : 10m
[0.1mm] Pattern Red : 15m
