Foldable Bikini bottom bus - Sponge Bob

$ 5.49

Designer

GOODesign

GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf. This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.

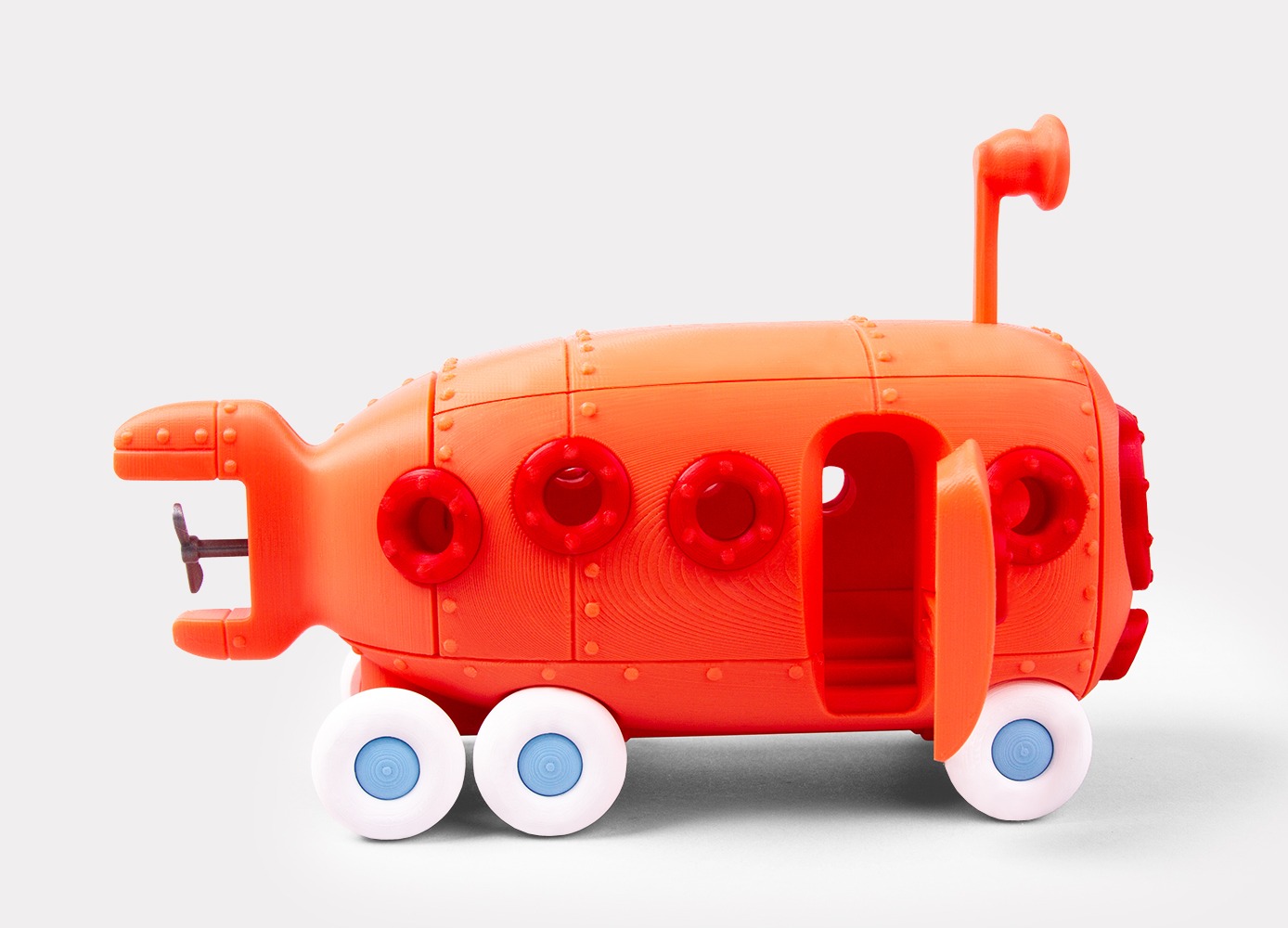

Designing objects that appear in hand-drawn animation requires a lot of creativity. This is because hand-drawn representations are not accurate. And a lot of people like to be creative. The previously designed Mystery machine has also been well received by 3D printer users. So, as my next project, I designed a bikini bottom bus that appears in SpongeBob SquarePants.

The printing and assembly process is very simple, but there are a few caveats.
1. If parts such as window frames or headlights are loose, attach them with adhesive.
2. When connecting the lower body and upper body, check the protrusions and holes and connect them properly. There is a risk of breaking the protrusions if they are connected in a state where they are not properly positioned.
3. The side door is stiff and may not open well. But if you open and close and repeat a few times, the side door will work just fine.

Please refer to the video for detailed assembly and folding process.

Summer is coming soon. The background of the animation in which this bus appears is in the sea. Feel the cool sea where SpongeBob and his friends live on this bus.

Largest part in printing, size = X 131mm, Y 186mm, Z 51mm, After full assembly size= X 64mm, Y 148mm, Z 97mm

PRUSA Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 2.4~2.6mm or Retraction Distance : 1.2mm, Retraction Vertical Lift : 0.6mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 100% / First Layer Width : 98% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 35%
Additions Raft : OK / Brim : NO / Support : NO
PRUSA Slicing Settings PrusaSlicer
PRUSA MK3 Layer Height : 0.1mm, 0.2mm / Raft : OK / Brim : NO / Support : NO
Ender Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 5.4mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 120% / First Layer Width : 95% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 55%
Additions Raft : OK / Brim : NO / Support : NO
CR-10S Pro Slicing Settings Cura
Quality Layer Height : 0.1mm, 0.2mm / Line Width : 0.4mm
Shell Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6
Infill Infill Density : 20% / Patten : Grid
Material Flow : 100% / Retraction Distance : 5.4mm
Build Plate Adhesion Raft / Raft Extra Margin : 3mm / Raft Air Gap : 0.3~0.32mm
File
File 72.6 MB
Release Date
2021-06-07
Average Time
[0.1mm] Tire : 1h 40m
[0.1mm] Wheel Cap : 30m
[0.1mm] Side Window Frame : 1h 20m
[0.1mm] Propeller : 5m
[0.1mm] Periscope : 15m

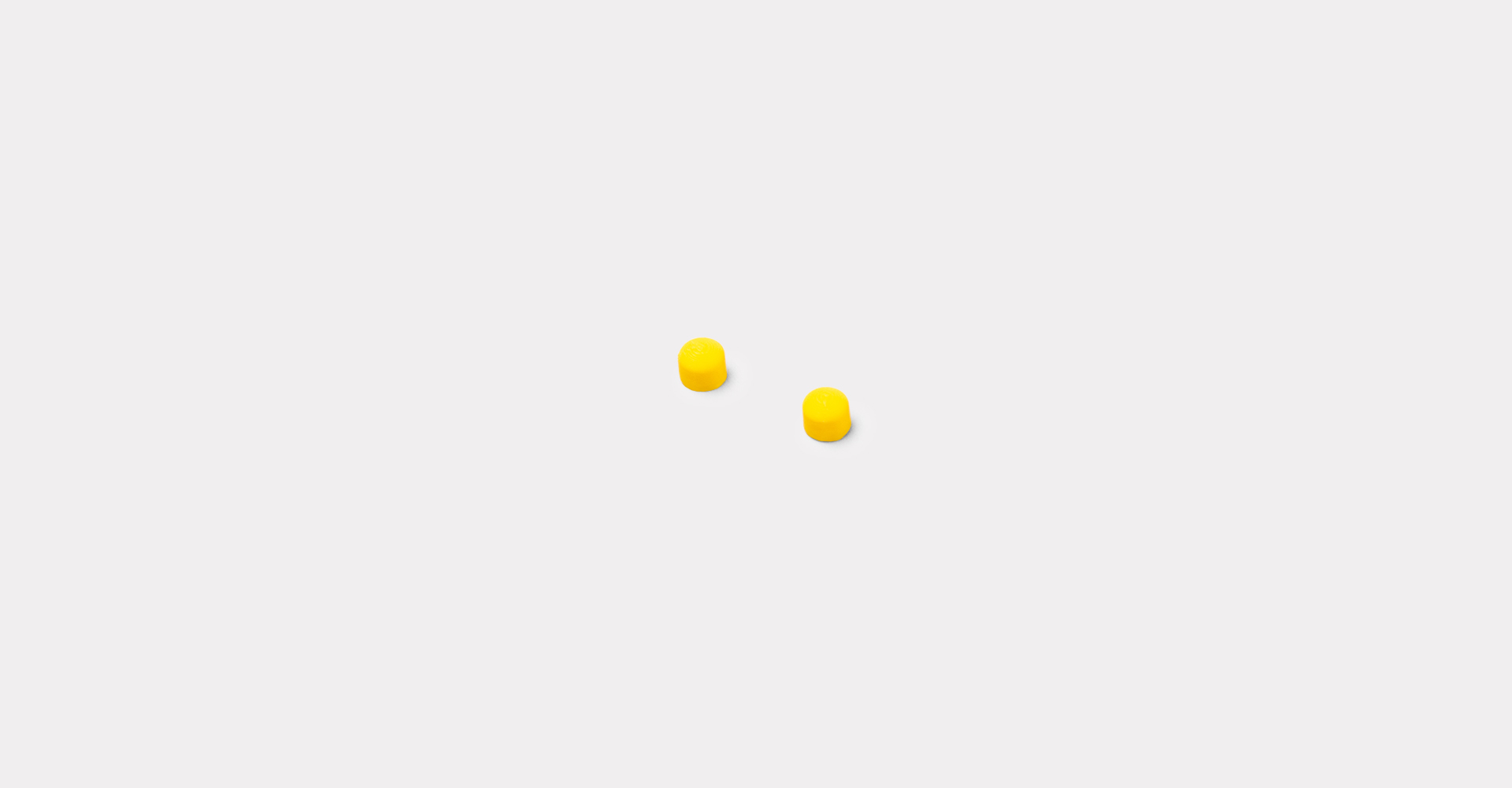

[0.1mm] Lights : 3m
[0.1mm] Front Frame : 50m

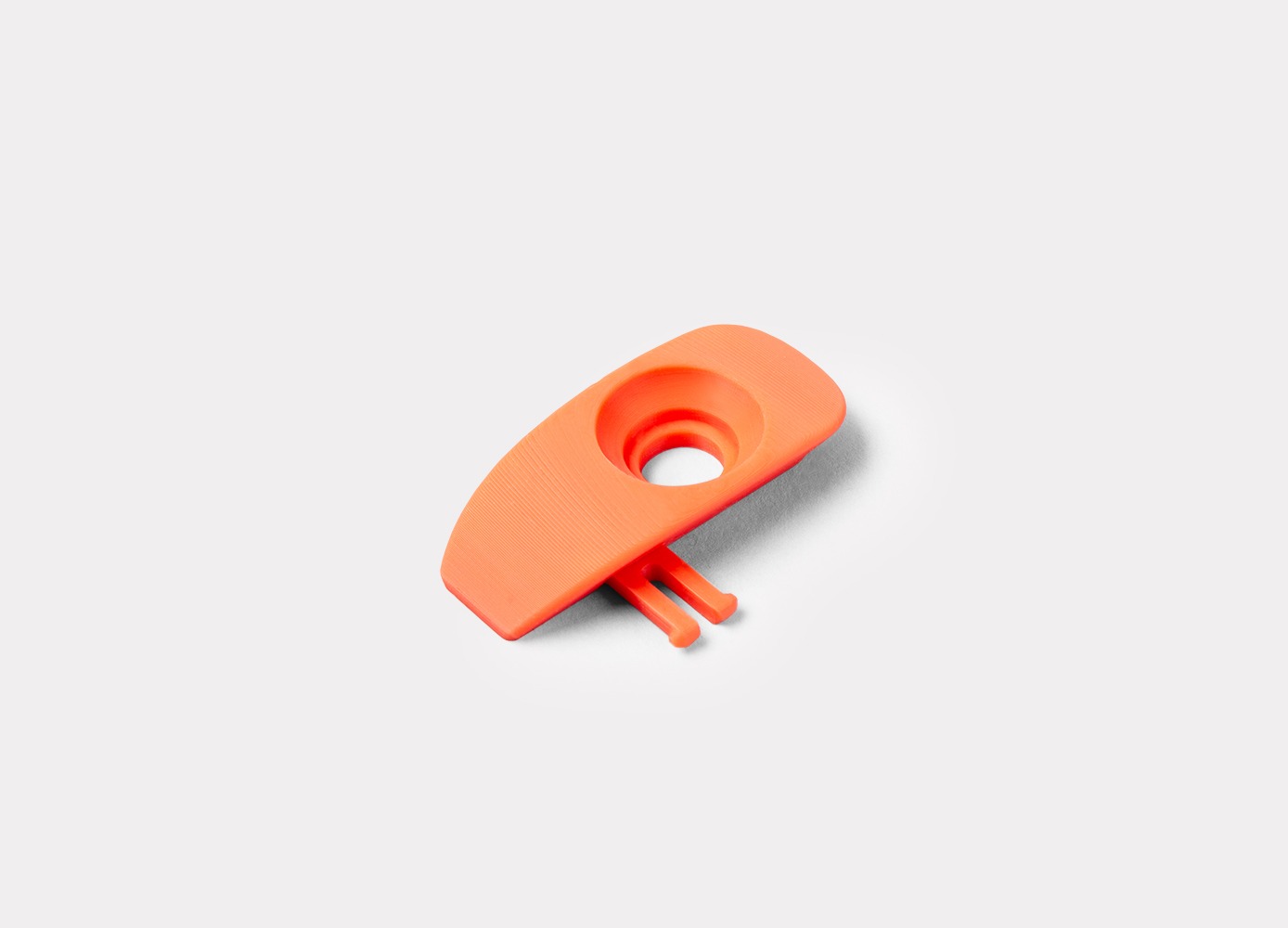

[0.1mm] Door : 30m
[0.1mm] Bottom : 8h
[0.1mm] Body : 11h
