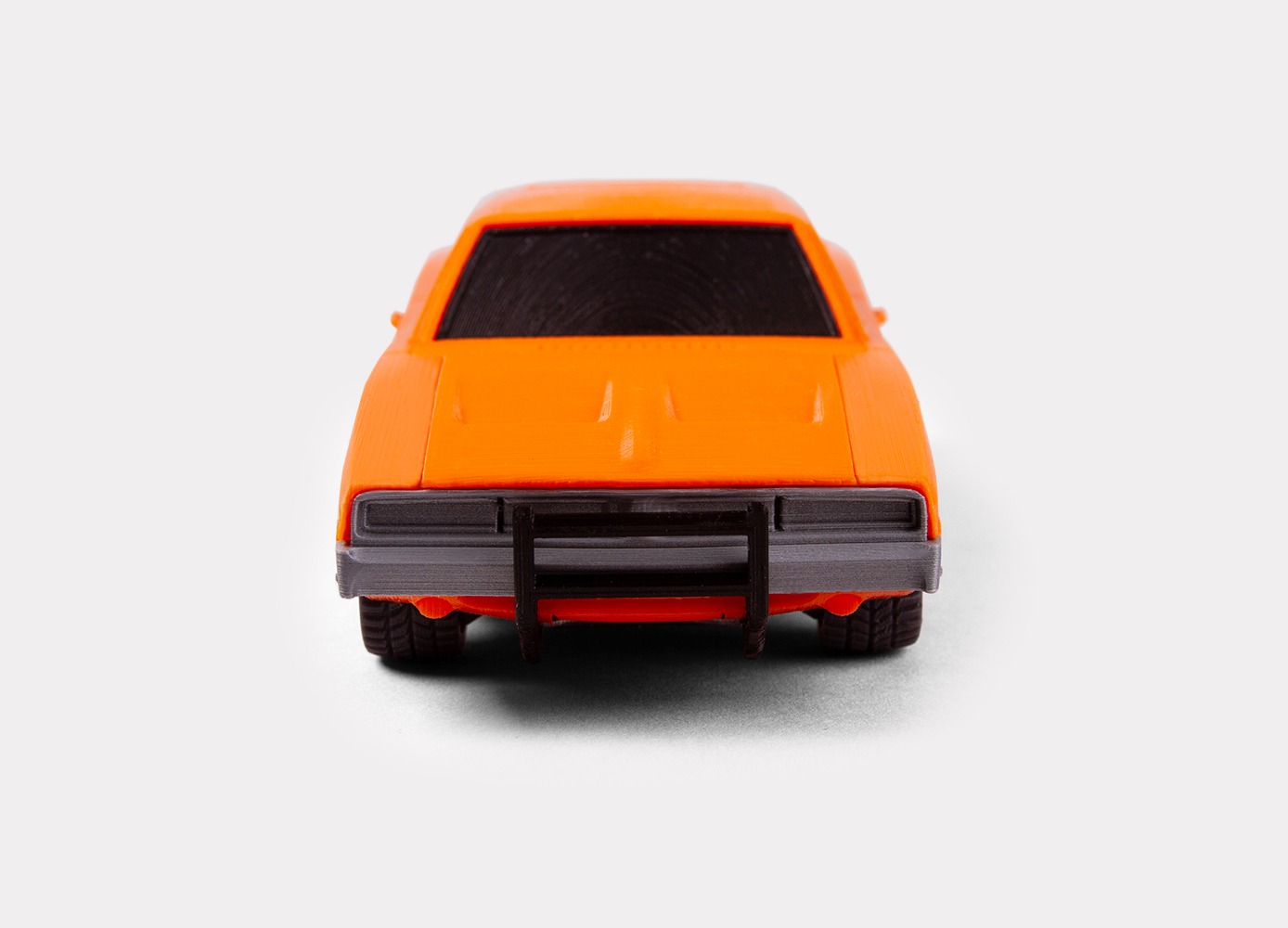

General Lee - Dukes of Hazzard- No flag version

$ 5.79

Designer

GOODesign

GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf. This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.

Last time there was a lot of controversy about the Foldable General Lee - Dukes of Hazzard I designed. I think healthy discussions are good, and I've been able to hear the opinions of many people.
In the process, we made a version without a flag on the roof of the car, which was highly requested. People who don't like flags should buy this design.

You can refer to the video for folding and assembling this.

Loose parts can be attached using adhesive.

In the future, FAB365 will try to accommodate the opinions of various customers as much as possible.

1 : 38 scale

The size when printed, size = X 90mm, Y 140mm, Z 37mm The size after folding X 53mm, Y 142mm, Z 39mm

PRUSA Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 2.4~2.6mm or Retraction Distance : 1.2mm, Retraction Vertical Lift : 0.6mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 100% / First Layer Width : 98% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 35%
Additions Raft : OK / Brim : NO / Support : NO
PRUSA Slicing Settings PrusaSlicer
PRUSA MK3 Layer Height : 0.1mm, 0.2mm / Raft : OK / Brim : NO / Support : NO
Ender Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 5.4mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 120% / First Layer Width : 95% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 55%
Additions Raft : OK / Brim : NO / Support : NO
CR-10S Pro Slicing Settings Cura
Quality Layer Height : 0.1mm, 0.2mm / Line Width : 0.4mm
Shell Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6
Infill Infill Density : 20% / Patten : Grid
Material Flow : 100% / Retraction Distance : 5.4mm
Build Plate Adhesion Raft / Raft Extra Margin : 3mm / Raft Air Gap : 0.3~0.32mm
File
File 23.1 MB
Release Date
2021-06-24
Average Time
[0.1mm] Body : 11h
[0.1mm] Underbody : 6h
[0.1mm] Hood : 50m
[0.1mm] Window : 1h
[0.1mm] Tire : 1h 30m
[0.1mm] Bumper / Engine : 40m
[0.1mm] Pattern White : 20m
[0.1mm] Pattern Black : 15m
[0.1mm] Front Bumper Guard : 10m
