Marmon Truck HDT-AC-86 1973

$ 5.99

Designer

GOODesign

GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf. This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.

I've seen the Foldable Peterbilt truck I designed before become very popular, and I've noticed that many 3D printer users are truck enthusiasts. A variety of equipment that connects to trucks has also become very popular. So I was always thinking about designing a little more trucks.
So, in the meantime, I was looking for a different style (cube) truck from Peterbilt, and an old truck that Optimus Prime transformed into in the latest Transformers movie caught my eye. It was the first Optimus Prime transforming truck to appear in a comic book or comic book movie. So I looked up the truck and found out that it was a Marmon truck, and soon started designing it.

In this cube-shaped truck, you can see the engine by rotating the body forward without opening the front hood, and I really wanted to express this, and this time I finally expressed it well. The side door of this truck can also be opened.
And this time I tried to segment the colors. So it's not perfect, but by splitting the colors in a few parts you can enjoy a bit more variety of textures.

The folding and making process is very simple. Please refer to the video.

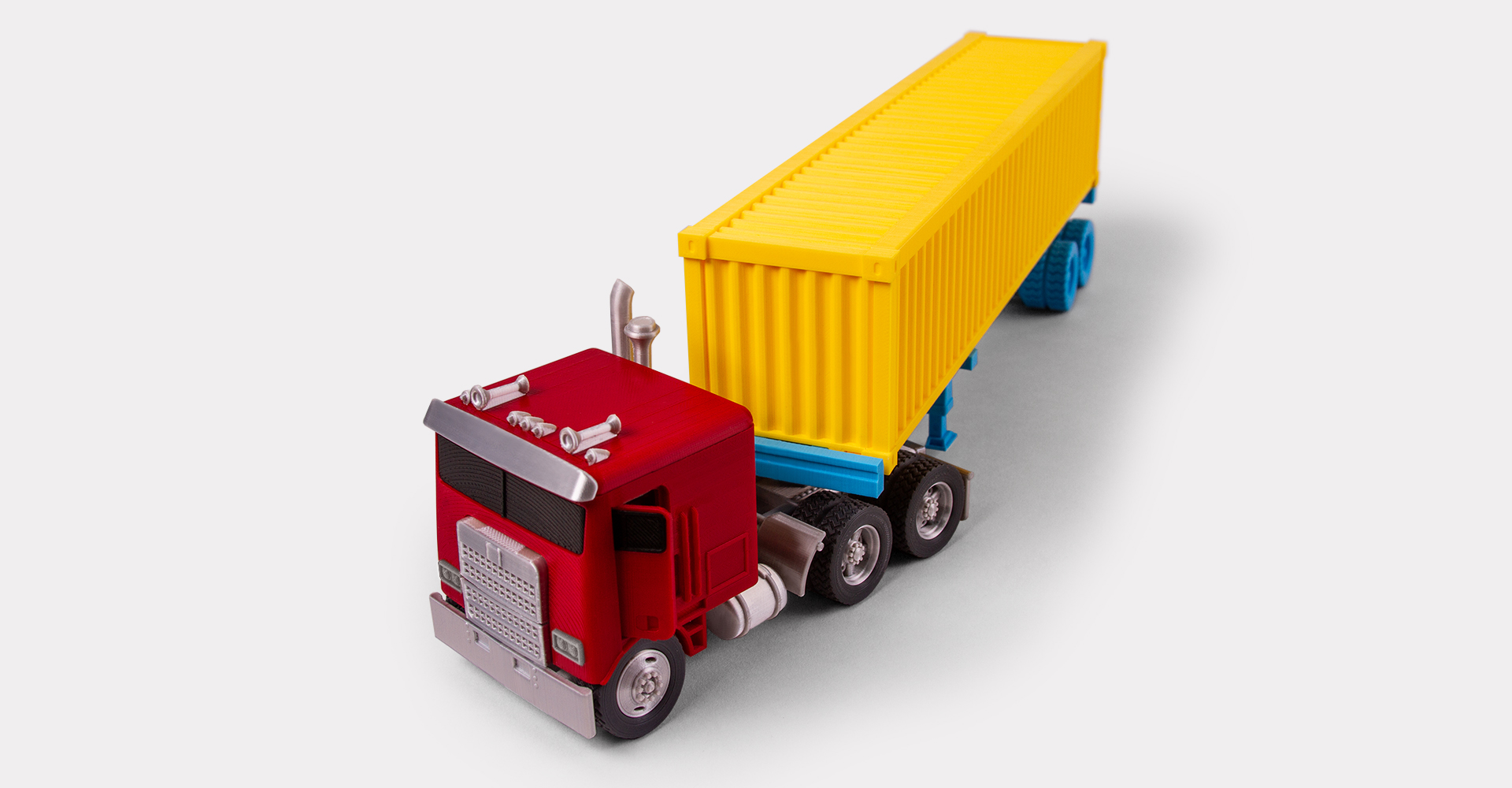

You can also connect the truck linkages I designed previously (Foldable fuel tank trailer, Container scale model, Foldable Trailer Frame). It's even better if you print them together and enjoy.

1 : 48 scale
Biggest part size x 58mm, y 131mm, z 78mm

PRUSA Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 2.4~2.6mm or Retraction Distance : 1.2mm, Retraction Vertical Lift : 0.6mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 100% / First Layer Width : 98% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 35%
Additions Raft : OK / Brim : NO / Support : NO
PRUSA Slicing Settings PrusaSlicer
PRUSA MK3 Layer Height : 0.1mm, 0.2mm / Raft : OK / Brim : NO / Support : NO
Ender Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 5.4mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 120% / First Layer Width : 95% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 55%
Additions Raft : OK / Brim : NO / Support : NO
CR-10S Pro Slicing Settings Cura
Quality Layer Height : 0.1mm, 0.2mm / Line Width : 0.4mm
Shell Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6
Infill Infill Density : 20% / Patten : Grid
Material Flow : 100% / Retraction Distance : 5.4mm
Build Plate Adhesion Raft / Raft Extra Margin : 3mm / Raft Air Gap : 0.3~0.32mm
File
File 70.2 MB
Release Date
2021-07-14
Average Time
[0.1mm] Back Light : 20m
[0.1mm] Body : 10h 20m
[0.1mm] Connections : 15m
[0.1mm] Door Window : 5m
[0.1mm] Front Tire : 30m
[0.1mm] Head : 5h 45m
[0.1mm] Head Bar : 5m
[0.1mm] Light : 35m
[0.1mm] Tire : 45m
[0.1mm] Vent : 2h 5m
[0.1mm] Window : 25m
  • Can151219879365
    2021-09-21 19:22:16

    Hello
    what are the priting settings?
    do i have to re size it?

    fab365
    2021-09-22 23:46:32

    No special settings are required for you to print this design.
    Just generate the G-code in high quality mode from the slicer.
    I recommend low print speed like 30mm/sec.
    Thank you~

    fab365
    2021-09-22 23:47:07

    Most of cases, Bigger print will be better.

  • mariocotrim3645
    2021-08-15 18:43:29

    Hello, its possible in 1:64 scale????

    fab365
    2021-08-21 21:40:10

    Reducing the size of printing reduces the gaps between parts and may prevent them from moving after printing.

  • jeffledger3695
    2021-08-02 12:36:58

    Are the wheel suppose to turn? I've managed to break three of them trying to get them to rotate.

    fab365
    2021-08-05 13:52:04

    All wheels rotate. If the wheels don't spin on your prints, check out the Print-tips.
    https://fab365.net/pages/14013138303/parts_not_move

  • m.grabowski19813623
    2021-07-17 19:27:40

    Hello
    whether it will print on mini +

    fab365
    2021-07-17 19:55:46

    The biggest part size of this design is x 58mm, y 131mm, z 78mm
    Prusa mini bed size is 180mm X 180mm X 180mm
    So you can print this on Prusa mini.
    Please enjoy.
