GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf. This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.

Fab365.net is constantly growing. With challenging and diverse attempts, 3D printing design technology is growing and improving day by day. This is thanks to our customers, and in order to reward them, we are always trying to make what they have requested from our customers.
So this time, I designed the Star Wars X-wing, which has been the number one request for a long time.

I'm obsessed with dividing color parts these days. This is because it brings out the charm of 3D printing by combining the colors of the filament well. There are a few parts, but I hope you can feel the charm of the filament color combination through this design.

Things to note when assembling are as follows.

1. When connecting the upper and lower parts of the fuselage, there are parts that are inserted on the left and right. When connecting the fuselage parts, be careful to connect the fuselage while pressing these parts strongly left and right.
2. It is good to use adhesive to attach color parts, but it can be confusing, so please check the location carefully before using adhesive.
3. The laser gun at the tip of the wing is connected by sliding it. However, you have to push it all the way to the end to insert it, so please check it carefully.
4. Before assembling the wing and fuselage, it is recommended to glue the deflector shield projector of the wing first.

Please check the video for more details.

1 : 72 Scale
Largest part in printing, size = X 144mm, Y 55mm, Z 36mm, After full assembly size= X 149mm, Y 176mm, Z 30mm

PRUSA Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 2.4~2.6mm or Retraction Distance : 1.2mm, Retraction Vertical Lift : 0.6mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 100% / First Layer Width : 98% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 35%
Additions Raft : OK / Brim : NO / Support : NO
PRUSA Slicing Settings PrusaSlicer
PRUSA MK3 Layer Height : 0.1mm, 0.2mm / Raft : OK / Brim : NO / Support : NO
Ender Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 5.4mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 120% / First Layer Width : 95% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 55%
Additions Raft : OK / Brim : NO / Support : NO
CR-10S Pro Slicing Settings Cura
Quality Layer Height : 0.1mm, 0.2mm / Line Width : 0.4mm
Shell Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6
Infill Infill Density : 20% / Patten : Grid
Material Flow : 100% / Retraction Distance : 5.4mm
Build Plate Adhesion Raft / Raft Extra Margin : 3mm / Raft Air Gap : 0.3~0.32mm
File 13.7 MB
Release Date
Average Time
[0.1mm] Canopy : 30m
[0.1mm] Fuselage : 6h 30m
[0.1mm] Rear Fuselage : 30m
[0.1mm] Generator : 30m
[0.1mm] Wing : 7h 30m
[0.1mm] Wing Upper Parts : 1h 30m
[0.1mm] Wing Under Parts : 1h 30m
[0.1mm] Engine-A : 30m
[0.1mm] Engine-B : 35m x3
[0.1mm] Laser Tip : 10m x4
[0.1mm] Yellow Parts : 10m
[0.1mm] Red Parts : 30m
[0.1mm] Grey Parts : 20m x4
[0.1mm] Pedestal : 7h 30m
  • ugopolleschi1539
    2021-10-03 16:45:44

    good morning
    i have try to print the body of x-wing but i dont understand why the first layer come out not perfect.
    i have a prusa mk3s with prusaslicer.

    2021-10-03 16:59:14

    If you used Raft, that's natural, if you didn't use Raft, the nozzle is too high.
    Please readjust the nozzle height.

    2021-10-04 02:19:42

    i haven't used raft and the first layer calibration is good

    2022-02-08 22:27:30

    If primo layer means first layer, then try reducing it to 0.2 mm as you can se its set up to 0.4 mm (very high) and maybe that is the cause of that very fat first layer.
    Set first layer and all other layer heoght to 0.2 use glue stick to better adhesion to the bed and fine tune your bed leveling.

  • luckygfarm635982
    2021-09-22 22:07:22

    I have made 4.. great model

    2021-09-30 15:53:55

    That is great!

  • of_no_importance
    2021-09-13 18:07:23

    Cannot for the life of me get the wings to print on my mk3s+. Tried using the settings for PrusaSlicer recommended in other comments, using brim, different filaments and brands (both PLA and PETG), smooth vs textured PEI sheet, recalibrating everything, etc. I must be at like 8 failed prints now.

    Eventually at some point during the print something always comes loose or tips over.

    2021-09-15 17:01:56

    In your case, it is because the adhesion between the printer's bed and the filament does not match well.
    The solution to this is to use Raft or hair gel.
    For more information, check out the Print tips.

    2021-09-15 17:03:28

    In our experience, powder coated beds do not have high adhesion.

  • hackthis02
    2021-09-04 03:44:00

    In the PrusaSlicer, I have to set the scale to 108% to get the support on the wings to print correctly. At 100% it looks like the included photo. Is there an option I'm not setting correctly?

    2021-09-04 23:56:27

    Try enabling 'Detect Thin Walls' in the print settings tab.

    2021-09-05 11:37:51

    That did it. Thank you.

  • Old urchin
    2021-09-03 13:18:28

    It's awesome, I like it very much~~~

    2021-10-03 17:02:18

    Awesome quality printing!
    Thank you for printing and posting!

  • TraceyAC
    2021-08-25 18:38:48

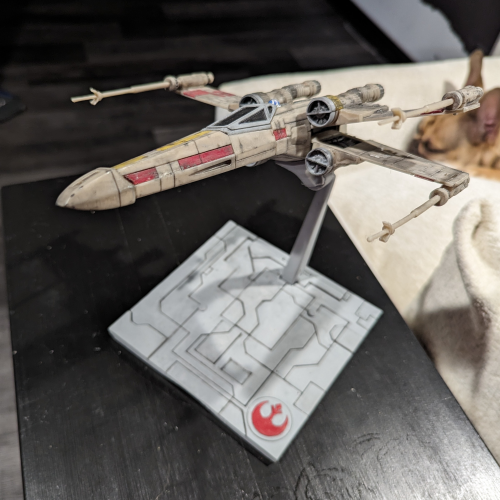

    Lovely model, thank you! I printed it scaled up to 125% because the original size wings were a little delicate. Large parts printed on Creality CR10 V2, greebles and little parts on my Flashforge Finder.

    2021-10-03 18:15:18

    Wow! Awesome printing of Fab365 X-wing!
    You printing experiences help to someone want to print.
    Thank you for printing and posting!

  • DareBakCZE
    2021-08-17 00:46:27

    Amazing model. Printed easily.

    Was wondering is there an Y-wing in the making (or are there any plans for making it)? It would be awesome to add it to the X-wing :) Cheers.

    2021-10-03 18:16:14

    Could you ask or vote on my request page please?
    Thank you~

  • space99
    2021-08-12 06:37:36

    what are your settings for the wing? my settings came out stringy or perfect but breaks when removing or need a brim.

  • DarthJ
    2021-08-10 04:11:10

    Any special settings we need to print this? Getting ready to print on my CR6 SE using PS 2.3.1.


  • koturmdq
    2021-08-08 06:11:58

    Fab365, thank you for existing and releasing designs for free :), in my family we love your designs, we will see how this beautiful ship comes out. Recommended Infill?

    2021-08-08 17:12:38

    You are welcome! I use 20% infill usually.
    I hope you enjoy this design.
