GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf.   This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.

Fab365.net is constantly growing. With challenging and diverse attempts, 3D printing design technology is growing and improving day by day. This is thanks to our customers, and in order to reward them, we are always trying to make what they have requested from our customers.

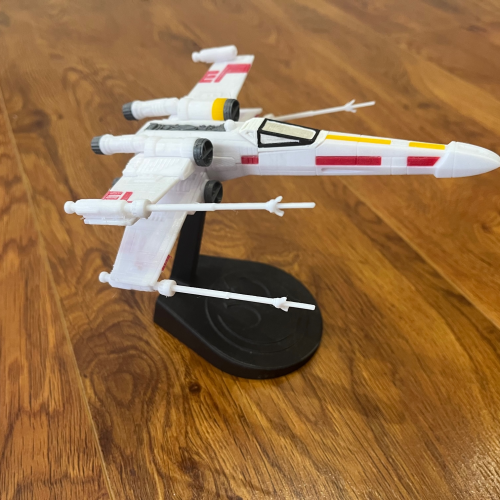

So this time, I designed the Star Wars X-wing, which has been the number one request for a long time.

I'm obsessed with dividing color parts these days. This is because it brings out the charm of 3D printing by combining the colors of the filament well. There are a few parts, but I hope you can feel the charm of the filament color combination through this design.

Things to note when assembling are as follows.

1. When connecting the upper and lower parts of the fuselage, there are parts that are inserted on the left and right. When connecting the fuselage parts, be careful to connect the fuselage while pressing these parts strongly left and right.
2. It is good to use adhesive to attach color parts, but it can be confusing, so please check the location carefully before using adhesive.
3. The laser gun at the tip of the wing is connected by sliding it. However, you have to push it all the way to the end to insert it, so please check it carefully.
4. Before assembling the wing and fuselage, it is recommended to glue the deflector shield projector of the wing first.

Please check the video for more details.

1 : 72 Scale
Largest part in printing, size = X 144mm, Y 55mm, Z 36mm, After full assembly size= X 149mm, Y 176mm, Z 30mm

PRUSA Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 2.4~2.6mm or Retraction Distance : 1.2mm, Retraction Vertical Lift : 0.6mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 100% / First Layer Width : 98% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 35%
Additions Raft : OK / Brim : NO / Support : NO
PRUSA Slicing Settings PrusaSlicer
PRUSA MK3 Layer Height : 0.1mm, 0.2mm / Raft : OK / Brim : NO / Support : NO
Ender Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 5.4mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 120% / First Layer Width : 95% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 55%
Additions Raft : OK / Brim : NO / Support : NO
CR-10S Pro Slicing Settings Cura
Quality Layer Height : 0.1mm, 0.2mm / Line Width : 0.4mm
Shell Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6
Infill Infill Density : 20% / Patten : Grid
Material Flow : 100% / Retraction Distance : 5.4mm
Build Plate Adhesion Raft / Raft Extra Margin : 3mm / Raft Air Gap : 0.3~0.32mm
File
File 13.7 MB
Average Time
[0.1mm] Canopy : 30m
[0.1mm] Fuselage : 6h 30m
[0.1mm] Rear Fuselage : 30m
[0.1mm] Generator : 30m
[0.1mm] Wing : 7h 30m
[0.1mm] Wing Upper Parts : 1h 30m
[0.1mm] Wing Under Parts : 1h 30m
[0.1mm] Engine-A : 30m
[0.1mm] Engine-B : 35m x3
[0.1mm] Laser Tip : 10m x4

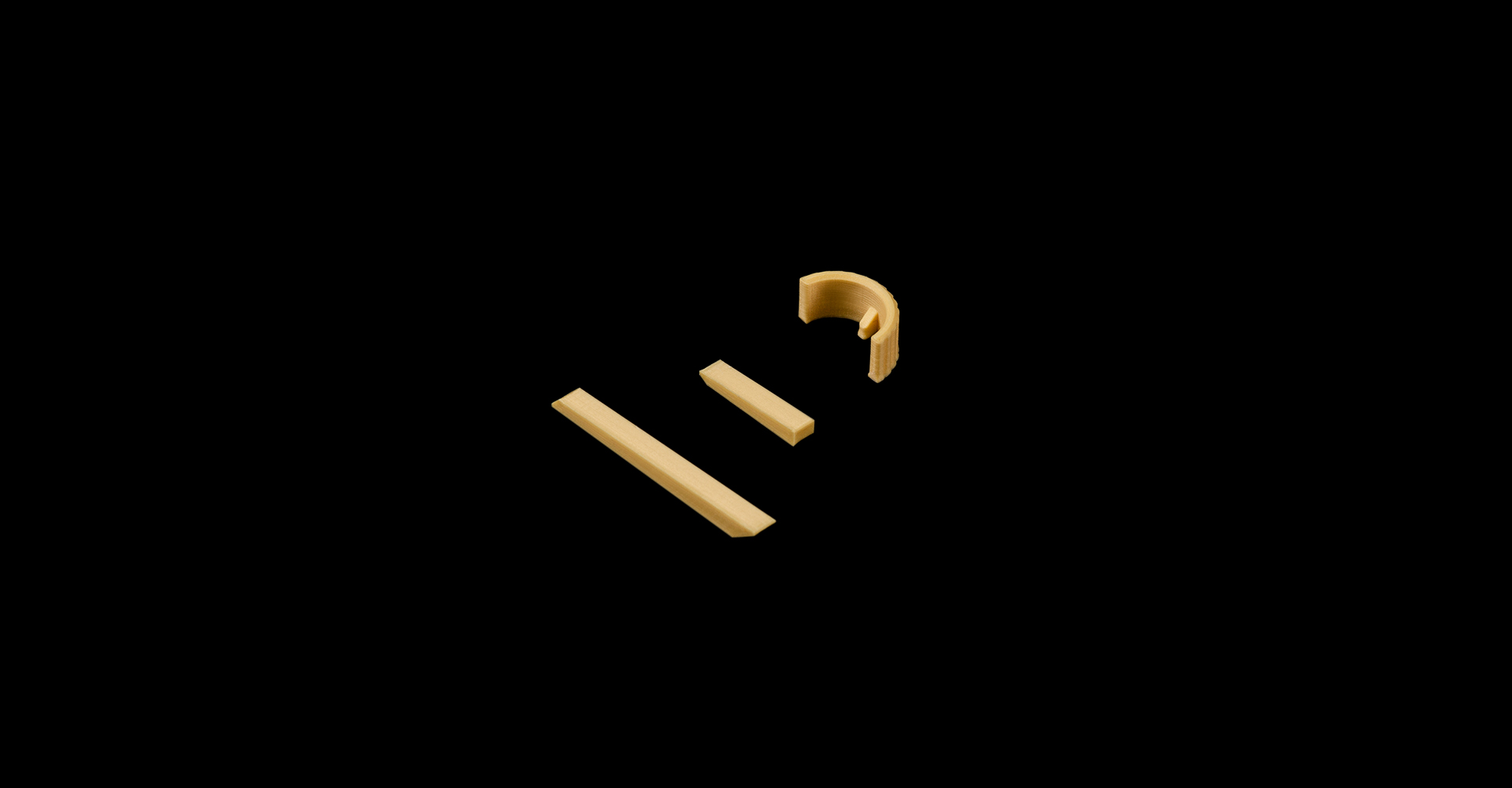

[0.1mm] Yellow Parts : 10m
[0.1mm] Red Parts : 30m
[0.1mm] Grey Parts : 20m x4
[0.1mm] Pedestal : 7h 30m
