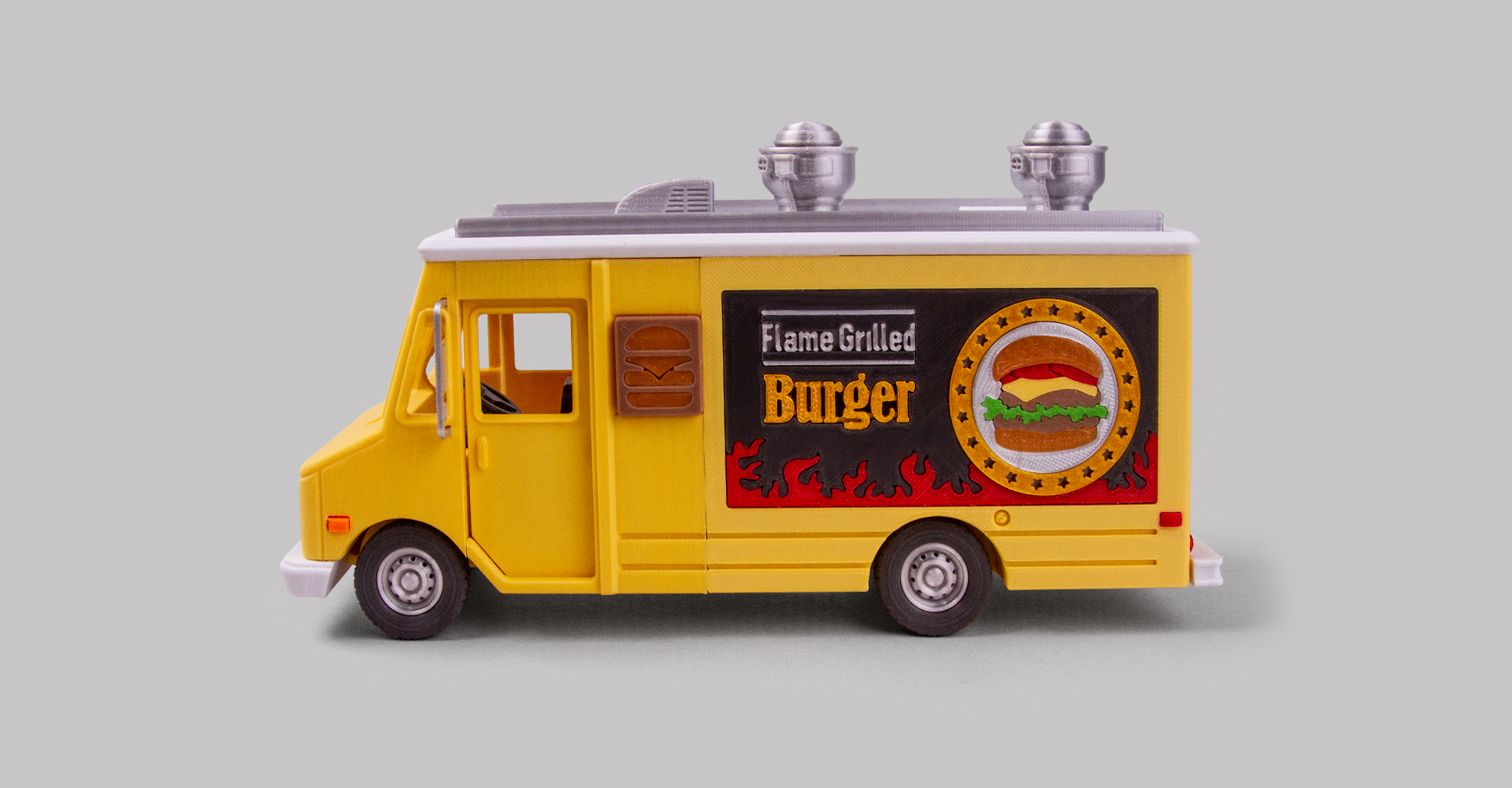

Burger food truck

$ 6.79

Designer

GOODesign

GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf.   This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.

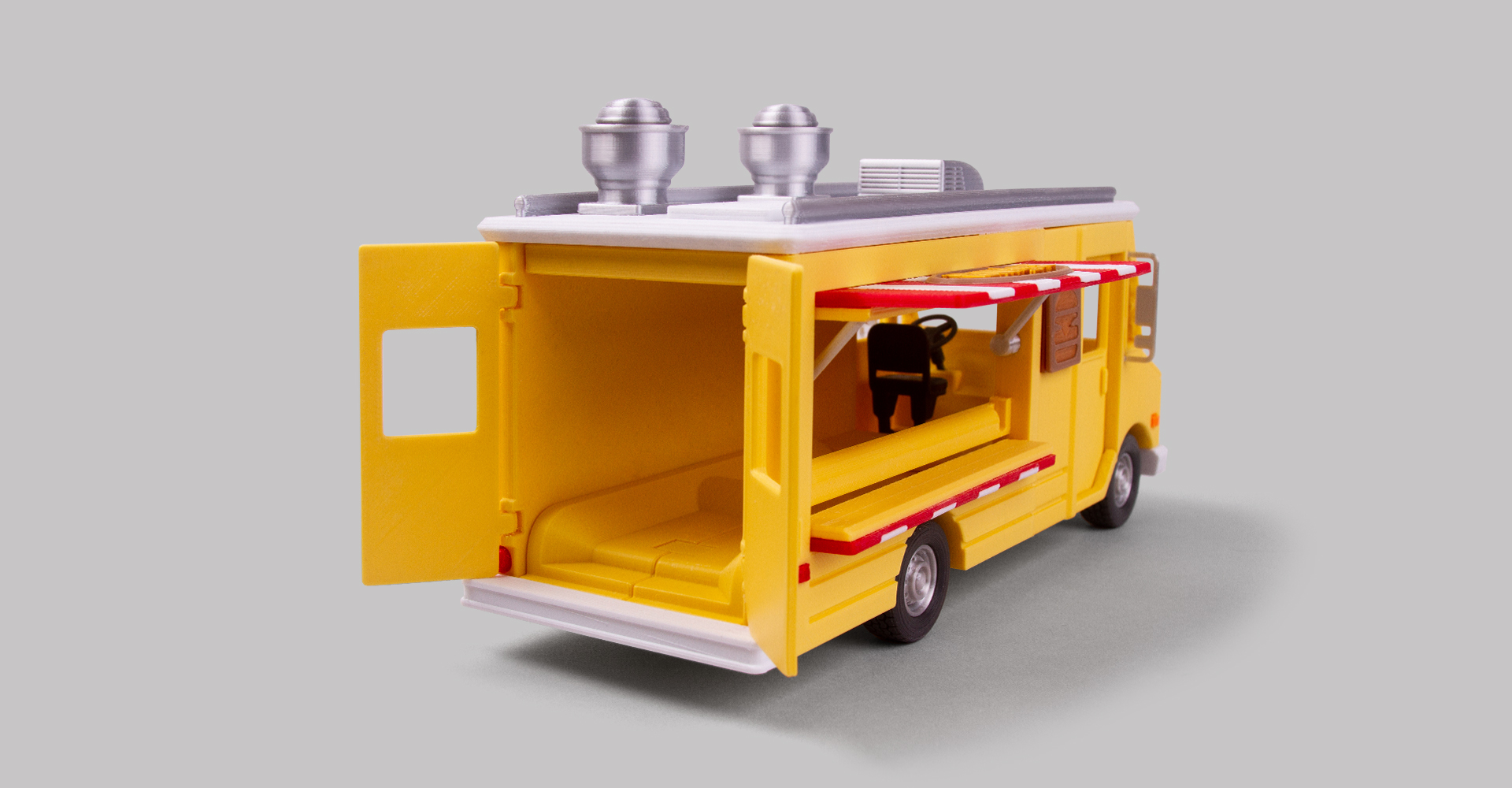

Food trucks are very close to our daily life. Food trucks are themselves to their owners and a familiar streetscape to people. And we have food trucks and lots of memories. Especially in difficult times like now, it is also a symbol of hope for young entrepreneurs. So this time, I designed a Foldable Food truck.
I especially like hamburgers, and when I ate a hamburger at a food truck in the United States, a strong impression remained, so I made it into a hamburger food truck.

The food truck always draws strong graphics throughout the truck to make it stand out, and I tried to reproduce this with color separation as much as possible. It has resulted in a huge amount of parts, but the results are very satisfying.
The color I printed is my taste, and if you print the color according to your taste, you can make a variety of hamburger food trucks in different colors! We look forward to food trucks printed in various colors from our customers!

Please watch the video to see the process of printing, folding and completing!
1) If you press the middle part of the vehicle body together with the front part, it will fit well.

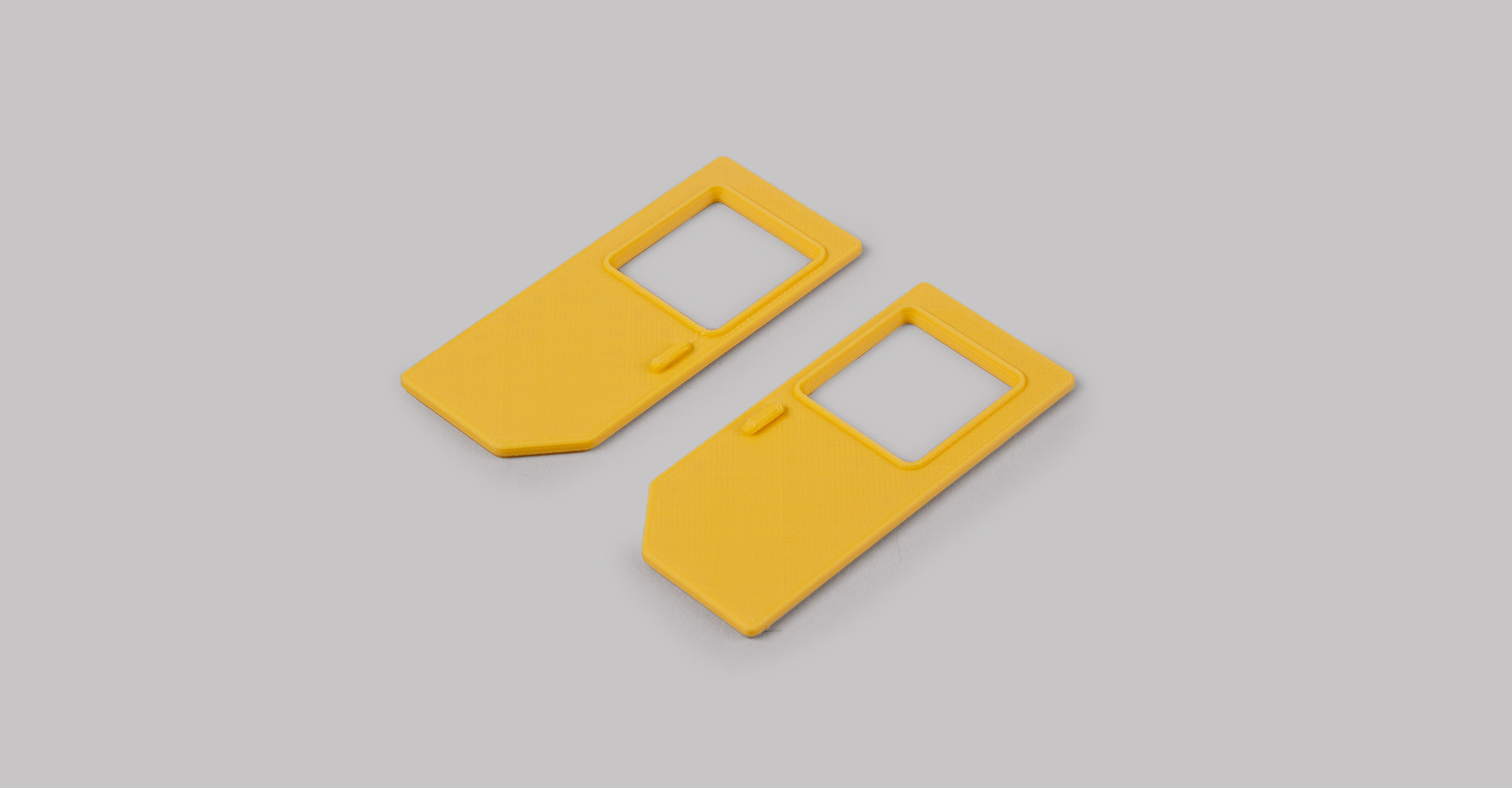

2) When connecting the body of the vehicle, insert the door leaf first and connect it!
3) Awning has a groove in the bottom, please check the direction of this.

1 : 48 scale
x 180mm, y 116mm, z 45mm

PRUSA Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 2.4~2.6mm or Retraction Distance : 1.2mm, Retraction Vertical Lift : 0.6mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 100% / First Layer Width : 98% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 35%
Additions Raft : OK / Brim : NO / Support : NO
PRUSA Slicing Settings PrusaSlicer
PRUSA MK3 Layer Height : 0.1mm, 0.2mm / Raft : OK / Brim : NO / Support : NO
Ender Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 5.4mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 120% / First Layer Width : 95% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 55%
Additions Raft : OK / Brim : NO / Support : NO
CR-10S Pro Slicing Settings Cura
Quality Layer Height : 0.1mm, 0.2mm / Line Width : 0.4mm
Shell Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6
Infill Infill Density : 20% / Patten : Grid
Material Flow : 100% / Retraction Distance : 5.4mm
Build Plate Adhesion Raft / Raft Extra Margin : 3mm / Raft Air Gap : 0.3~0.32mm
File
File 59.8 MB
Average Time
[0.1mm] Buger Icon in & Out Parts : 25m
[0.1mm] Roof Parts : 2h 15m
[0.1mm] Awnig Parts : 1h 15m
[0.1mm] Panel Parts : 1h 40m
[0.1mm] Buger Parts : 37m
[0.1mm] Seat & Steering Wheel : 35m
[0.1mm] Rear View Mirror & pole : 15m
[0.1mm] Light Parts : 10m
[0.1mm] Wheel cap : 30m
[0.1mm] Tire : 1h 15m
[0.1mm] Side Doors : 45m
[0.1mm] Roof : 3h 20m
[0.1mm] Gril & Front Parts : 20m
[0.1mm] Bumpers : 50m
[0.1mm] Body - Readr : 8h
[0.1mm] Body - Middle : 4h 45m
[0.1mm] Body - Front : 3h 5m
[0.1mm] Body - Bottom : 7h 35m
