Blade's Dodge charger

$ 5.49

Designer

GOODesign

GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf. This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.

Dodge Charger is loved by many and has appeared in numerous movies. So many people, when I release a version that appears in a certain movie, ask again and again.
In response to many requests like this, this time I designed the Dodge Charger, which appeared in the 2002 action movie "Blade 2" about vampires.
It features vampire-fighting UV headlamps, an aspirated engine for high output, and a bulging hood.
In particular, I designed the hood to print without support, with holes for intake.

FAB365 is doing its best to answer customer requests as much as possible.

We are waiting for many requests and votes from our customers.
thank you.

PRUSA Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 2.4~2.6mm or Retraction Distance : 1.2mm, Retraction Vertical Lift : 0.6mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 100% / First Layer Width : 98% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 35%
Additions Raft : OK / Brim : NO / Support : NO
PRUSA Slicing Settings PrusaSlicer
PRUSA MK3 Layer Height : 0.1mm, 0.2mm / Raft : OK / Brim : NO / Support : NO
Ender Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 5.4mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 120% / First Layer Width : 95% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 55%
Additions Raft : OK / Brim : NO / Support : NO
CR-10S Pro Slicing Settings Cura
Quality Layer Height : 0.1mm, 0.2mm / Line Width : 0.4mm
Shell Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6
Infill Infill Density : 20% / Patten : Grid
Material Flow : 100% / Retraction Distance : 5.4mm
Build Plate Adhesion Raft / Raft Extra Margin : 3mm / Raft Air Gap : 0.3~0.32mm
File
File 75.5 MB
Release Date
2021-07-26
Average Time
[0.1mm] Body : 8h 55m
[0.1mm] Bumper Engine : 35m
[0.1mm] Hood : 1h 40m
[0.1mm] Tire : 1h 5m

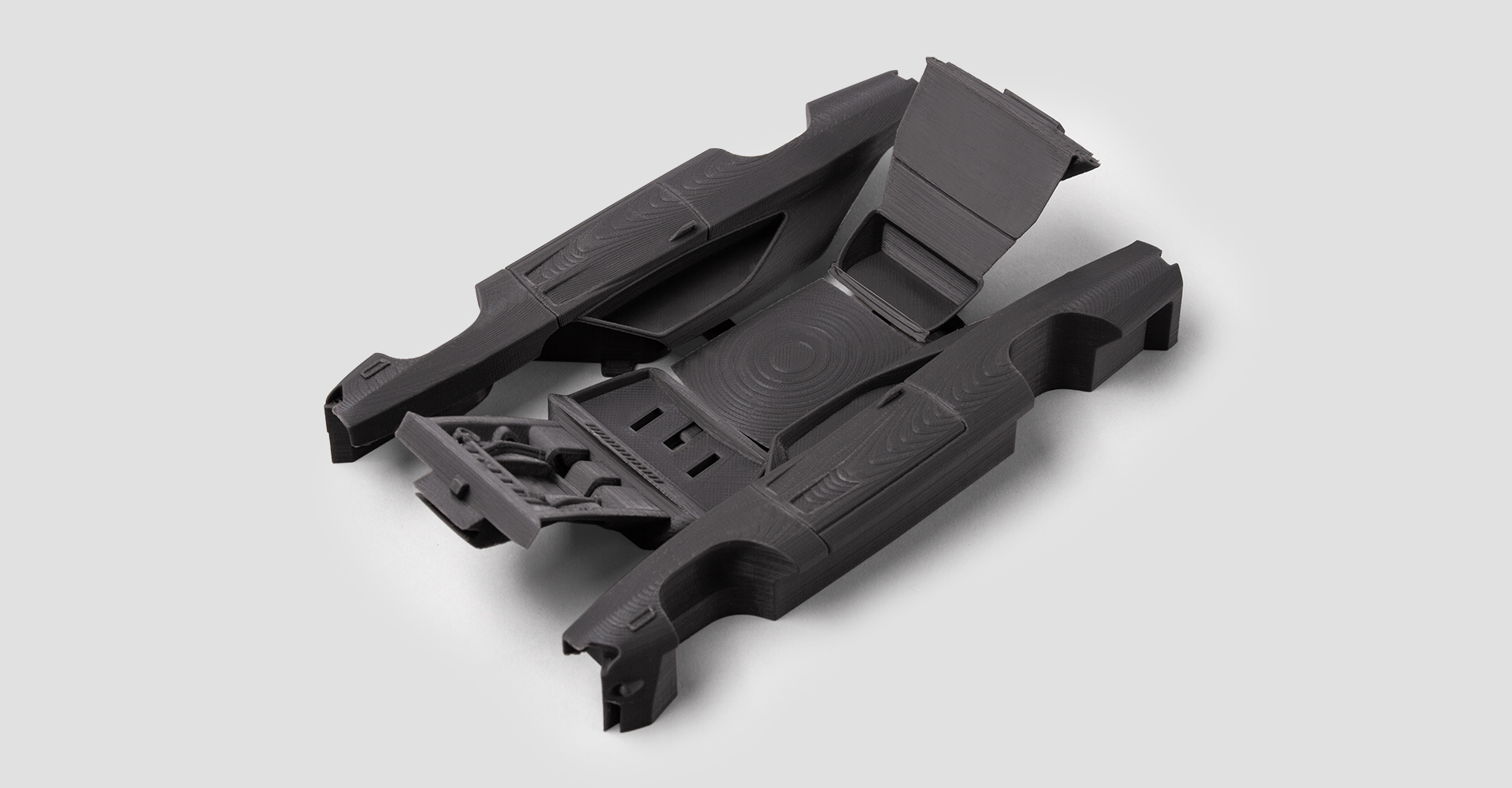

[0.1mm] UnderBody : 5h
[0.1mm] window : 50m
  • joaojoaovitor9196000
    2022-11-02 07:42:02
  • usn.spence927962
    2021-11-10 10:13:56

    I just bought this, what are the overall dimesnsions so I can scale according? Thanks

  • Bcoe
    2021-08-07 10:37:06

    Will the Dom's charger parts fit on this model?

    fab365
    2021-08-08 18:18:24

    No, it won't. Dom's charger parts fit on this.
    https://fab365.net/items/234
    Please enjoy~
