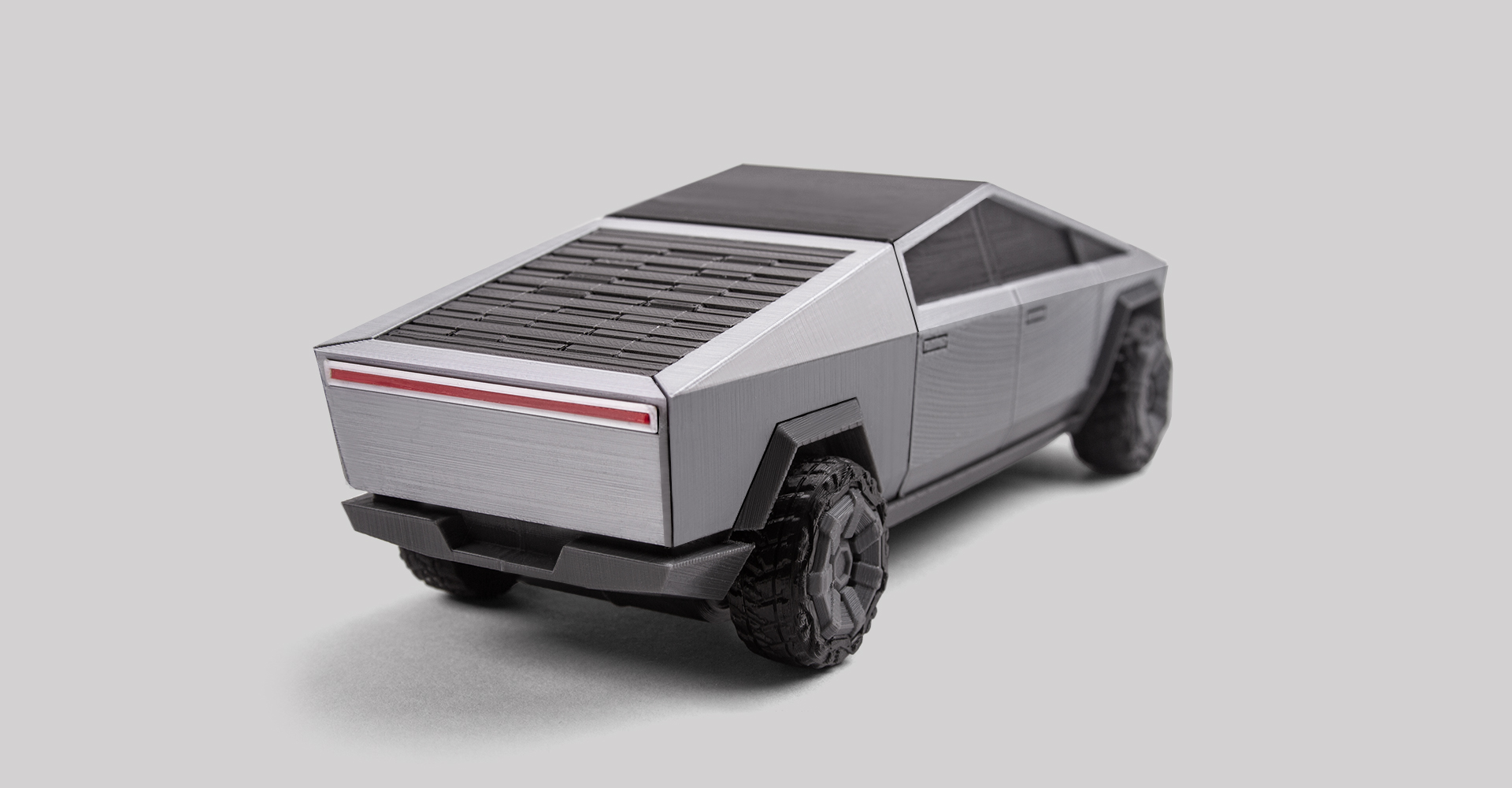

Cyber Truck Ver2.0

$ 6.49

Designer

GOODesign

GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf.   This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.

The second half of 2021 is what those who pre-ordered the Cyber Truck have been waiting for. It is said that cyber trucks will be delivered to customers in the second half of 2021, so it is likely that we will see cyber trucks on the road soon.
In the meantime, our previously designed Foldable Cyber truck has been very popular with customers. However, many customers have also requested some improvements. Accordingly, we created an improved foldable cyber truck.

Improvements include:
1. Color division is applied to almost all parts such as tires, wheels, and the lower part of the body.
2. I designed the front and rear windows to stand up and print so that the layer traces are less visible.
3. We made broken windows requested by many customers. Due to the size of the desktop 3D printer and the limitation of the most used 0.4mm nozzle, the appearance of the broken window could not be reproduced as it is, but it was designed by omitting and emphasizing the broken characteristics as much as possible.

I'd like to see people who pre-ordered their cyber trucks get their products and run through the streets as soon as possible.

1 : 38 scale
When expanded, size = X 117mm, Y 187mm, Z 60mm After folding X 60mm, Y 152mm, Z 50mm

PRUSA Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 2.4~2.6mm or Retraction Distance : 1.2mm, Retraction Vertical Lift : 0.6mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 100% / First Layer Width : 98% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 35%
Additions Raft : OK / Brim : NO / Support : NO
PRUSA Slicing Settings PrusaSlicer
PRUSA MK3 Layer Height : 0.1mm, 0.2mm / Raft : OK / Brim : NO / Support : NO
Ender Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 5.4mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 120% / First Layer Width : 95% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 55%
Additions Raft : OK / Brim : NO / Support : NO
CR-10S Pro Slicing Settings Cura
Quality Layer Height : 0.1mm, 0.2mm / Line Width : 0.4mm
Shell Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6
Infill Infill Density : 20% / Patten : Grid
Material Flow : 100% / Retraction Distance : 5.4mm
Build Plate Adhesion Raft / Raft Extra Margin : 3mm / Raft Air Gap : 0.3~0.32mm
File
File 23.4 MB
Average Time
[0.1mm] Body : 15h
[0.1mm] Underbody : 10h 30m
[0.1mm] Window-Front : 1h 30m
[0.1mm] Window-Roof : 40m
[0.1mm] Window : 1h
[0.1mm] Broken Window : 30m
[0.1mm] Tire : 2h 30m
[0.1mm] Wheel : 40m
[0.1mm] Light : 10m
[0.1mm] Taillight : 1m
[0.1mm] Tonneau Cover : 1h
