Thin Weaving Lamp

$ 6.00

Designer

Photoweave

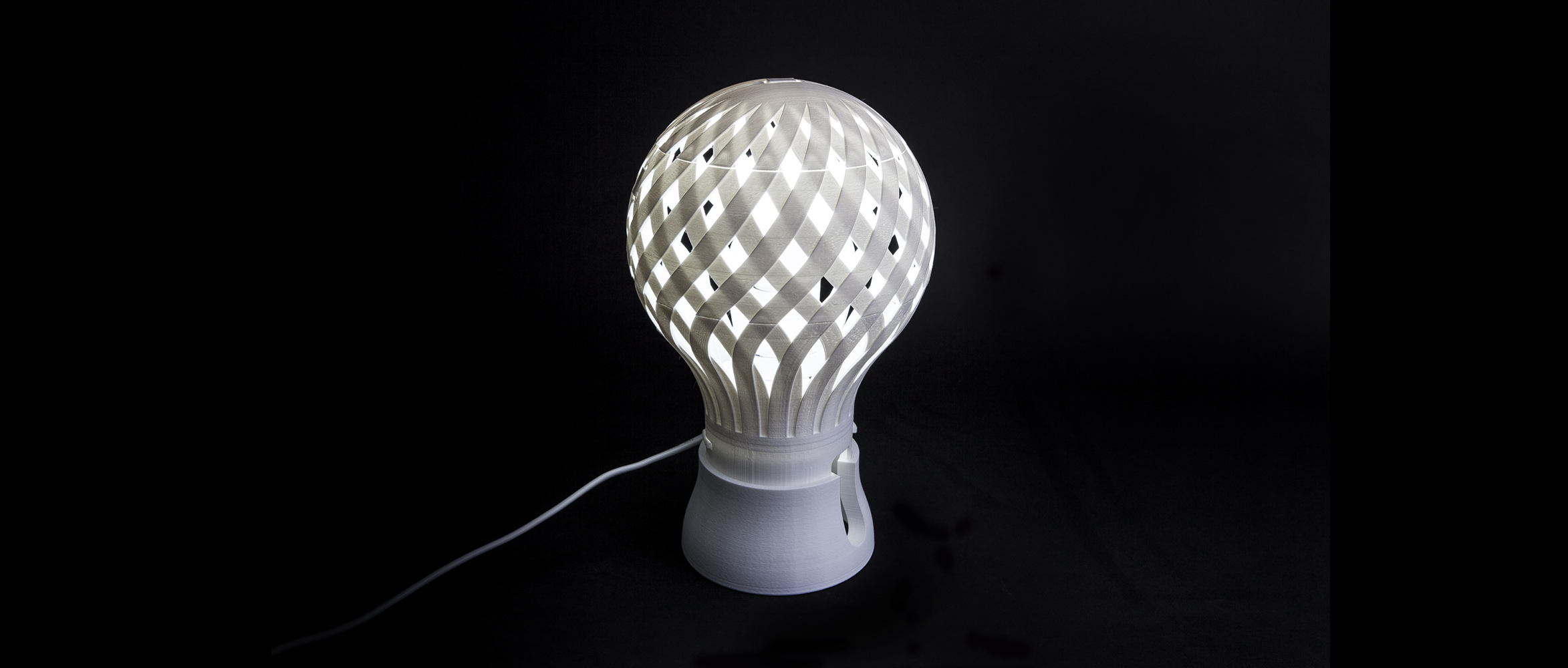

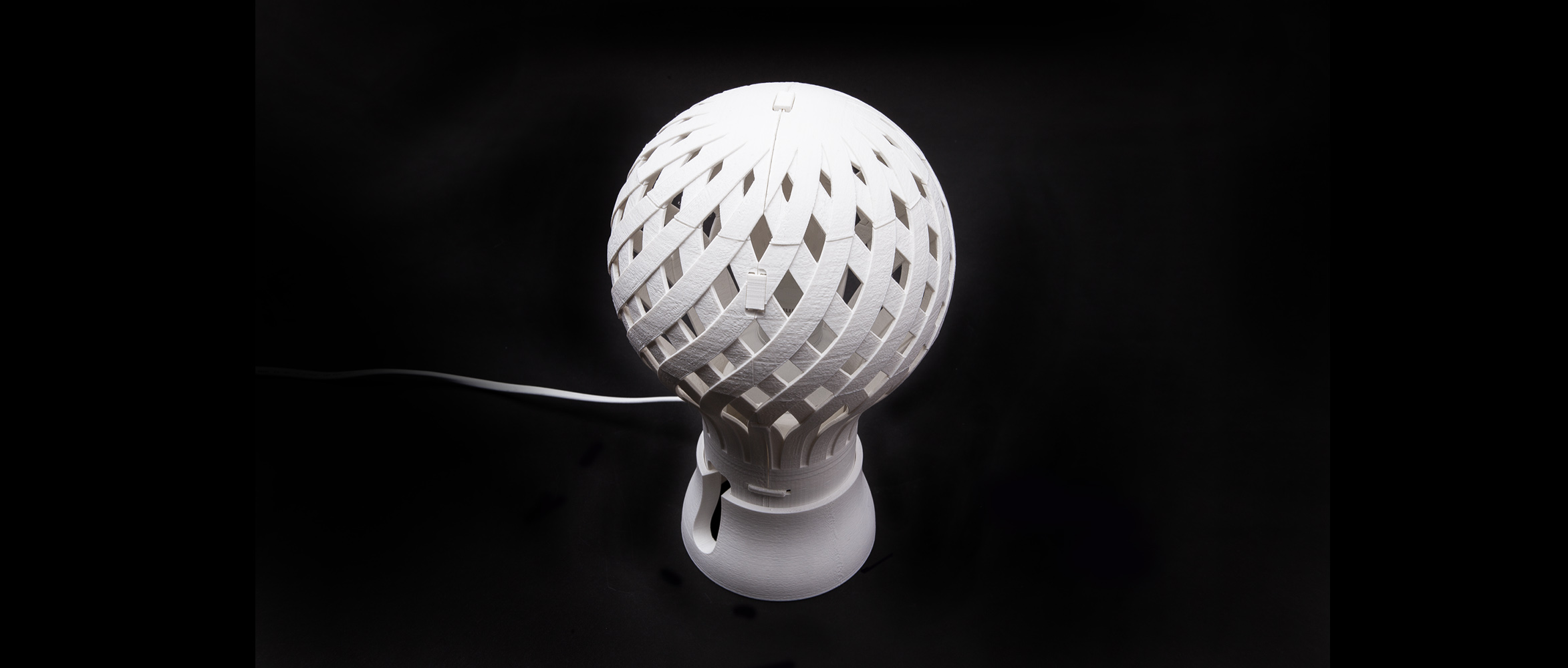

It’s first series of desktop lighting. It, with its weaving pattern of similar type to bamboo crafts, is a lighting designed in harmony with the most common shape of curve. The bidirectional band that intersects outside and inside is so thin that it seems very weak, but in fact it is very strong as it is entangled and swirled mutually in opposite direction. This structure uses less materials, while has less transformation by impact and force from several angles. Also this structure creates space among bands, from which heat is easily discharged for not having transformation by the heat of illumination.

The another advantage of this illumination is that the light permeability is different between the part of which the band intersects and the part that is not and that it can be felt only when turning on the lighting. Aesthetically, it gives a feeling of being the oriental bamboo crafts as if you watch artistic handcrafts.

The interior lighting fixture was made to be easily produced by combining it with cheap lighting part that you can find from around, and repaired. However, you must use only LED bulb, because the common light bulb can be transformed as it emits lots of heat.

It was divided in small size by considering the maximum printing-out size of common desktop FDM 3D printer for more people to have this lighting fixture. Therefore, anyone who can have 3D printer or who can use it, though it is not an expensive 3D printer, can print it out.

Also it was designed to print out with some support in order to quit support, to finish and to reduce the process stress. And it was designed for anybody, though he cannot trim a support, to get a good result by preventing its trace from coming out in the way that support is generated inside even in case of needing a support. Of course, you will get the better product if printing out with a printer that allows the better result than FDM (for example, SLA, DLP, SLS etc.).

Each part of them was designed to combine with a small clip, and needing not much force to insert and quit it its coherence is rather so strong that it cannot be easily separated.

It can be used at anywhere including office, library, living room, bedroom etc., and can produce several atmospheres according to the brightness of bulb. Its whole size is 16cm (width) x16cm (depth) x27cm (height).

PRUSA Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 2.4mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 150% / First Layer Width : 100% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 30%
Additions Raft : OK / Brim : NO / Support : NO
Ender Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 4mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 120% / First Layer Width : 100% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 40%
Additions Raft : OK / Brim : NO / Support : NO
File
File 23.6 MB
Release Date
2016-10-12
Recommend Print
Makerbot Replicator 5th Gen
Makerbot Replicator 2
Material Color
Ivory
White
Average Time
[0.2mm] 28h
