A-10 Thunderbolt Armament set

$ 3.49

Designer

GOODesign

GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf.   This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.

※ A-10 airplanes are not included.

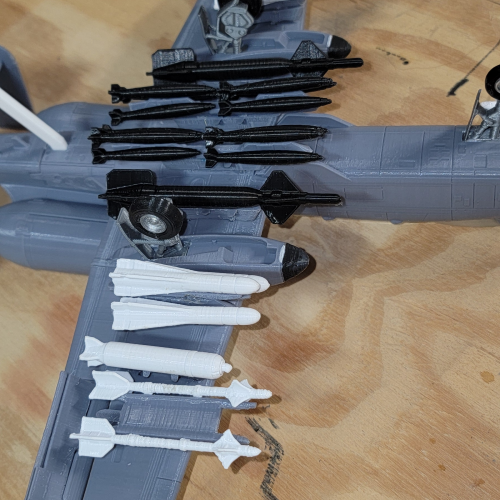

This item is an armament set for the previously designed A-10 Thunderbolt.
The list of mounted weapons is as follows:

ALQ-131 ECM X 1ea
AIM-9 Sidewinder X 2ea
CBU-87 X 2ea
AGM-65 X 6ea
GBU-24 X 2ea
MK-82 X 12ea

If you are going to print these, we strongly recommend using Brim.
Be sure to use glue when mounting these weapons on airplanes.

With this armament set, it is now possible to reproduce the sortie appearance of the A-10.
Please refer to the video for the location of the weapons and the process of attaching them.

Printing on Enders and assembling video

The A-10 Warthog plane can be downloaded from the link below.
A-10 Thunderbolt Warthog

1 : 48 Scale

PRUSA Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 2.4mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 100% / First Layer Width : 100% / First Layer Speed : 80%
Infill Interlor Fill Percentage : 15% / Outline Overlap : 30%
Additions Raft : OK / Brim : NO / Support : NO
PRUSA Slicing Settings PrusaSlicer
PRUSA MK3 Layer Height : 0.1mm, 0.2mm / Raft : OK / Brim : NO / Support : NO
Ender Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 5.4mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 120% / First Layer Width : 150% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 15% / Outline Overlap : 30~40%
Additions Raft : OK / Brim : NO / Support : NO
CR-10S Pro Slicing Settings Cura
Quality Layer Height : 0.1mm, 0.2mm / Line Width : 0.4mm
Shell Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6
Infill Infill Density : 20% / Patten : Grid
Material Flow : 100% / Retraction Distance : 5.4mm
Build Plate Adhesion Raft / Raft Extra Margin : 3mm / Raft Air Gap : 0.3~0.32mm
File
File 5.1 MB
Average Time
[0.1mm] Fuselage Pylons : 1h / 2.7g
[0.1mm] Port Pylons : 1h / 3.5g
[0.1mm] Starboard Pylons : 1h / 3.5g
[0.1mm] Dual Missile Rail Adapter : 1h / 1.6g
[0.1mm] Triple Ejector Rack : 1h / 2g
[0.1mm] Launch Rail : 10m / 0.5g X6
[0.1mm] Multiple Ejector Rack : 1h 30m / 2.5g
[0.1mm] ALQ-131 ECM : 1h 20m / 3g
[0.1mm] AIM-9 Sidewinder : 40m / 0.8g X2
[0.1mm] CBU-87 : 1h / 2g X2
[0.1mm] AGM-65 : 1h / 2g X6
[0.1mm] GBU-24 : 2h / 4g X2
[0.1mm] MK-82 : 25m / 0.7g X12
