ready-mixed concrete truck

$ 5.49

Designer

GOODesign

GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf. This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.

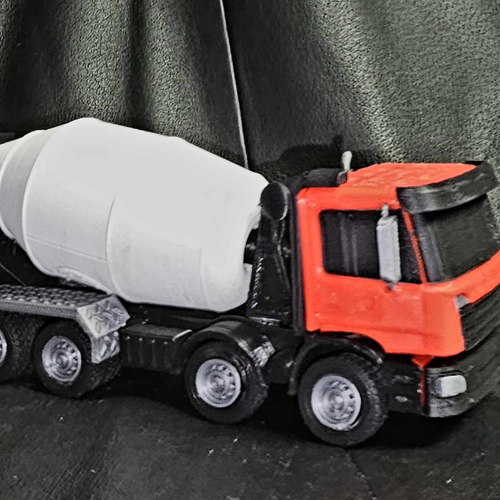

This time, we designed a ready-mixed concrete truck by utilizing the basic structure of a dump truck.
Contrary to the expectation that it would be easy to make because the foundation of the dump truck was utilized, it was difficult to make a folding structure because the structure of the concrete mixer part was complicated.

Except for folding and assembling the concrete mixer, the assembly process with the dump truck is the same.

Concrete mixer inserts the front part of the tumbler first, then the rear part.
The back can be a little loose, but the ladder will hold it in place.
If there are still loose parts, use adhesive to secure them.

Please refer to the video for the detailed process.

Printing on Enders and assembling video

1 : 48 scale
Largest part in printing, size = X 53mm, Y 154mm, Z 26mm, After full assembly size= X 64mm, Y 179mm, Z 80mm

File
File 35.1 MB
Release Date
2022-06-09
Average Time
[0.1mm] Body : 11h 20m / 42g
[0.1mm] Mixer Drum : 8h 40m / 36g
[0.1mm] Front : 6h 30m / 26g
[0.1mm] Tire : 5h 30m / 20g
[0.1mm] Sub Frame : 4h / 14g
[0.1mm] Mudguard : 2h / 7.3g
[0.1mm] Wheel Cap : 1h 20m / 4g
[0.1mm] Bumper : 1h / 3g
[0.1mm] Engine : 1h / 3g
[0.1mm] Window : 50m / 4g
[0.1mm] Climbing Ladder : 20m / 1g
[0.1mm] Chute : 20m / 1g
[0.1mm] Grill : 20m / 1.5g
[0.1mm] Sun visor : 20m / 1g
[0.1mm] Air Intake Hose : 15m / 1g
[0.1mm] Chute Cylinder : 10m / 1g
[0.1mm] Side Mirror : 10m / 0.5g
[0.1mm] Front Lamp : 10m / 0.5g
[0.1mm] Rear Lamp : 2m / 0.1g
