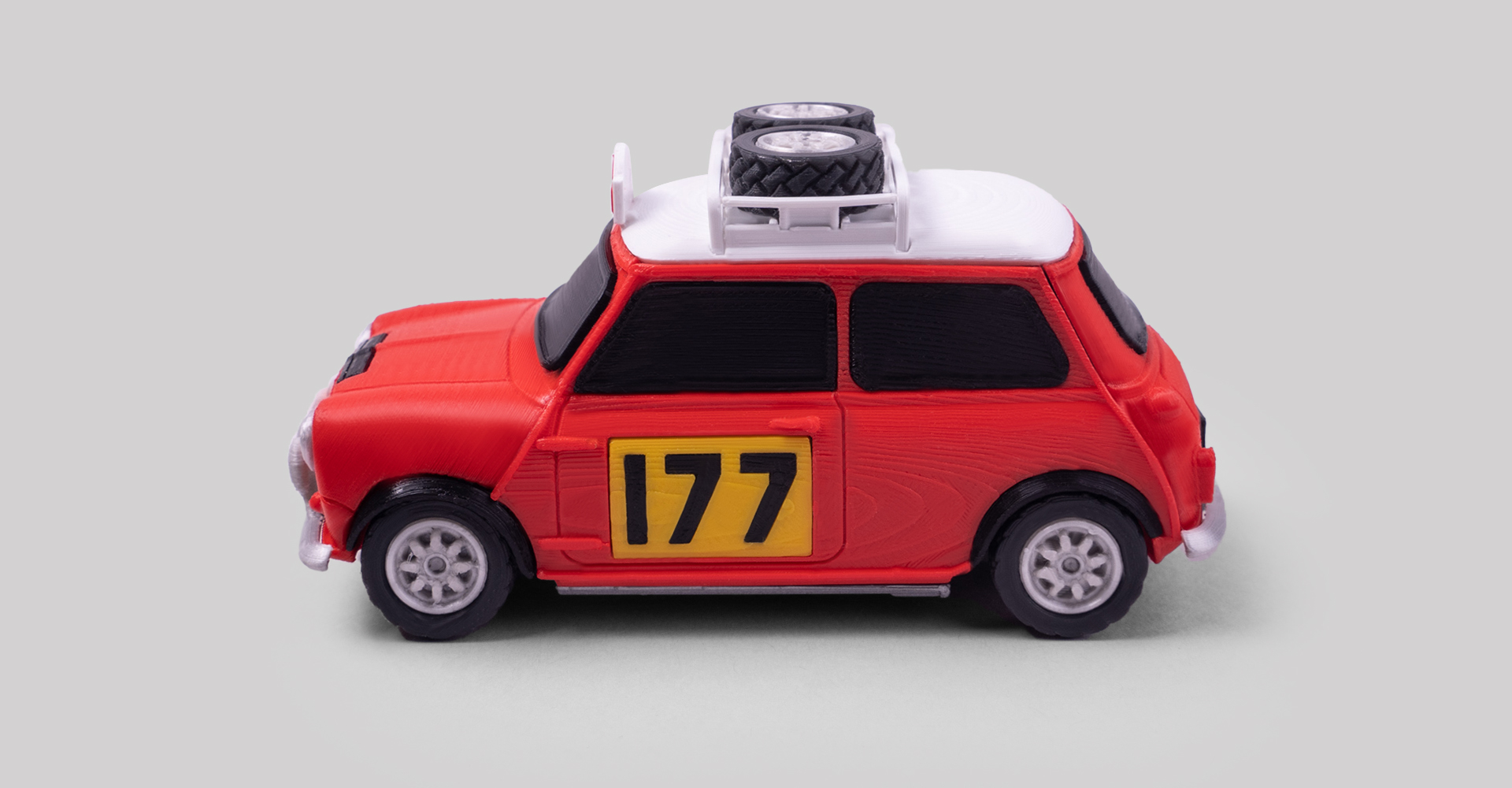

Morris Mini Cooper-S Rally
$ 4.99
GOODesign
GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf. This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.
Long loved by many, the Mini Cooper also excelled in auto racing, the most famous of which was its multiple victories in the Monte Carlo Rally.
This racing revamped Mini Cooper is loved by many for its historical fact and the beauty of its revamped look.
This time, I designed this Monte Carlo Rally version of the Mini Cooper.
The assembly process is similar to the previously designed Mini Cooper, but with a few caveats.
※ Precautions
The number plate is different on the left and right. The door, black license plate, and yellow license plate each have matching protrusions and dents, so please check them carefully. These may be difficult to see due to their small size, so please check them carefully before slicing.
When you fold the body and press the roof to fit it, you have to press it with great force until you hear a 'click' sound.
The fender that surrounds the wheel must be attached first before attaching the lower body.
The shape of the front and back of the fender is different, so please match and confirm before attaching.
Printing on Ender 3D printers and assembling video ➪
Printing video review of iftibashir ➪
Flexible build bed link ➪
Metal look filament link ➪
Tire filament link ➪
Super glue link ➪
67 Monte Carlo Rally winner
1 : 38 Scale
Largest part in printing, size = X 92mm, Y 106mm, Z 20mm, After full assembly size= X 42mm, Y 84mm, Z 36mm
Total Build time : 17h / Plastic weight : 63g
| PRUSA Slicing Settings | Simplify 3D |
|---|---|
| Extruder | Nozzle Diameter : 0.4mm / Retraction Distance : 2.4mm |
| Layer Settings | Layer Height : 0.1mm or 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2 |
| First Layer Settings | First Layer Height : 100% / First Layer Width : 100% / First Layer Speed : 80% |
| Infill | Interior Fill Percentage : 15% / Outline Overlap : 30% |
| Additions | Raft : NO / Brim : NO / Support : NO |
| PRUSA Slicing Settings | Prusa Slicer |
| PRUSA MK3 | Layer Height : 0.1mm or 0.2mm / Raft : NO / Brim : NO / Support : NO |
| Ender Slicing Settings | Simplify 3D |
| Extruder | Nozzle Diameter : 0.4mm / Retraction Distance : 5.4mm |
| Layer Settings | Layer Height : 0.1mm or 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2 |
| First Layer Settings | First Layer Height : 120% / First Layer Width : 150% / First Layer Speed : 50% |
| Infill | Interior Fill Percentage : 15% / Outline Overlap : 30~40% |
| Additions | Raft : NO / Brim : NO / Support : NO |
| Ender Slicing Settings | Cura |
| Quality | Layer Height : 0.1mm or 0.2mm / Line Width : 0.4mm |
| Shell | Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6 |
| Infill | Infill Density : 20% / Pattern : Grid |
| Material | Flow : 100% / Retraction Distance : 5.4mm |
| Additions | Raft : NO / Brim : NO / Support : NO |
| CR-10S Pro Slicing Settings | Cura |
| Quality | Layer Height : 0.1mm or 0.2mm / Line Width : 0.4mm |
| Shell | Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6 |
| Infill | Infill Density : 20% / Pattern : Grid |
| Material | Flow : 100% / Retraction Distance : 5.4mm |
| Additions | Raft : NO / Brim : NO / Support : NO |
