Foldable Christmas lighting ornament - Vertical

$ 3.99

Designer

GOODesign

GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf.   This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.

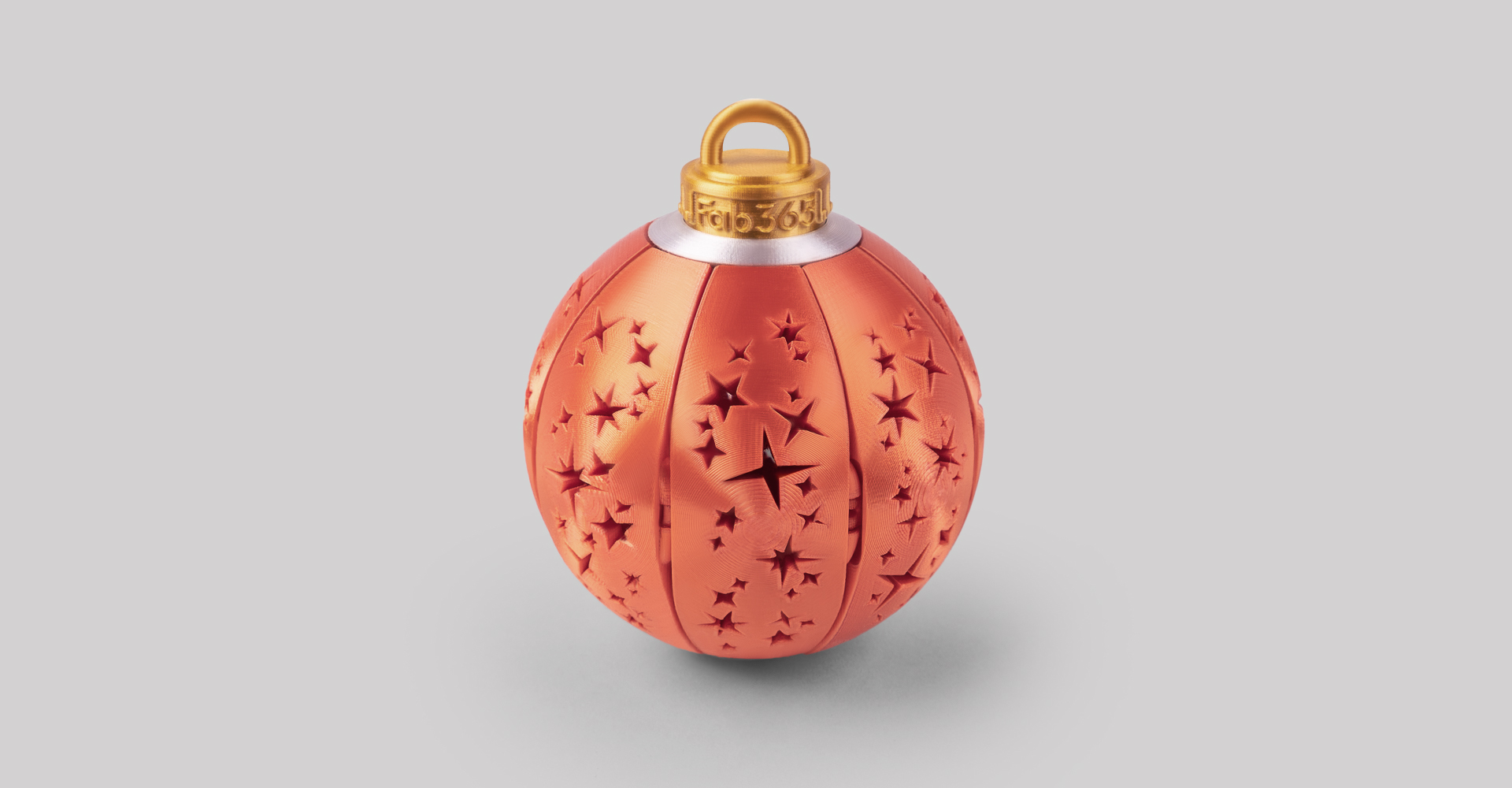

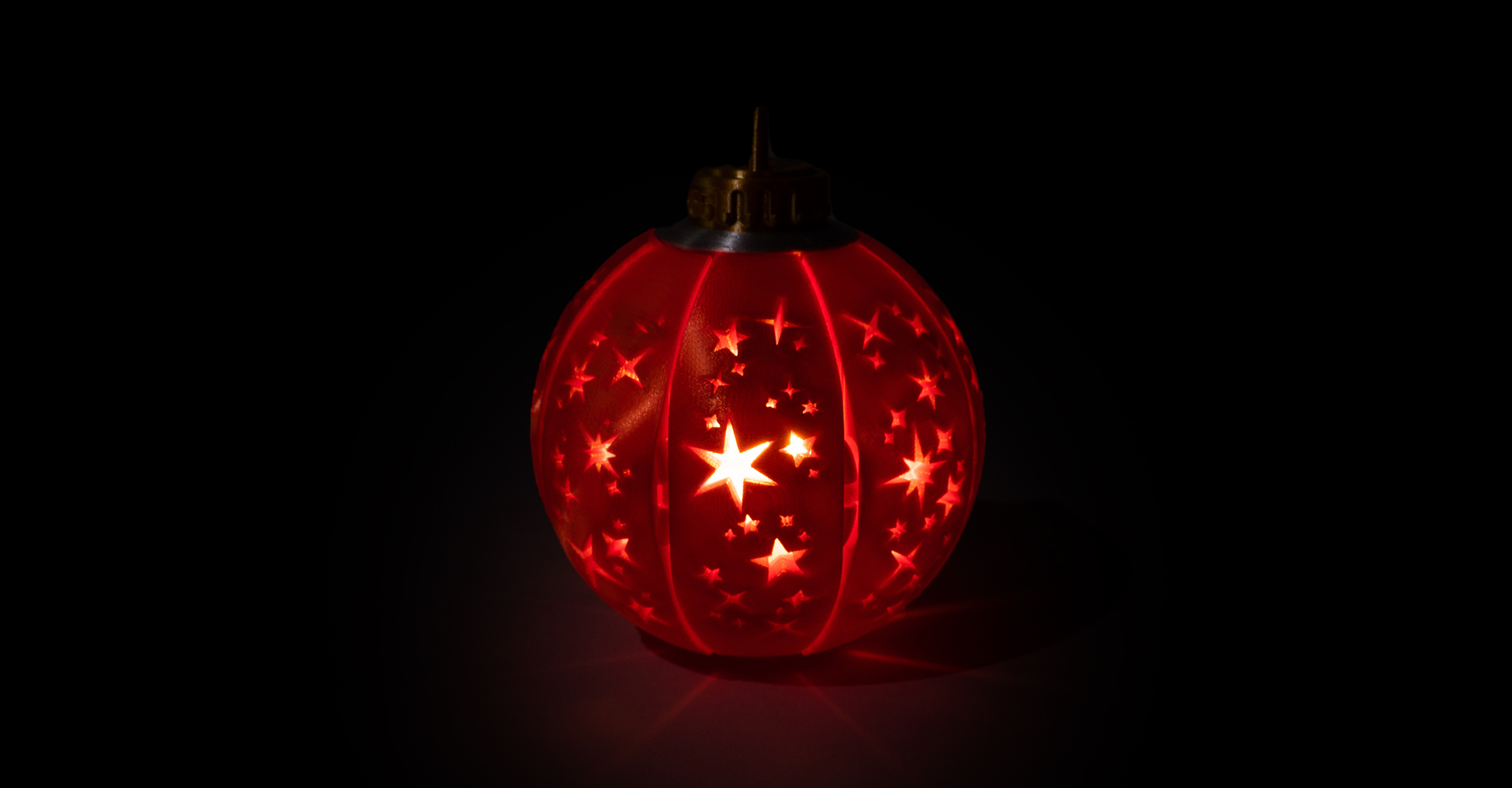

This design is a Christmas decoration light.
I designed it with the idea that it would be nice to put LED lights in the Christmas decorations.
In particular, I thought that the meaning of Christmas could be expressed better by expressing the starlight that led the wise men to the birthplace of Jesus, so I designed a hole in the shape of a star and let LED light flow through it.
By adopting the foldable method that was used previously, it was designed so that the decoration can be easily opened and used by inserting an LED tea light candle.

Printing on Ender 3 3D printer video
Printing on Prusa 3D printer video

Decorate your Christmas tree brighter and better with this Foldable Christmas Decoration Light, and have a more enjoyable Christmas.
merry Christmas!

Largest part in printing, size = X 195mm, Y 91mm, Z 24mm, After full assembly size= X 68mm, Y 68mm, Z 84mm

Total Build Time : 20h 15m / Plastic Weight : 65g

PRUSA Slicing Settings Simplify 3D
Extruder Nozzle Diameter : 0.4mm / Retraction Distance : 2.4mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 100% / First Layer Width : 100% / First Layer Speed : 80%
Infill Interior Fill Percentage : 15% / Outline Overlap : 30%
Additions Raft : OK / Brim : NO / Support : NO
PRUSA Slicing Settings Prusa Slicer
PRUSA MK3 Layer Height : 0.1mm, 0.2mm / Raft : OK / Brim : NO / Support : NO
Ender Slicing Settings Simplify 3D
Extruder Nozzle Diameter : 0.4mm / Retraction Distance : 5.4mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 120% / First Layer Width : 150% / First Layer Speed : 50%
Infill Interior Fill Percentage : 15% / Outline Overlap : 30~40%
Additions Raft : OK / Brim : NO / Support : NO
CR-10S Pro Slicing Settings Cura
Quality Layer Height : 0.1mm, 0.2mm / Line Width : 0.4mm
Shell Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6
Infill Infill Density : 20% / Patten : Grid
Material Flow : 100% / Retraction Distance : 5.4mm
Build Plate Adhesion Raft / Raft Extra Margin : 3mm / Raft Air Gap : 0.3~0.32mm
File
File 18.1 MB
Average Time
[0.1mm] Body : 19h / 60g
[0.1mm] Head-A : 45m / 3g
[0.1mm] Head-B : 30m / 2g
