Christmas lighting ornament - landscape in the forest
$ 3.99
GOODesign
GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf. This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.

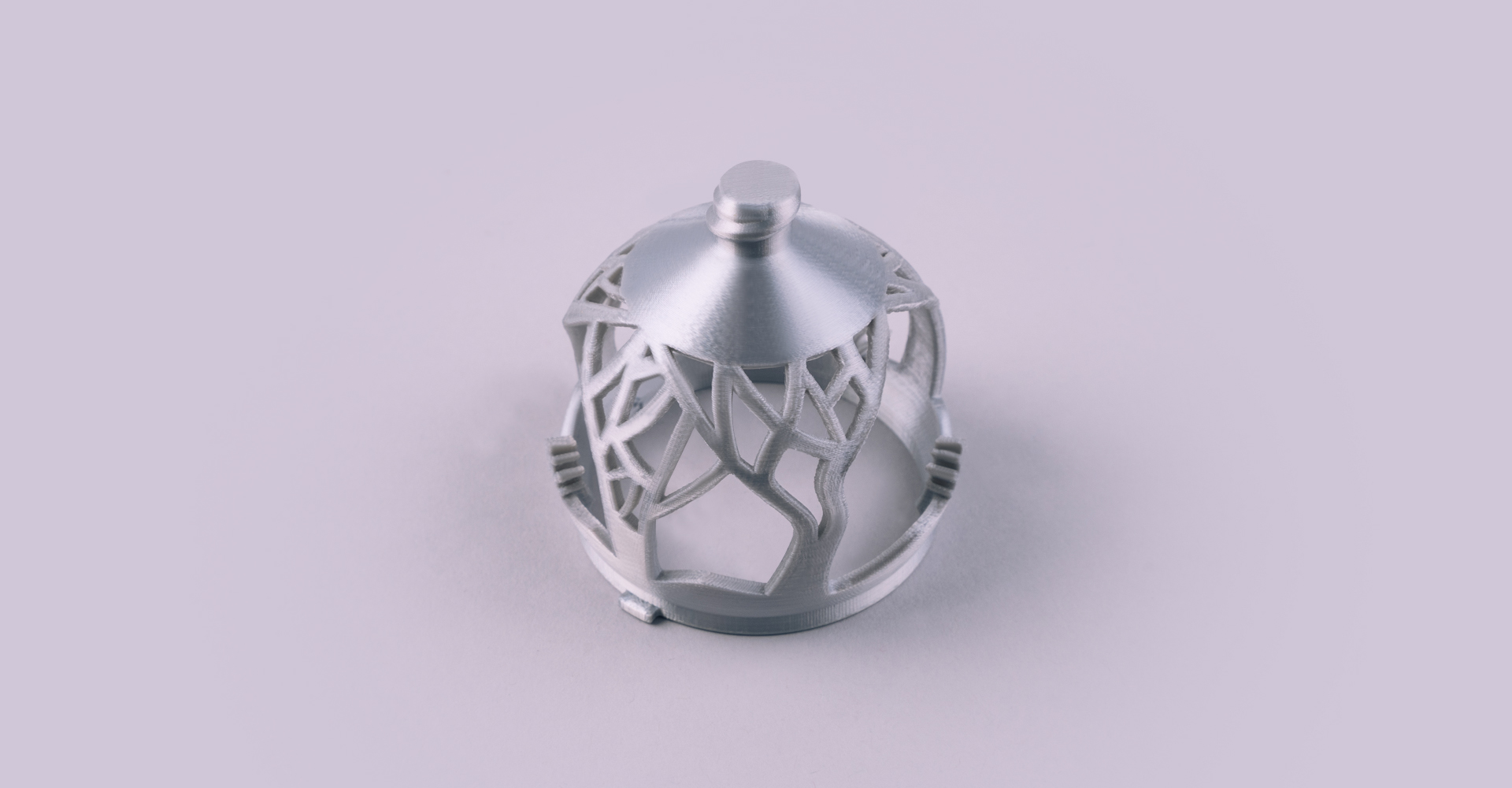

It is a Christmas Ornament that expresses the scenery in the winter forest.
This Christmas Ornament light is made up of 3 layers.
It is designed to be used as lighting by inserting LED tea light candles inside.

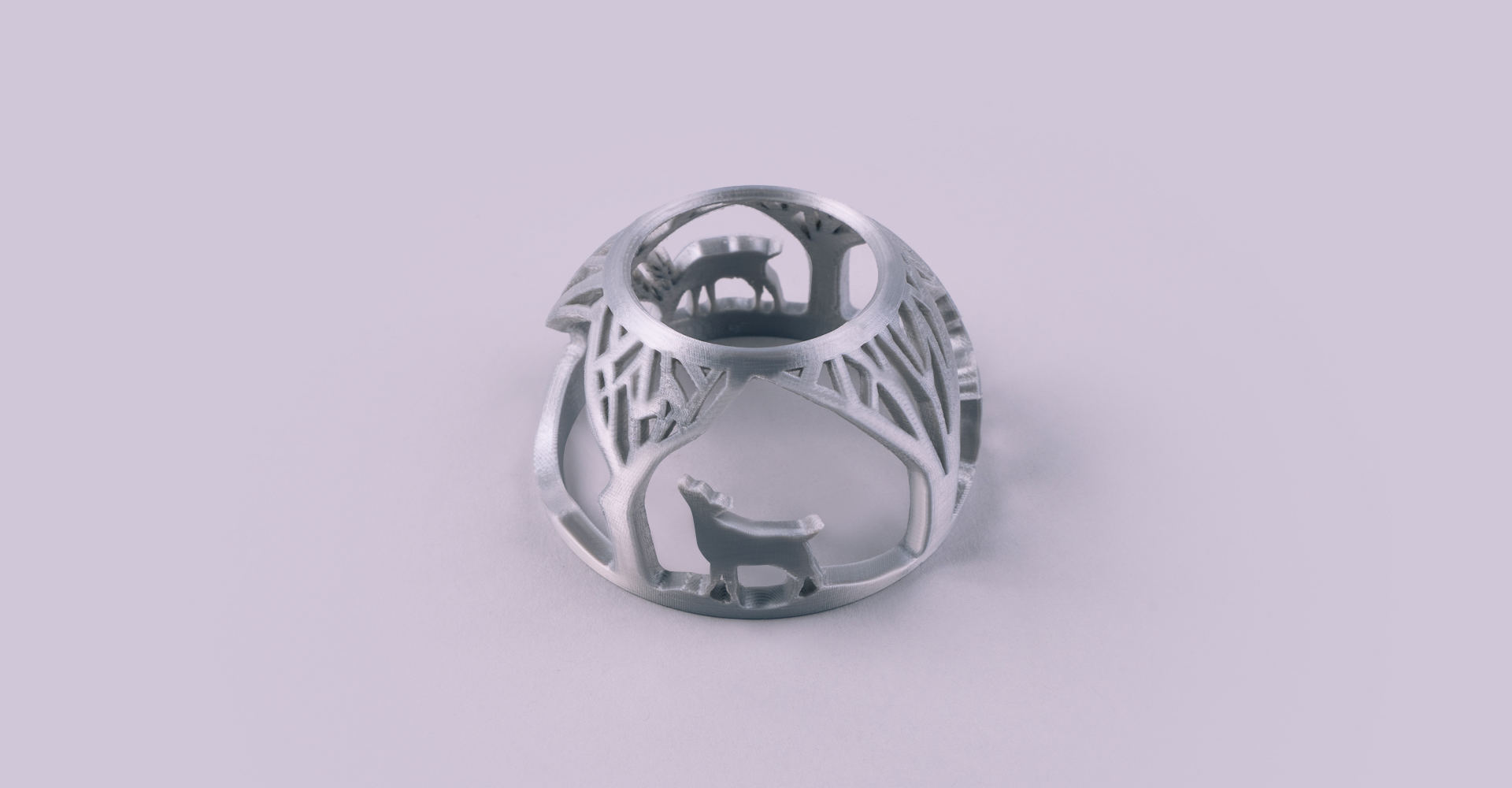

You can use it as atmospheric lighting by inserting LED tea light candles and turning the outer layer with trees and deers to express your own forest.
※ The size of this design is minimal. A larger print will give you better results. ※
The assembly method is as follows.
1. Insert the innermost layer into the groove on the bottom piece, then screw it into place.
2. Then apply the middle layer and then the outer layer.
3. Finally, connect the top piece to the knob of the inner layer part by rotating it.
4. If you put an LED tea light candle inside, do the opposite, separate it, insert the light, and assemble it again in order.
Printing on Ender 3 3D printer video ➪
When printing each layer, it is recommended to use a support or lower the printing speed to 1800mm/sec or less, as the tree branch may shake during printing due to thinness and the printing quality may not be good.
We wish you a wonderful Christmas season with these Christmas decorations!
Merry Christmas~
Largest part in printing, size = X 65mm, Y 65mm, Z 35mm, After full assembly size= X 65mm, Y 65mm, Z 80mm
| PRUSA Slicing Settings | Simplify 3D |
|---|---|
| Extruder | Nozzle Diameter : 0.4mm / Retraction Distance : 2.4mm |
| Layer Settings | Layer Height : 0.1mm or 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2 |
| First Layer Settings | First Layer Height : 100% / First Layer Width : 100% / First Layer Speed : 80% |
| Infill | Interior Fill Percentage : 15% / Outline Overlap : 30% |
| Additions | Raft : NO / Brim : NO / Support : NO |
| PRUSA Slicing Settings | Prusa Slicer |
| PRUSA MK3 | Layer Height : 0.1mm or 0.2mm / Raft : NO / Brim : NO / Support : NO |
| Ender Slicing Settings | Simplify 3D |
| Extruder | Nozzle Diameter : 0.4mm / Retraction Distance : 5.4mm |
| Layer Settings | Layer Height : 0.1mm or 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2 |
| First Layer Settings | First Layer Height : 120% / First Layer Width : 150% / First Layer Speed : 50% |
| Infill | Interior Fill Percentage : 15% / Outline Overlap : 30~40% |
| Additions | Raft : NO / Brim : NO / Support : NO |
| Ender Slicing Settings | Cura |
| Quality | Layer Height : 0.1mm or 0.2mm / Line Width : 0.4mm |
| Shell | Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6 |
| Infill | Infill Density : 20% / Pattern : Grid |
| Material | Flow : 100% / Retraction Distance : 5.4mm |
| Additions | Raft : NO / Brim : NO / Support : NO |
| CR-10S Pro Slicing Settings | Cura |
| Quality | Layer Height : 0.1mm or 0.2mm / Line Width : 0.4mm |
| Shell | Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6 |
| Infill | Infill Density : 20% / Pattern : Grid |
| Material | Flow : 100% / Retraction Distance : 5.4mm |
| Additions | Raft : NO / Brim : NO / Support : NO |
Notice !
Feel free to talk about your product.
Comments that are irrelevant to the topic may be deleted
did you make it? please write making story !
Write Review
If I purchase this model, is it possible to have your company name removed from it? Thank you.
Gran modelo. me costo mucho trabajo hacerlo, pero fue por el material que venia humedo
I just can't print the inner rings even after 24 hours of trying. This report is non-repeatable and non-printable. And 4 USD is good for you.
No matter what I tried I could not get them to print with my silk filament. I just about gave up but I tried regular filament and it worked.
We make inner layer 200% thicker.
Please download and try again.
Thank you~
This time is all OK. Thank you
What does making the inner layer 200% thicker mean? Is that related to the infill or making the line width 200% wider?
I have tried many times with lots of different settings and speeds. I cannot get any of the inner rings to print without breaking off.
We make inner layer 200% thicker.
And we tested couple of time
Please download and try again.
Thank you~
