Sturmtiger

$ 5.49

Designer

GOODesign

GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf. This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.

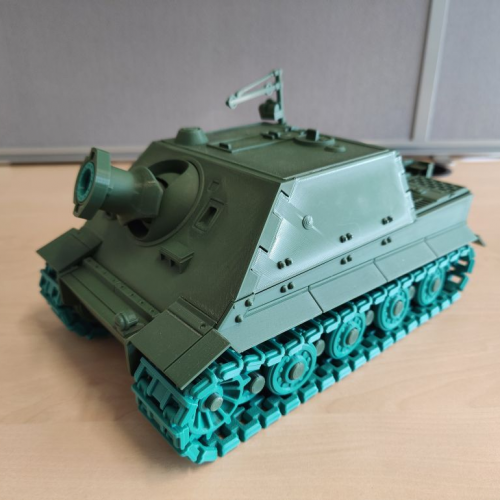

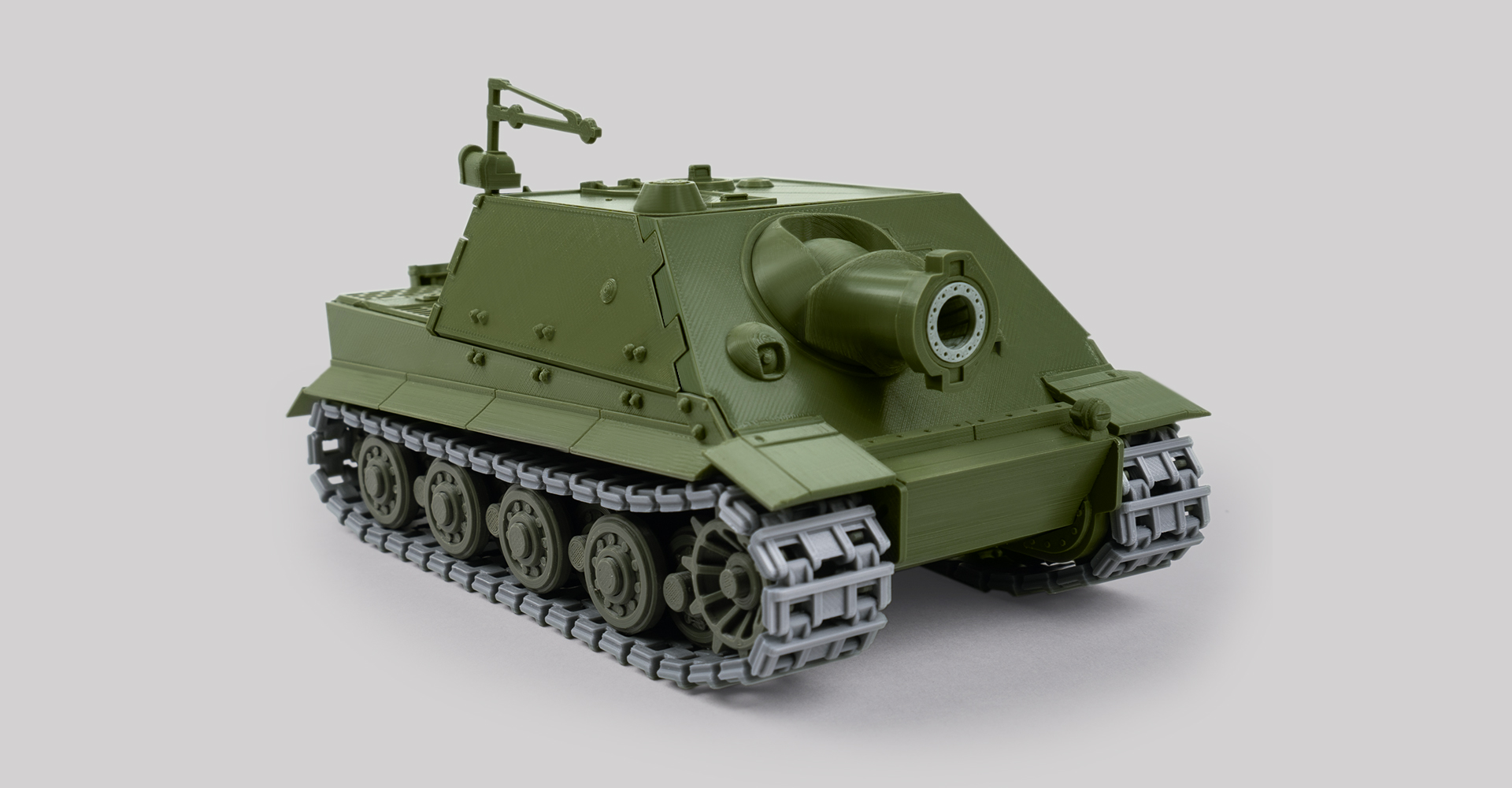

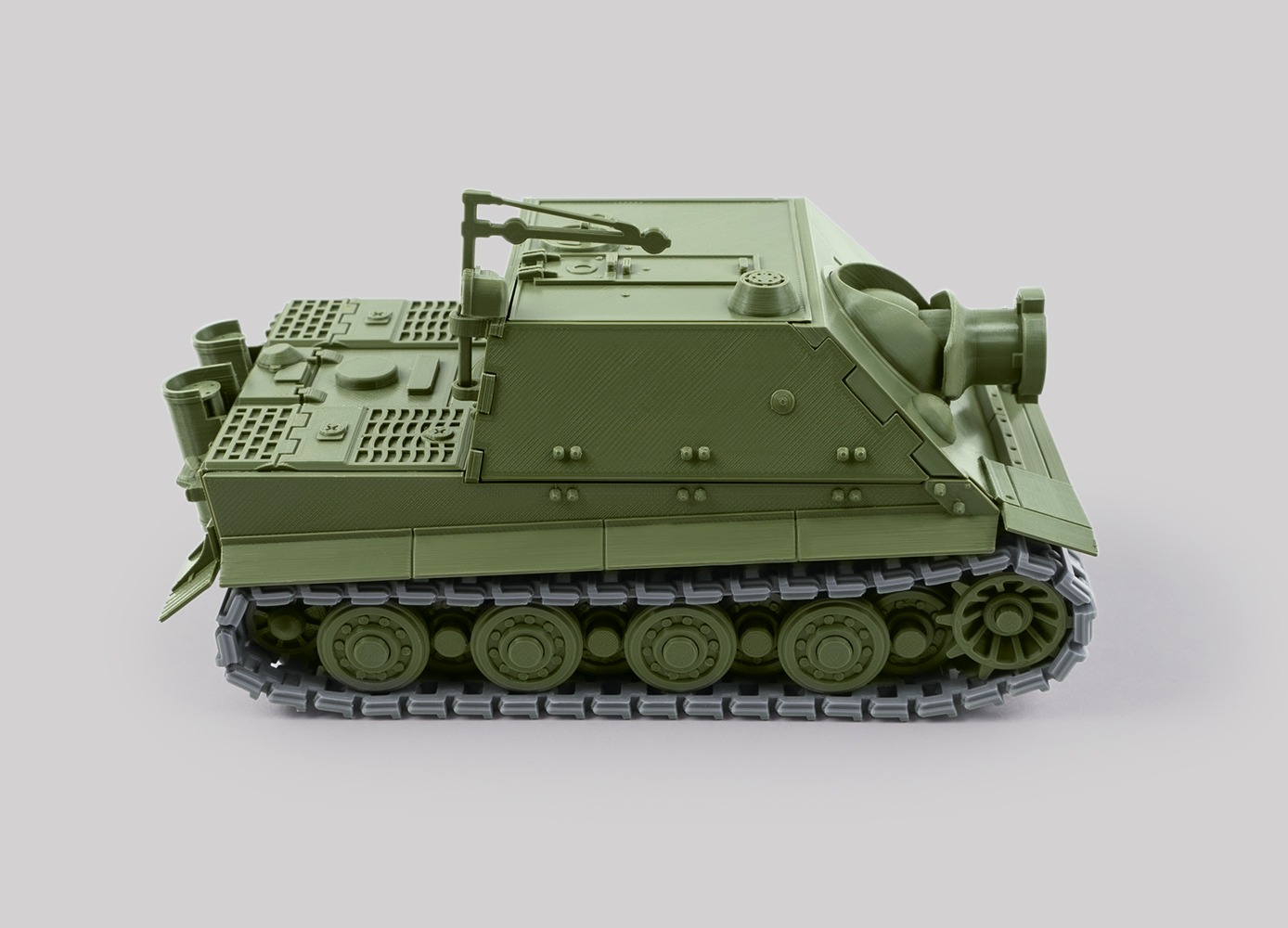

This tank with a short and thick barrel is popular for its unique appearance and often appears in World War II and tank-related movies and games.
The Foldable Sturmtiger designed this time has several progressive new attempts.
1. Change the design of the track so that the pattern protrudes outward instead of inward, making the shape of the track more realistic.
2. By changing the method of printing the wheels separately and inserting them, it is possible to prevent the wheel axles from coming off the bed during printing.

Precautions during folding and assembly
The lower part between the wheels is connected after sliding along the rail, but the end of the rail is bent, so please be aware of the direction of the rail in advance and connect it after sliding.
The turret is fixed and tilted at an angle. Therefore, the bumps and holes connecting these faces are also made at an angle rather than a right angle, so please check these angles before connecting.

Check out the video to learn more about the folding and assembling process!

Printing on Prusa 3D printer video

World War 2 military enthusiasts hope for a lot of response!

1 : 48 Scale
Largest part in printing, size = X 133mm, Y 189mm, Z 87mm, After full assembly size= X 84mm, Y 142mm, Z 78mm
Total Build time : 46h / Plastic weight : 190g

PRUSA Slicing Settings Simplify 3D
Extruder Nozzle Diameter : 0.4mm / Retraction Distance : 4.2mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 10 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 100% / First Layer Width : 98% / First Layer Speed : 40%
Infill Interior Fill Percentage : 10% / Outline Overlap : 15~35%
Additions Raft : NO / Brim : NO / Support : NO
PRUSA Slicing Settings PrusaSlicer
PRUSA MK3 Layer Height : 0.1mm, 0.2mm / Raft : NO / Brim : NO / Support : NO
Ender Slicing Settings Simplify 3D
Extruder Nozzle Diameter : 0.4mm / Retraction Distance : 6.4mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 10 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 100% / First Layer Width : 98% / First Layer Speed : 40%
Infill Interior Fill Percentage : 10% / Outline Overlap : 15~35%
Additions Raft : NO / Brim : NO / Support : NO
Ender Slicing Settings Cura
Quality Layer Height : 0.1mm, 0.2mm / Line Width : 0.4mm
Shell Wall Line Count : 2 / Top Solid : 10 / Bottom Solid : 6
Infill Infill Density : 20% / Patten : Grid
Material Flow : 100% / Retraction Distance : 6.4mm
Build Plate Adhesion Raft : NO / Brim : NO / Support : NO
CR-10S Pro Slicing Settings Cura
Quality Layer Height : 0.1mm, 0.2mm / Line Width : 0.4mm
Shell Wall Line Count : 2 / Top Solid : 10 / Bottom Solid : 6
Infill Infill Density : 20% / Patten : Grid
Material Flow : 100% / Retraction Distance : 5.4mm
Build Plate Adhesion Raft : NO / Brim : NO / Support : NO
File
File 50.4 MB
Release Date
2023-01-30
Average Time
[0.1mm] Sturmtiger Turret: 3h / 10g
[0.1mm] Sturmtiger Hull-A : 6h 30m / 30g
[0.1mm] Sturmtiger Hull-B : 21h 30m / 90g
[0.1mm] Sturmtiger Drive sprocket x2 : 1h 30m / 5g
[0.1mm] Sturmtiger Road wheel x16 : 3h / 16g
[0.1mm] Sturmtiger Idler wheel x2 : 30m / 2g
[0.1mm] Sturmtiger Track : 8h / 30g
[0.1mm] Sturmtiger Detail up Parts : 2h / 6g
  • rendone18897724
    2023-03-28 07:24:46

    Can you update this suspension for the other Tiger Tank models?

    fab365
    2023-03-28 11:24:47

    You mean, wheels?

  • Morrlex
    2023-02-09 02:45:26

    Are you able to use these tracks on the Tiger 1 models? I prefer these and seeing as theyre the same chassis I'd assume they'd work. Possible to modify the tiger 1 rear wheel to function with these tracks?

    fab365
    2023-03-28 11:24:28

    Tracks are not compatible. In addition to the rear wheel, minor size modifications are required in various parts.
    If there are a lot of requests to fix the track like this, you can think deeply. But so far, the requests are not high enough.
    Thank you~
