Vespa Piaggio 125

$ 3.99

Designer

GOODesign

GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf. This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.

I finally designed my first 3D printing motorcycle.

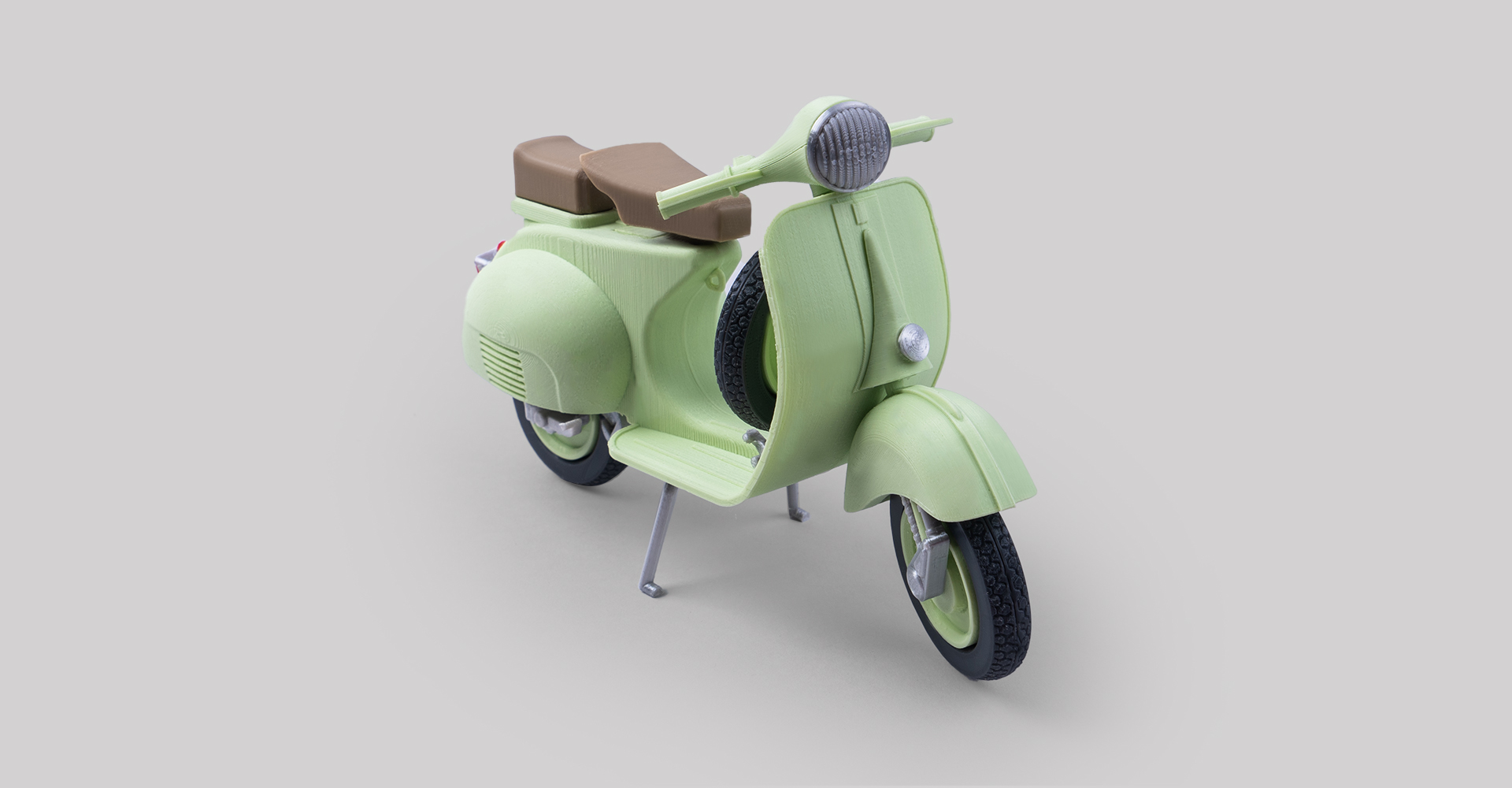

The first model chosen was the familiar Vespa. Among them, I made a 1960 model that still maintains the core of the design.
I've tried my best to do everything possible. And I put a lot of effort into color-coding the parts accordingly.

Precautions when assembling
1. The letter R (Rear) is written on the wheel cap of the rear wheel. Please check and assemble it.
2. It is recommended to install the wheels first before folding and assembling the body.
3. Spare tire is optional.

Please refer to the video for detailed folding and assembly process.

Printing on Anycubic, Ender 3 3D printer video
Printing on Prusa 3D printer video
Printing review from iftibashir

Starting with this, we plan to design many motorcycles for 3D printing in the future. We hope for many requests from manufacturers!

1 : 18 scale

Largest part in printing, size = X 146mm, Y 148mm, Z 30mm, After full assembly size= X 54mm, Y 148mm, Z 88mm

Total Build Time : 15h 55m / Plastic Weight : 63.44g

PRUSA Slicing Settings Simplify 3D
Extruder Nozzle Diameter : 0.4mm / Retraction Distance : 2.4mm
Layer Settings Layer Height : 0.1mm or 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 100% / First Layer Width : 100% / First Layer Speed : 80%
Infill Interior Fill Percentage : 15% / Outline Overlap : 30%
Additions Raft : NO / Brim : NO / Support : NO
PRUSA Slicing Settings Prusa Slicer
PRUSA MK3 Layer Height : 0.1mm or 0.2mm / Raft : NO / Brim : NO / Support : NO
Ender Slicing Settings Simplify 3D
Extruder Nozzle Diameter : 0.4mm / Retraction Distance : 5.4mm
Layer Settings Layer Height : 0.1mm or 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 120% / First Layer Width : 150% / First Layer Speed : 50%
Infill Interior Fill Percentage : 15% / Outline Overlap : 30~40%
Additions Raft : NO / Brim : NO / Support : NO
Ender Slicing Settings Cura
Quality Layer Height : 0.1mm or 0.2mm / Line Width : 0.4mm
Shell Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6
Infill Infill Density : 20% / Pattern : Grid
Material Flow : 100% / Retraction Distance : 5.4mm
Additions Raft : NO / Brim : NO / Support : NO
CR-10S Pro Slicing Settings Cura
Quality Layer Height : 0.1mm or 0.2mm / Line Width : 0.4mm
Shell Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6
Infill Infill Density : 20% / Pattern : Grid
Material Flow : 100% / Retraction Distance : 5.4mm
Additions Raft : NO / Brim : NO / Support : NO
File
File 22.3 MB
Release Date
2023-02-09
Average Time
[0.1mm] Wheel Cap : 25m
[0.1mm] Wheel Axis : 10m
[0.1mm] Tire : 1h 45m
[0.1mm] Stand : 10m
[0.1mm] Spare Tire Axis : 45m
[0.1mm] Seat : 55m
[0.1mm] Pedal : 5m
[0.1mm] Light : 5m
[0.1mm] Handle Light : 10m
[0.1mm] Handle : 40m
[0.1mm] Front Seat : 1h 20m
[0.1mm] Engine : 40m
[0.1mm] Body Part : 25m
[0.1mm] Body : 7h 55m
[0.1mm] Back Light Frame : 15m
[0.1mm] Back Light : 10m
  • cardonadaniel3333090
    2023-08-28 07:59:56

    Can you please tell me what settings you used for the file ( Body Part ) in the Prusa slicer for the Prusa MK3S+ ?

    It's the only part that its not coming nice during the print.

  • pozzello3463
    2023-04-23 11:24:53

    A nice model, but the scale is incorrect. Model at ~148mm long, real scooter ~1740mm makes the scale more like 1:12, not 1:18... Not complaining, just pointing it out for those who want to size this for a specific scale...

  • jonvarteresian2663
    2023-04-02 09:25:50

    Came out great on my Prusa MKS3+ ! thanks!

    I notice that your smaller parts like the engine kick starter come out perfect, while mine are sort of melty and blobby. What is your secret?!?! (Its definitely a cooling thing, as I just print 3 or 4 of the same items at once and they all come out fine.)

    fab365
    2023-04-05 13:41:29

    I like your photo and comment, so I'd appreciate it if you could post your experience on "Review" as it would be helpful to other users. :)
    https://fab365.net/reviews

    When you post a review, 1 point is also given, so please post a lot! Check out the details below!
    https://fab365.net/pages-help-review

    jonvarteresian2663
    2023-04-24 10:28:27

    done!

  • huzargarden
    2023-03-10 07:13:06

    The body STL is rubbish. 2 elements are impossible to print without fail. It doesn't matter what I do or what material I use, in the enclosure, without the enclosure. Squishing to the bed, adding glue every time these elements fail.

    Could you correct the model in these points, please? It is a waste of material for me to try to print it. In the pictures, I have used PETG, which is very hard to remove from my build surface when it is hot. I tried to pint it about ten times and I gave up. The worst model I have ever bought on this website.

    fab365
    2023-03-28 14:56:34

    Your bed adhesion is weak.
    To solve this problem, please use raft or apply some chemicals to help improve adhesion.
    Thank you~

    cardonadaniel3333090
    2023-08-28 00:36:46

    From the photo, it seems that you are printing on the Textured Bed, if so try to lower it more with the Live Z adjustment. On the Textured sheet, you can go lower, especially with PETG on the first Layer. Please make sure the bed is well cleaned with a bit of soap and warm water then give it a wipe with 99% Alcohol and heat it a bit the bed before printing.

  • lonczyk7061
    2023-02-23 20:24:04

    A nice model but for a couple of things. I agree with others that having your advertising on it, spoils it. Also notable by its absence is the lack of kick start and the Vespa badge for the front fairing. These small details make a huge difference.

  • Robsen
    2023-02-13 04:04:10

    Finds it a bit annoying that if you already buy the model, you still have advertising on the model. Once you have printed all the parts, the fun is just beginning, assembling it with some mini parts is a bit horror. But the model is good and you can print it, why is there still advertising on it when you're already paying...

  • JG3D
    2023-02-12 20:57:58

    Comprado y descargado, estoy deseando ponerla a imprimir

    fab365
    2023-02-28 12:40:16

    Thank you very much for purchasing!
    Please enjoy~

  • _cr3Di_
    2023-02-12 07:13:30

    Ready! Really nice!

    fab365
    2023-02-22 11:38:32

    What to say... How amazing build!
    Thanks for your comment :)

  • grooveup8911
    2023-02-11 23:12:44

    beautiful model
    greetings from Germany

    fab365
    2023-02-22 11:42:10

    We got the review you posted more colored Vespas!
    Thank you for sharing your experiences and writing comments and reviews :)

  • _cr3Di_
    2023-02-11 19:23:57

    what to say...simply amazing! printing it now!

    fab365
    2023-02-28 12:40:47

    Thank you very much~ I hope you enjoy~
