Cecropia moth Caterpillar - Flexi

$ 3.49

Designer

GOODesign

GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf. This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.

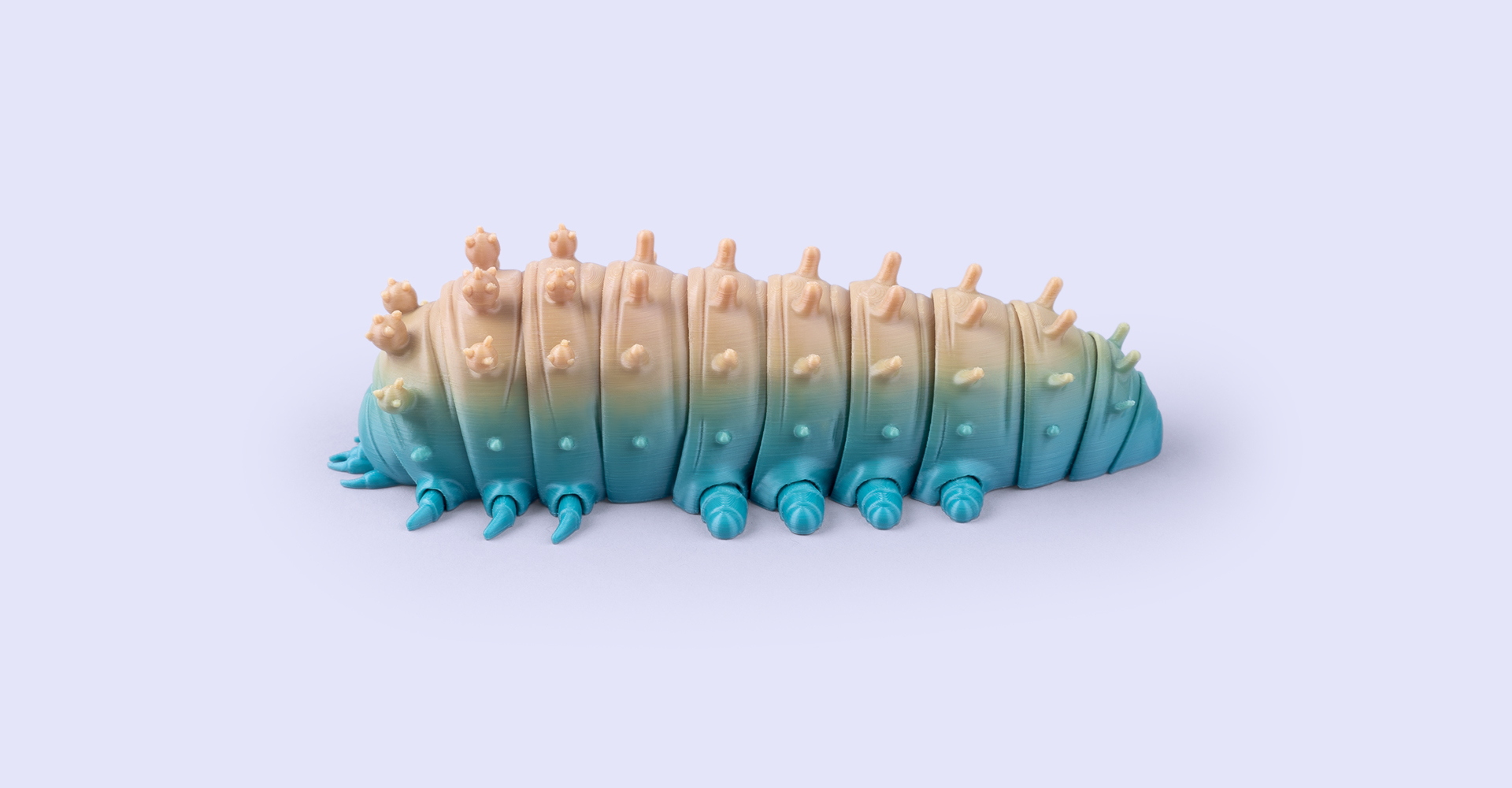

What I designed this time is a Cecropia moth caterpillar that is easy to print and easy to play with or tease.
The detailed characteristics of the moth caterpillar are well expressed to make it look very creepy.

There is nothing to assemble, and after printing, only the legs need to be rotated downward and fixed.
If the legs are not well secured, you can fix them by gluing them together.

Print with rainbow silky filament to look more like a moth caterpillar.



I hope you enjoy the fun of 3D printing!

Largest part in printing, size = X 52mm, Y 128mm, Z 35mm

Total Build Time : 11h 40m / Plastic Weight : 45g

PRUSA Slicing Settings Simplify 3D
Extruder Nozzle Diameter : 0.4mm / Retraction Distance : 2.4mm
Layer Settings Layer Height : 0.1mm or 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 100% / First Layer Width : 100% / First Layer Speed : 80%
Infill Interior Fill Percentage : 15% / Outline Overlap : 30%
Additions Raft : NO / Brim : NO / Support : NO
PRUSA Slicing Settings Prusa Slicer
PRUSA MK3 Layer Height : 0.1mm or 0.2mm / Raft : NO / Brim : NO / Support : NO
Ender Slicing Settings Simplify 3D
Extruder Nozzle Diameter : 0.4mm / Retraction Distance : 5.4mm
Layer Settings Layer Height : 0.1mm or 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 120% / First Layer Width : 150% / First Layer Speed : 50%
Infill Interior Fill Percentage : 15% / Outline Overlap : 30~40%
Additions Raft : NO / Brim : NO / Support : NO
Ender Slicing Settings Cura
Quality Layer Height : 0.1mm or 0.2mm / Line Width : 0.4mm
Shell Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6
Infill Infill Density : 20% / Pattern : Grid
Material Flow : 100% / Retraction Distance : 5.4mm
Additions Raft : NO / Brim : NO / Support : NO
CR-10S Pro Slicing Settings Cura
Quality Layer Height : 0.1mm or 0.2mm / Line Width : 0.4mm
Shell Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6
Infill Infill Density : 20% / Pattern : Grid
Material Flow : 100% / Retraction Distance : 5.4mm
Additions Raft : NO / Brim : NO / Support : NO
File
File 25.0 MB
Release Date
2023-02-15
Average Time
[0.1mm] Cecropia moth Caterpillar : 11h40m / 45g
