F-35A Lightning-II

$ 6.49

Designer

GOODesign

GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf. This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.

※ notice ※
This is a display model, not a toy to play with.
Compared to other designs, printing and assembly can be a bit difficult, so please read the video and explanation.

Taking courage from the popularity of the F-22 Raptor, we finally designed the F-35 requested by so many customers.
This F-35 was a real challenge.
First, it was relatively small in size. Therefore, the space to design the movable part was limited, so it was very difficult.
The second one is very organic and ever-changing in form. So just creating the exterior took a lot of time.
The third had many new details. For example, split lines are not hollow, but rather protruding, and zigzag lines are smaller and more complex. It took a lot of trial and error to get these details to look good.

Despite these difficult conditions, I was able to express and complete almost all the features of this airplane.
However, it may not be easy to print and create for that reason. So, be sure to check the following precautions.

※ Precautions
1. After printing the weapon bay, you need to remove the custom support. After removing it, please refine the surface before assembling it.
2. It is very difficult to connect the cover of the weapon bay. To assemble it more easily, the order is to connect the cover of the weapon bay to the connector first.
3. When connecting the weapon bay to the connector, if you bend the cover with your hand, the gap will widen, making it easier to connect the connector.
4. When connecting the flaps of the main wing, rotate the hinge and insert it into the main wing.

Other than that, please refer to the video for more details.
Printing on Ender 3 3D printer video

If the F-35A gets a lot of support, I will also design the F-35B, so please give me a lot of interest and purchase.

1 : 72 Scale
Largest part in printing, size = X 50mm, Y 90mm, Z 105mm, After full assembly size= X 150mm, Y 218mm, Z 64mm
Total Build time : 46h 30m / Plastic weight : 157g

PRUSA Slicing Settings Simplify 3D
Extruder Nozzle Diameter : 0.4mm / Retraction Distance : 2.4mm
Layer Settings Layer Height : 0.1mm(High Quality) or 0.2mm(Low Quality) / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 100% / First Layer Width : 100% / First Layer Speed : 80%
Infill Interior Fill Percentage : 15% / Outline Overlap : 30%
Additions Raft : NO / Brim : NO / Support : NO
PRUSA Slicing Settings Prusa Slicer
PRUSA MK3 Layer Height : 0.1mm(High Quality) or 0.2mm(Low Quality) / Raft : NO / Brim : NO / Support : NO
Ender Slicing Settings Simplify 3D
Extruder Nozzle Diameter : 0.4mm / Retraction Distance : 5.4mm
Layer Settings Layer Height : 0.1mm(High Quality) or 0.2mm(Low Quality) / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 120% / First Layer Width : 150% / First Layer Speed : 50%
Infill Interior Fill Percentage : 15% / Outline Overlap : 30~40%
Additions Raft : NO / Brim : NO / Support : NO
Ender Slicing Settings Cura
Quality Layer Height : 0.1mm(High Quality) or 0.2mm(Low Quality) / Line Width : 0.4mm
Shell Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6
Infill Infill Density : 20% / Pattern : Grid
Material Flow : 100% / Retraction Distance : 5.4mm
Additions Raft : NO / Brim : NO / Support : NO
CR-10S Pro Slicing Settings Cura
Quality Layer Height : 0.1mm(High Quality) or 0.2mm(Low Quality) / Line Width : 0.4mm
Shell Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6
Infill Infill Density : 20% / Pattern : Grid
Material Flow : 100% / Retraction Distance : 5.4mm
Additions Raft : NO / Brim : NO / Support : NO
File
File 26.8 MB
Release Date
2023-04-13
Average Time
[0.1mm] Canopy : 1h 30m / 3g
[0.1mm] Fuselage : 11h / 40g
[0.1mm] Wing : 8h / 28g
[0.1mm] Wing Detail up Part : 2h / 5g
[0.1mm] Flap : 2h / 3g
[0.1mm] Flap Hinge : 10m / 1g
[0.1mm] Horizontal tailplane : 2h / 6g
[0.1mm] Horizontal tailplane Hinge : 10m / 1g
[0.1mm] Vertical tailplane : 2h / 4g
[0.1mm] Weapons bay Door-A : 1h / 2g
[0.1mm] Weapons bay Door-B : 1h / 2g
[0.1mm] Weapons bay Hinge : 1h / 2g
[0.1mm] Main wheel : 1h 30m / 4g
[0.1mm] Nose wheel : 1h / 2g
[0.1mm] Exhaust nozzle : 1h / 3g
[0.1mm] Stand joint Cover : 10m / 1g

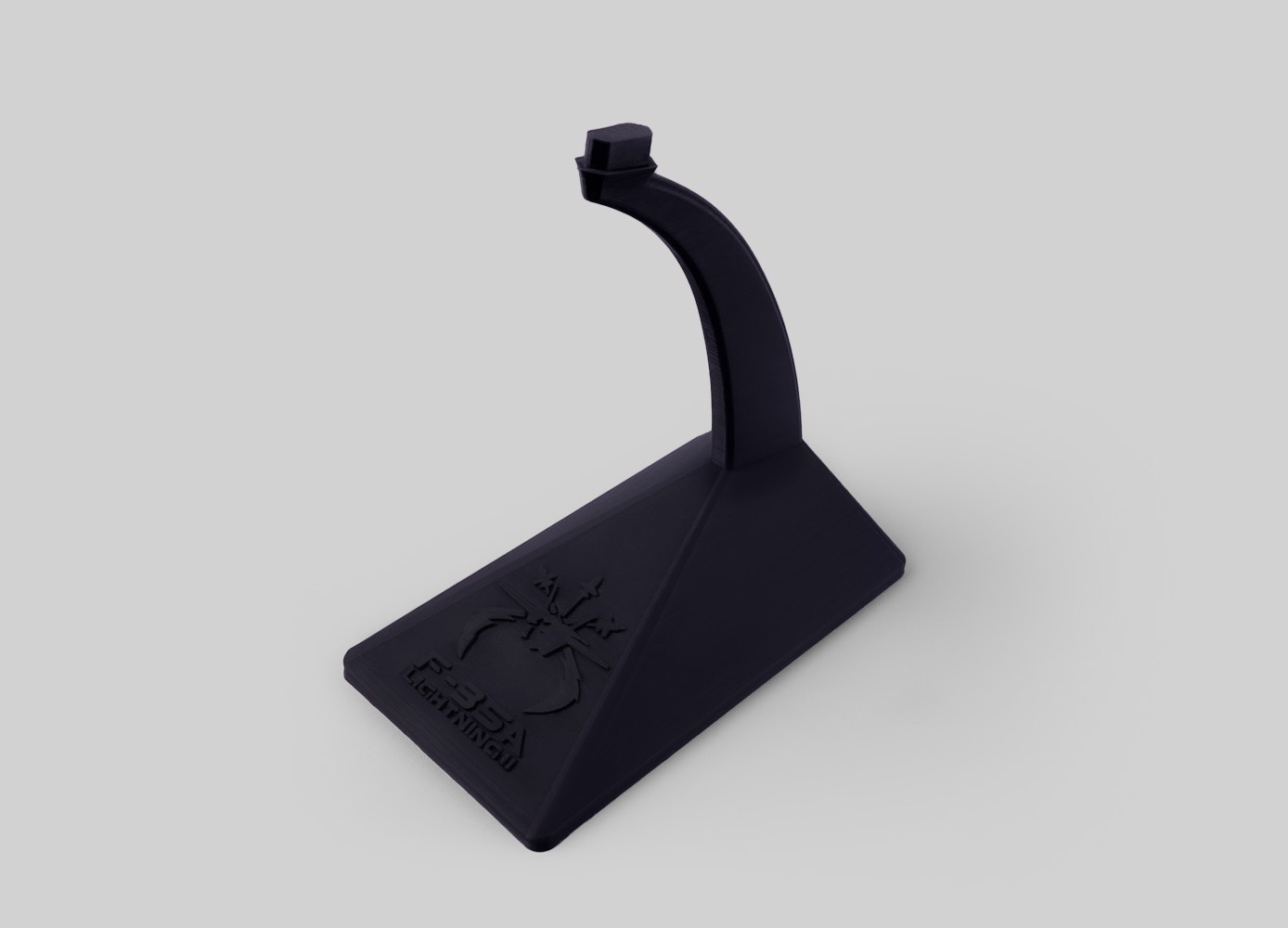

[0.1mm] Stand : 11h / 50g
