Globus cruciger(Holy grenade)
$ 3.99
GOODesign
GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf. This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.
The Holy grenade, made famous by its appearance in the films "Monty Python and the Holy Grail" and "Ready player one", is actually a movie prop modeled after the Globus Cruciger.
The Globus cruciger has been a symbol of Christian authority since the Middle Ages, and was used along with coins, iconography, and the scepter as a royal regalia.

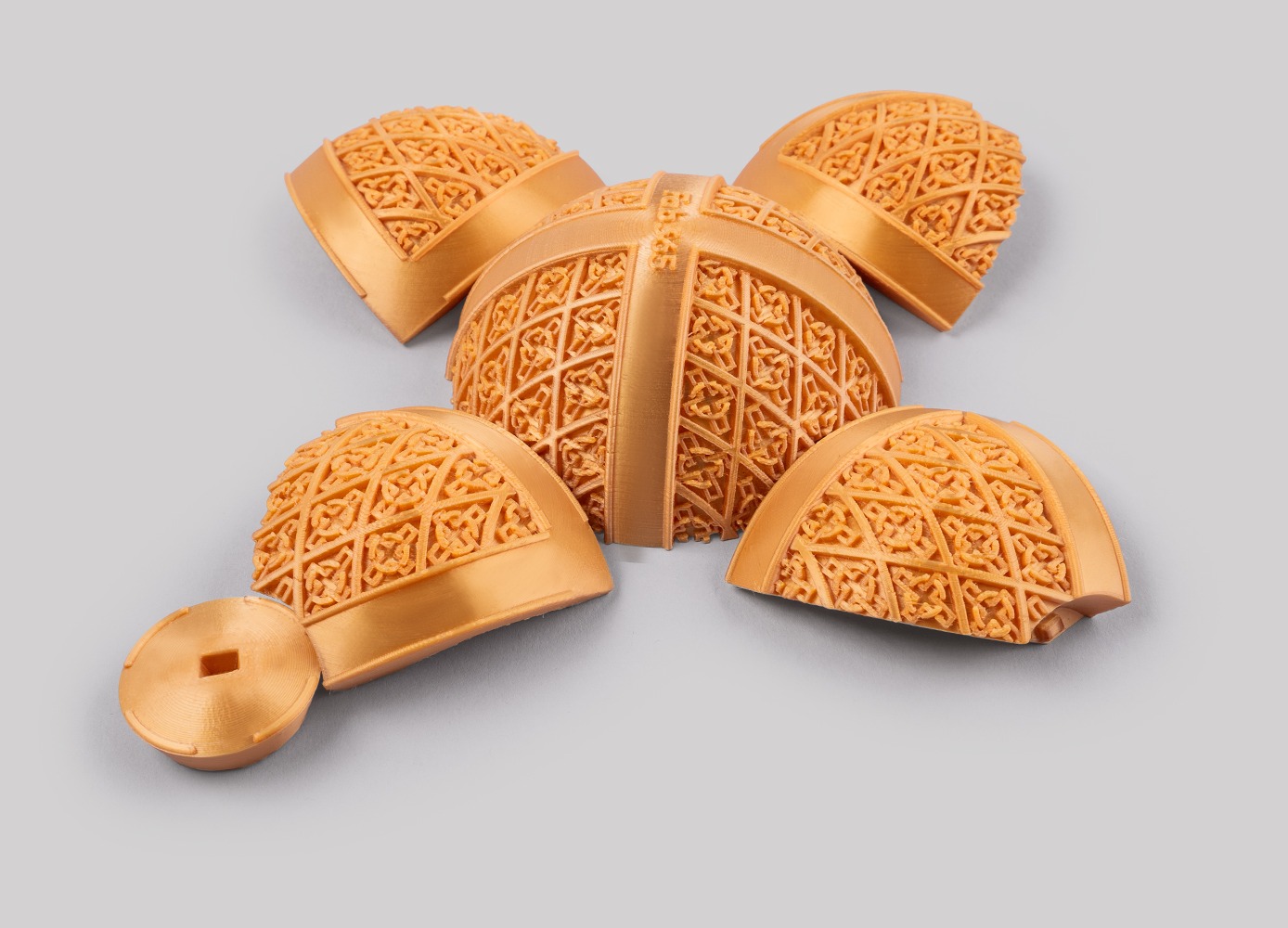

For Easter, I reinterpreted and designed this as a folding cup design.
It has a structure that can be easily opened and closed, and it is designed to present small and simple gifts or snacks inside.
Please refer to the video for details.
There is a tradition of giving and sharing gifts between people on Easter, so if you want to make a more unique and meaningful gift, it would be nice to deliver this folding Globus cruciger (Holy grenade) or put a small gift or snack inside it and deliver it together.
Wishing you a Happy Easter.
Largest part in printing, size = X 189mm, Y 165mm, Z 33mm, After full assembly size= X 75mm, Y 75mm, Z 130mm
Total Build Time : 18h 30m / Plastic Weight : 72g
| PRUSA Slicing Settings | Simplify 3D |
|---|---|
| Extruder | Nozzle Diameter : 0.4mm / Retraction Distance : 2.4mm |
| Layer Settings | Layer Height : 0.1mm or 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2 |
| First Layer Settings | First Layer Height : 100% / First Layer Width : 100% / First Layer Speed : 80% |
| Infill | Interior Fill Percentage : 15% / Outline Overlap : 30% |
| Additions | Raft : NO / Brim : NO / Support : NO |
| PRUSA Slicing Settings | Prusa Slicer |
| PRUSA MK3 | Layer Height : 0.1mm or 0.2mm / Raft : NO / Brim : NO / Support : NO |
| Ender Slicing Settings | Simplify 3D |
| Extruder | Nozzle Diameter : 0.4mm / Retraction Distance : 5.4mm |
| Layer Settings | Layer Height : 0.1mm or 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2 |
| First Layer Settings | First Layer Height : 120% / First Layer Width : 150% / First Layer Speed : 50% |
| Infill | Interior Fill Percentage : 15% / Outline Overlap : 30~40% |
| Additions | Raft : NO / Brim : NO / Support : NO |
| Ender Slicing Settings | Cura |
| Quality | Layer Height : 0.1mm or 0.2mm / Line Width : 0.4mm |
| Shell | Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6 |
| Infill | Infill Density : 20% / Pattern : Grid |
| Material | Flow : 100% / Retraction Distance : 5.4mm |
| Additions | Raft : NO / Brim : NO / Support : NO |
| CR-10S Pro Slicing Settings | Cura |
| Quality | Layer Height : 0.1mm or 0.2mm / Line Width : 0.4mm |
| Shell | Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6 |
| Infill | Infill Density : 20% / Pattern : Grid |
| Material | Flow : 100% / Retraction Distance : 5.4mm |
| Additions | Raft : NO / Brim : NO / Support : NO |
