Easter Story Layered Egg Lighting
$ 3.99
GOODesign
GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf. This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.
In celebration of Easter, we designed Easter egg lighting that expresses the story of Jesus' resurrection. I couldn't include all of them, so I expressed 10 of them.
The story begins with the inner layer and ends with the resurrection of Jesus from the outer layer.

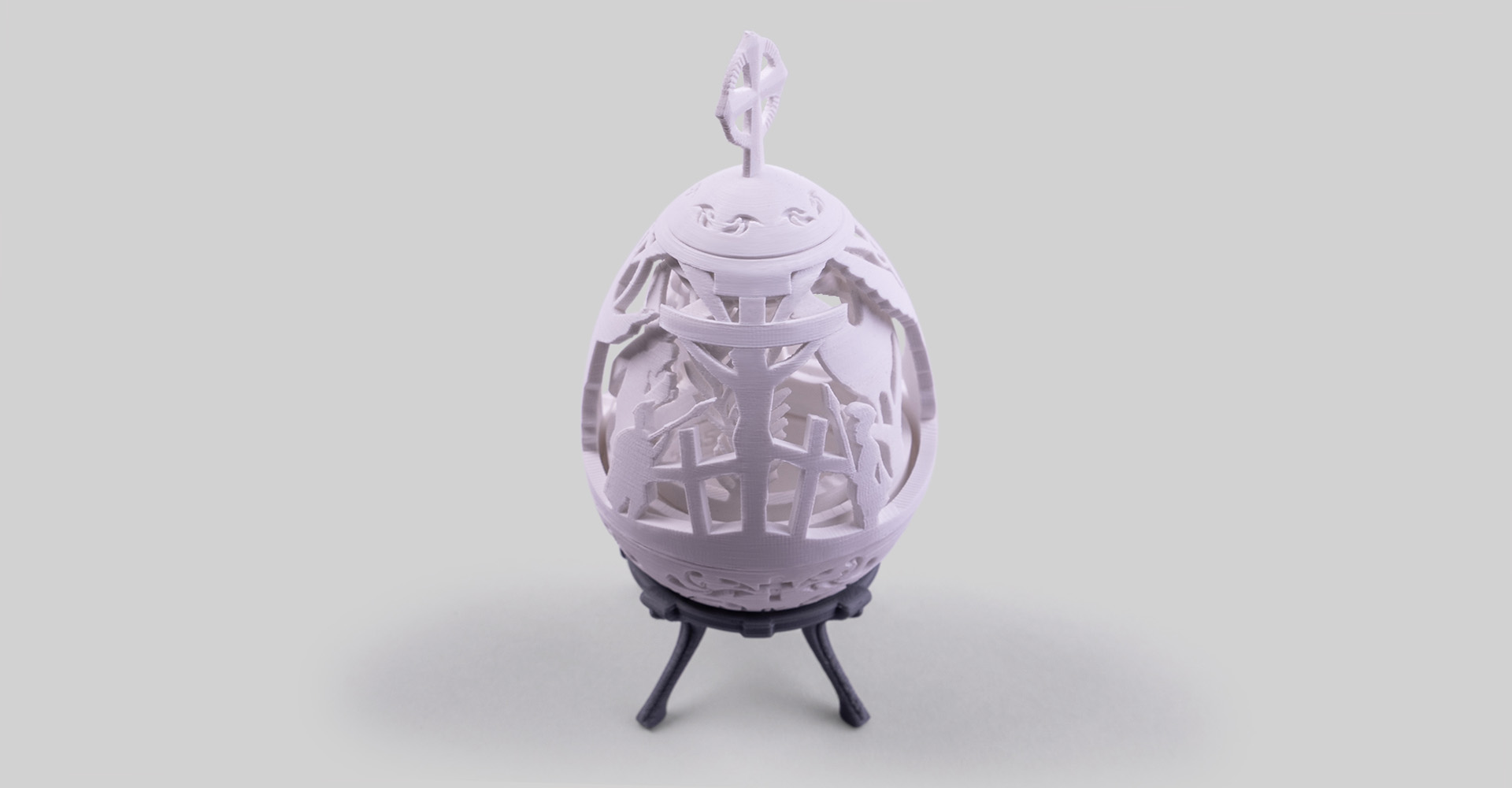

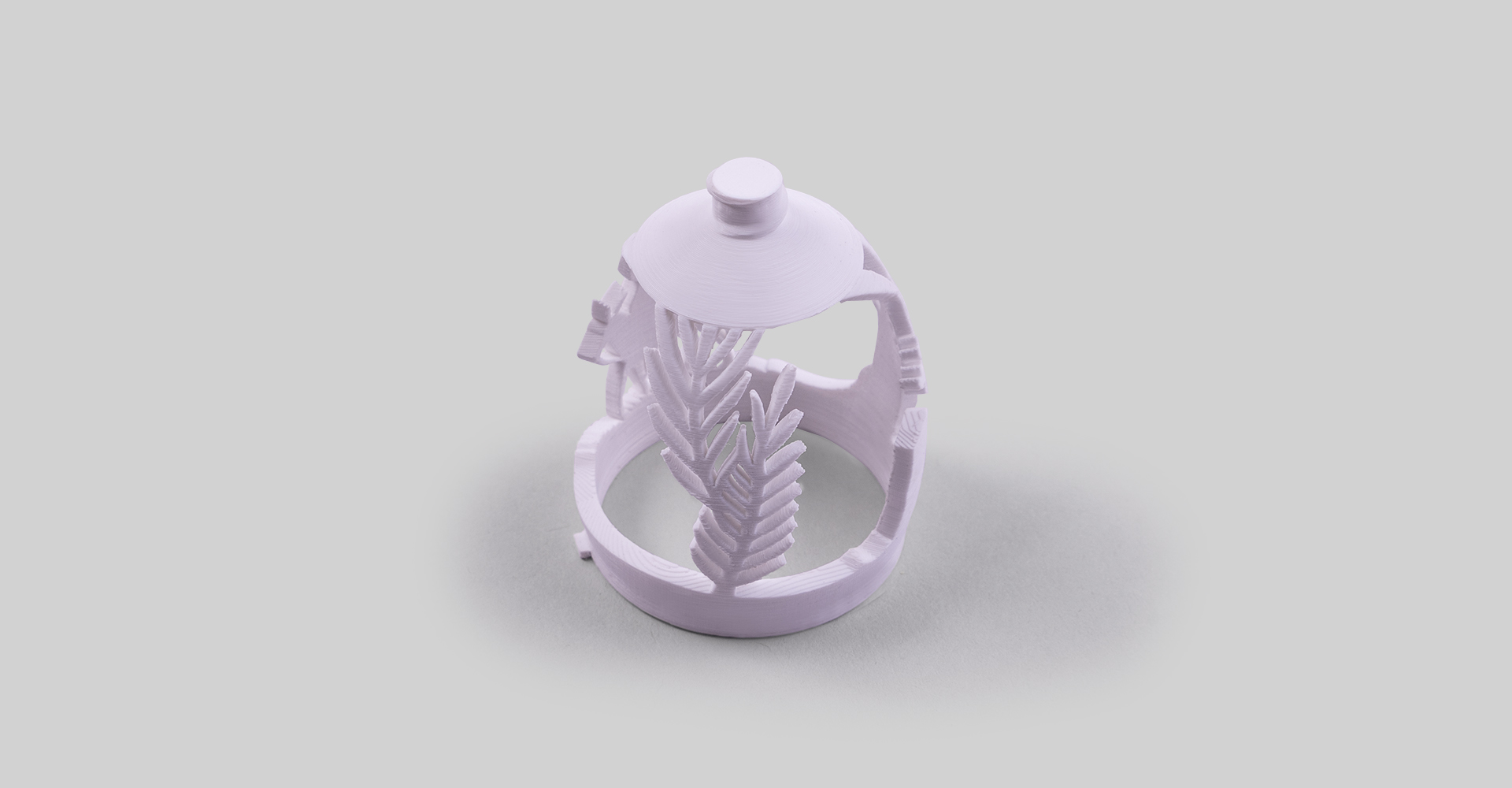

These egg lights are made up of 3 layers. Simply screw the innermost layer onto the bottom piece, place the other two layers on top of it, and screw the cross piece onto the top protrusion.

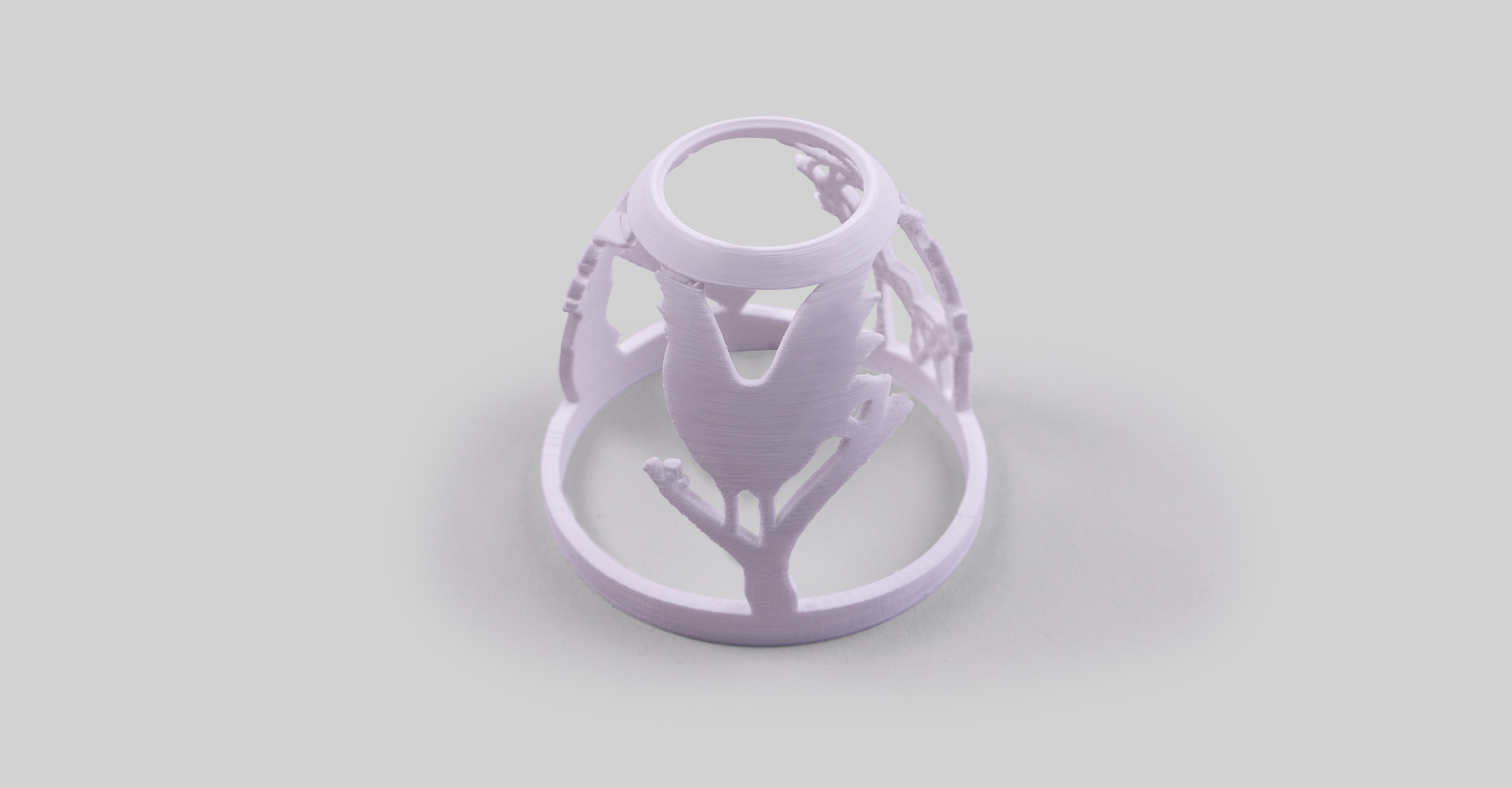

The innermost layer is fixed, but the middle and outer layers can be rotated to reveal the desired story.

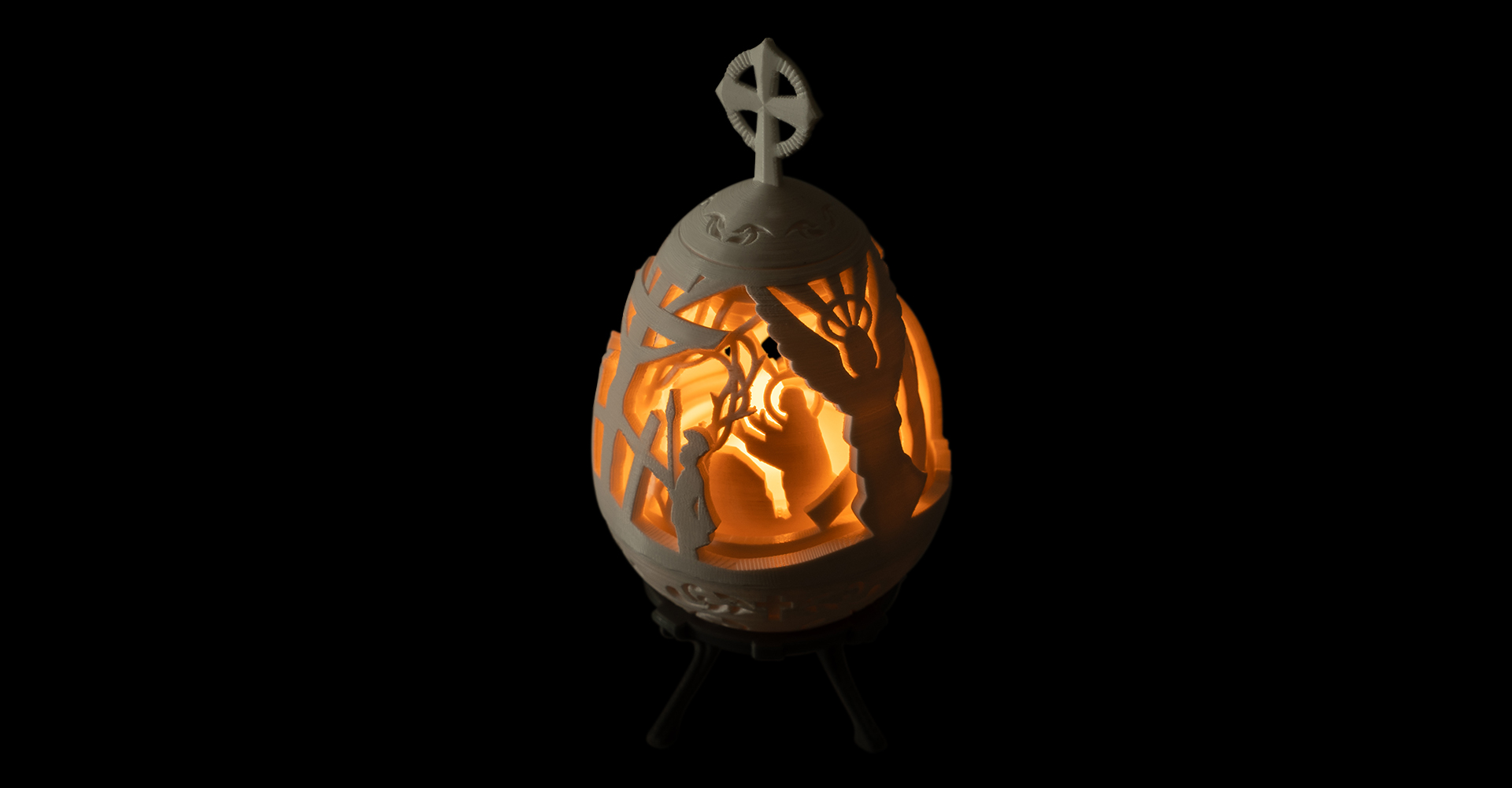

If you put a LED tealight candle light inside the egg, the light will come out between these pictures and use it as lighting.
Please refer to the video for detailed usage.
When printing each layer, it is recommended to use a support or lower the printing speed to 2400mm/min or less, as the branches of the tree are thin and shake during printing, and the printing quality may not be good.
Easter is a good day to share blessings with each other, but I want you to reflect on its original meaning as well.
Largest part in printing, size = X 66mm, Y 66mm, Z 110mm, After full assembly size= X 66mm, Y 66mm, Z 51mm(With Stand Z 131mm)
Total Build Time : 17h 55m / Plastic Weight : 57g
| PRUSA Slicing Settings | Simplify 3D |
|---|---|
| Extruder | Nozzle Diameter : 0.4mm / Retraction Distance : 2.4mm |
| Layer Settings | Layer Height : 0.1mm or 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2 |
| First Layer Settings | First Layer Height : 100% / First Layer Width : 100% / First Layer Speed : 80% |
| Infill | Interior Fill Percentage : 15% / Outline Overlap : 30% |
| Additions | Raft : NO / Brim : NO / Support : NO |
| PRUSA Slicing Settings | Prusa Slicer |
| PRUSA MK3 | Layer Height : 0.1mm or 0.2mm / Raft : NO / Brim : NO / Support : NO |
| Ender Slicing Settings | Simplify 3D |
| Extruder | Nozzle Diameter : 0.4mm / Retraction Distance : 5.4mm |
| Layer Settings | Layer Height : 0.1mm or 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2 |
| First Layer Settings | First Layer Height : 120% / First Layer Width : 150% / First Layer Speed : 50% |
| Infill | Interior Fill Percentage : 15% / Outline Overlap : 30~40% |
| Additions | Raft : NO / Brim : NO / Support : NO |
| Ender Slicing Settings | Cura |
| Quality | Layer Height : 0.1mm or 0.2mm / Line Width : 0.4mm |
| Shell | Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6 |
| Infill | Infill Density : 20% / Pattern : Grid |
| Material | Flow : 100% / Retraction Distance : 5.4mm |
| Additions | Raft : NO / Brim : NO / Support : NO |
| CR-10S Pro Slicing Setting | Cura |
| Quality | Layer Height : 0.1mm or 0.2mm / Line Width : 0.4mm |
| Shell | Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6 |
| Infill | Infill Density : 20% / Pattern : Grid |
| Material | Flow : 100% / Retraction Distance : 5.4mm |
| Additions | Raft : NO / Brim : NO / Support : NO |
Notice !
Feel free to talk about your product.
Comments that are irrelevant to the topic may be deleted
did you make it? please write making story !
Write Review
Another model that is extremely hard to print even with a Prusa MK3S+ in a Prusa Enclosure. I tried all your suggestions.
If you post pictures of how difficult something is to print, we can give you some advice.
Thank you~
I am having the same problem tried 2 times.
