GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf. This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.
Mario in the game Super Mario is a very unique character in the game field. I think it's one of the few characters that are loved by so many fans. But none of the 3D printed designs were to my liking. So, for a long time, I had the idea to make it well. In the meantime, I heard that the Super Mario movie was released this time, so I made Mario to match it.
First of all, color division was designed with top priority.
And we put a lot of effort into the design of the joints so that we can create various postures.

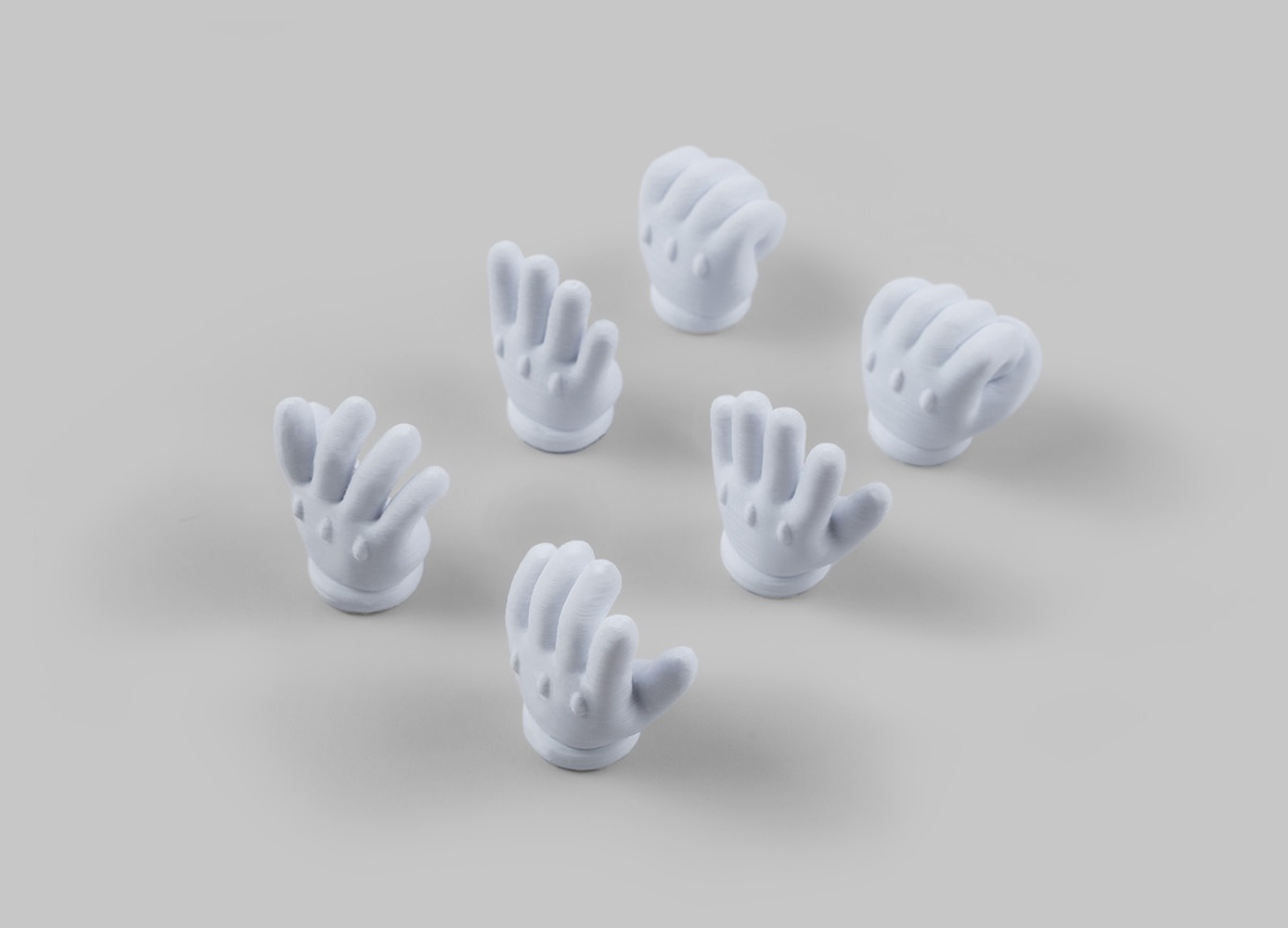

It was designed so that three types of hands can be created and replaced.
The assembly process is very simple, but there are a few things you need to be careful about.
When connecting the torso (blue) and arms (red), the arms are folded and put in a space that is wide open in front and back without fully assembling the torso.
After positioning the arm inside the body like this, you can insert it by stepping back and forth from the body. When inserting the arm, the shape of the front and back is different, so please pay attention here as well.
Make sure that the pupils and eyebrows match well by inserting them in advance before using the adhesive.
There is no distinction between left and right feet.
If you want to take a posture with your legs spread, you can easily create a posture by adjusting the angle of your ankles well.
Please check the video for details.
Printing on Prusa 3D printer video ➪
Printing on Ender 3 3D printer video ➪
I hope that this Super Mario will be downloaded and printed from the many makers who love this character.
1 : 13 Scale
Largest part in printing, size = X 88.5mm, Y 91.2mm, Z 28.9mm, After full assembly size= X 75.7mm, Y 53.8mm, Z 120.4mm
Total Build time : 18h 25m / Plastic weight : 69.32g
| PRUSA Slicing Settings | Simplify 3D |
|---|---|
| Extruder | Nozzle Diameter : 0.4mm / Retraction Distance : 2.4mm |
| Layer Settings | Layer Height : 0.1mm(High Quality) or 0.2mm(Low Quality) / Top Solid : 8 / Bottom Solid : 6 / Outline : 2 |
| First Layer Settings | First Layer Height : 100% / First Layer Width : 100% / First Layer Speed : 80% |
| Infill | Interior Fill Percentage : 15% / Outline Overlap : 30% |
| Additions | Raft : NO / Brim : NO / Support : NO |
| PRUSA Slicing Settings | Prusa Slicer |
| PRUSA MK3 | Layer Height : 0.1mm(High Quality) or 0.2mm(Low Quality) / Raft : NO / Brim : NO / Support : NO |
| Ender Slicing Settings | Simplify 3D |
| Extruder | Nozzle Diameter : 0.4mm / Retraction Distance : 5.4mm |
| Layer Settings | Layer Height : 0.1mm(High Quality) or 0.2mm(Low Quality) / Top Solid : 8 / Bottom Solid : 6 / Outline : 2 |
| First Layer Settings | First Layer Height : 120% / First Layer Width : 150% / First Layer Speed : 50% |
| Infill | Interior Fill Percentage : 15% / Outline Overlap : 30~40% |
| Additions | Raft : NO / Brim : NO / Support : NO |
| Ender Slicing Settings | Cura |
| Quality | Layer Height : 0.1mm(High Quality) or 0.2mm(Low Quality) / Line Width : 0.4mm |
| Shell | Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6 |
| Infill | Infill Density : 20% / Pattern : Grid |
| Material | Flow : 100% / Retraction Distance : 5.4mm |
| Additions | Raft : NO / Brim : NO / Support : NO |
| CR-10S Pro Slicing Settings | Cura |
| Quality | Layer Height : 0.1mm(High Quality) or 0.2mm(Low Quality) / Line Width : 0.4mm |
| Shell | Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6 |
| Infill | Infill Density : 20% / Pattern : Grid |
| Material | Flow : 100% / Retraction Distance : 5.4mm |
| Additions | Raft : NO / Brim : NO / Support : NO |
