GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf. This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.

+ more- less

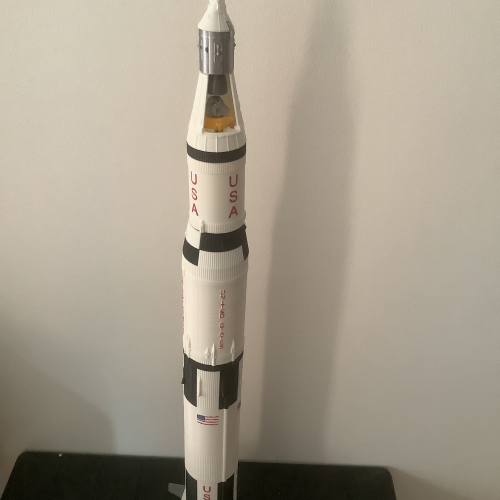

I've finally completed the Saturn V rocket that spacecraft/rocket fans have been constantly asking me to build.
Features of this design include:
1. The process of launching this rocket, landing on the moon, and returning to Earth was all reproduced as desired.
2. Efficient color segmentation tried to color the prototype Saturn V well.
3. I tried to express all the details based on various materials.

This design, like the other rockets I've designed, is large and has a lot of parts, so it will take a long time to complete a print.
There are a few things to note about this process.
1. Depending on the separation phase of your rocket, there are things you can and shouldn't use glue for. Please check this carefully.
2. The characters are slightly skewed for better printing. Please check the direction of this tilt carefully and put it in advance before bonding.
3. Fold the escape tower well and insert it well into the hole at the bottom of the launch escape system and insert it well into the hole at the top of the boost protective cover. And use adhesive to fix it, so you have to be careful to fit it vertically.
4. The lunar lander's landing gear fits well by turning and twisting it like the pistons of the heavy equipment I designed. These landing gears have a slight indentation where the U-shaped structure fits, care must be taken not to break this part.
5. Alphabets are written from A to D on the booster stabilizer fin of the first stage rocket. Please check this order and the position where they fit.

As always, we hope for a lot of support from fans in the aerospace field.

Total Build Time : 7d 1h 6m / Plastic Weight : 756g

1 : 144 scale
Largest part in printing, size = X 96mm, Y 96mm, Z 132mm, After full assembly size= X 96mm, Y 96mm, Z 776mm

Total Build Time : 7d 1h 6m / Plastic Weight : 756g

PRUSA Slicing Settings	Simplify 3D
Extruder	Nozzle Diameter : 0.4mm / Retraction Distance : 2.4mm
Layer Settings	Layer Height : 0.1mm(High Quality) or 0.2mm(Low Quality) / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings	First Layer Height : 100% / First Layer Width : 100% / First Layer Speed : 80%
Infill	Interior Fill Percentage : 15% / Outline Overlap : 30%
Additions	Raft : NO / Brim : NO / Support : NO

PRUSA Slicing Settings	Prusa Slicer
PRUSA MK3	Layer Height : 0.1mm(High Quality) or 0.2mm(Low Quality) / Raft : NO / Brim : NO / Support : NO

Ender Slicing Settings	Simplify 3D
Extruder	Nozzle Diameter : 0.4mm / Retraction Distance : 5.4mm
Layer Settings	Layer Height : 0.1mm(High Quality) or 0.2mm(Low Quality) / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings	First Layer Height : 120% / First Layer Width : 150% / First Layer Speed : 50%
Infill	Interior Fill Percentage : 15% / Outline Overlap : 30~40%
Additions	Raft : NO / Brim : NO / Support : NO

Ender Slicing Settings	Cura
Quality	Layer Height : 0.1mm(High Quality) or 0.2mm(Low Quality) / Line Width : 0.4mm
Shell	Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6
Infill	Infill Density : 20% / Pattern : Grid
Material	Flow : 100% / Retraction Distance : 5.4mm
Additions	Raft : NO / Brim : NO / Support : NO

CR-10S Pro Slicing Settings	Cura
Quality	Layer Height : 0.1mm(High Quality) or 0.2mm(Low Quality) / Line Width : 0.4mm
Shell	Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6
Infill	Infill Density : 20% / Pattern : Grid
Material	Flow : 100% / Retraction Distance : 5.4mm
Additions	Raft : NO / Brim : NO / Support : NO

File: File 148.5 MB

Release Date: 2023-06-08

Average Time: [0.1 mm] First Stage Assembly Bottom White : 1d 4h 55m / 125g; [0.1 mm] First Stage Assembly Mid White : 23h 20m / 95g; [0.1 mm] First Stage Assembly Top White : 6h / 22g; [0.1 mm] First Stage Assembly Bottom Black 1 : 2h 40m / 10g; [0.1 mm] First Stage Assembly Bottom Black 2 : 2h 35m / 10g ( x3 ); [0.1 mm] First Stage Assembly Mid Black : 2h 40m / 10g; [0.1 mm] F1 Egine Silver X5 : 1h 50m / 6g ( x5 ); [0.1 mm] First Stage Assembly Top Black : 40m / 3g ( x4 ); [0.1 mm] Guard Silver : 36m / 2g ( x4 ); [0.1 mm] Stabilizing Fin A Silver : 35m / 2g; [0.1 mm] Stabilizing Fin B Silver : 35m / 2g; [0.1 mm] Stabilizing Fin C Silver : 35m / 2g; [0.1 mm] Stabilizing Fin D Silver : 35m / 2g; [0.1 mm] Text USA Red : 8m / 3g ( x4 ); [0.1 mm] Second Stage Assembly Mid White : 1d 3h / 145g; [0.1 mm] Second Stage J2 Engine Silver : 8h 35m / 35g; [0.1 mm] Second Stage Assembly Top Black : 5h / 20g; [0.1 mm] Second Stage Assembly Bottom Black : 2h 35m / 10g; [0.1 mm] Second Stage Assembly Top White L : 1h 45m / 6g; [0.1 mm] Second Stage Assembly Top White R : 35m / 2g; [0.1 mm] Third Stage Assembly Bottom White : 12h / 60g; [0.1 mm] Third Stage J2 Engine Silver : 4h 30m / 20g; [0.1 mm] Third Stage Assembly Top White : 3h 40m / 15g; [0.1 mm] Third Stage Assembly Mid Black : 2h 50m / 20g; [0.1 mm] Lunar Module Adapter : 1h 5m/ 4g ( x4 ); [0.1 mm] Text USA Red : 8m/ 3g ( x4 ); [0.1 mm] Boost ProTective Cover Whtie : 41m / 2g; [0.1 mm] Service Module Slik Silver : 2h 10m / 10g; [0.1 mm] Command Module Silk Silver : 1h / 5g; [0.1 mm] Service Module Booster Silver : 1h / 4g; [0.1 mm] Launch Escape System White : 15m / 1g; [0.1 mm] Launch Escape Tower White : 8m / 1g; [0.1 mm] Docking System Silk Silver : 3m / 1g; [0.1 mm] Lunar Module Head Silk Silver : 40m/ 2g; [0.1 mm] Lunar Module Body Gold : 40m / 4g; [0.1 mm] Lunar Module Booster Silver : 12m / 1g; [0.1 mm] Lunar Module Lending Gear Gold : 2m / 1g ( x4 )
