Panther Ausf.G - Panzer V
$ 5.49
GOODesign
GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf. This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.
At the request of many military fans, this time I designed the Panzer V.
This tank was developed to counter the Soviet Union's T-34, which had a great impact on German armored forces during the German-Russian War that broke out in June 1941, and then served in Germany along with the Tiger tank until the end of World War II. It served as the main force of the cavalry unit.
The process of folding and assembling this tank is similar to the tanks I have designed before, but with a few caveats.
First, there are two concave and convex wheels with different shapes, and there is an order to fit them to the wheel axle. You have to put all the convex wheels on the short axle first, then put the concave ones on the long axle.
Second, when attaching the rear exhaust, you have to attach the lower part first and then the part that covers it.
Please check the video for more detailed process.
Printing on creality 3D printer video ➪
I am always considering your production requests. We look forward to your many production requests.
Please enjoy~
Total Build Time : 2d 1h 16m/ Plastic Weight : 194g
1 : 48 scale
Largest part in printing, size = X 128mm, Y 185mm, Z 110mm, After full assembly size= X 80mm, Y 190mm, Z 68mm
| PRUSA Slicing Settings | Simplify 3D |
|---|---|
| Extruder | Nozzle Diameter : 0.4mm / Retraction Distance : 2.4mm |
| Layer Settings | Layer Height : 0.1mm(High Quality) or 0.2mm(Low Quality) / Top Solid : 8 / Bottom Solid : 6 / Outline : 2 |
| First Layer Settings | First Layer Height : 100% / First Layer Width : 100% / First Layer Speed : 80% |
| Infill | Interior Fill Percentage : 15% / Outline Overlap : 30% |
| Additions | Raft : NO / Brim : NO / Support : NO |
| PRUSA Slicing Settings | Prusa Slicer |
| PRUSA MK3 | Layer Height : 0.1mm(High Quality) or 0.2mm(Low Quality) / Raft : NO / Brim : NO / Support : NO |
| Ender Slicing Settings | Simplify 3D |
| Extruder | Nozzle Diameter : 0.4mm / Retraction Distance : 5.4mm |
| Layer Settings | Layer Height : 0.1mm(High Quality) or 0.2mm(Low Quality) / Top Solid : 8 / Bottom Solid : 6 / Outline : 2 |
| First Layer Settings | First Layer Height : 120% / First Layer Width : 150% / First Layer Speed : 50% |
| Infill | Interior Fill Percentage : 15% / Outline Overlap : 30~40% |
| Additions | Raft : NO / Brim : NO / Support : NO |
| Ender Slicing Settings | Cura |
| Quality | Layer Height : 0.1mm(High Quality) or 0.2mm(Low Quality) / Line Width : 0.4mm |
| Shell | Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6 |
| Infill | Infill Density : 20% / Pattern : Grid |
| Material | Flow : 100% / Retraction Distance : 5.4mm |
| Additions | Raft : NO / Brim : NO / Support : NO |
| CR-10S Pro Slicing Settings | Cura |
| Quality | Layer Height : 0.1mm(High Quality) or 0.2mm(Low Quality) / Line Width : 0.4mm |
| Shell | Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6 |
| Infill | Infill Density : 20% / Pattern : Grid |
| Material | Flow : 100% / Retraction Distance : 5.4mm |
| Additions | Raft : NO / Brim : NO / Support : NO |
Notice !
Feel free to talk about your product.
Comments that are irrelevant to the topic may be deleted

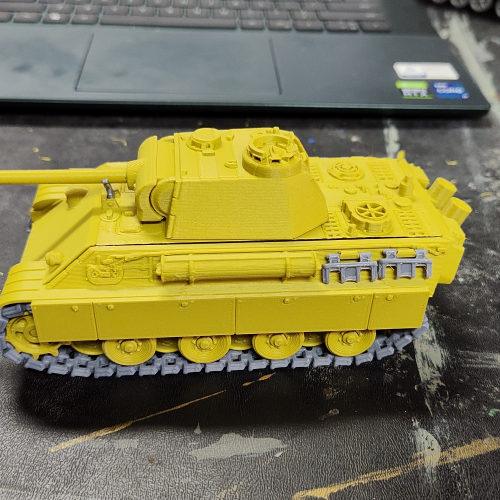

did you make it? please write making story !
Write Review
YESSSS! Been waiting for this one!
Will be good, if you will post what type of filament did you used to each parts
They wont tell you, but I'd just say Army green with silver 🤷♂️
It's olive green with grey.I asked and got an answer. I would print the trays with dark grey....
