Tron Recognizer
$ 3.99
Summer
I love working with 3-D designs, which allow me to create almost anything in the universe. I originally studied textile design and have worked at high-end fashion brands in NY and Paris. Thanks to these experiences, I have a keen eye for details in design, and I believe that this makes my 3-D works more sophisticated. I can’t wait to model lots of fun objects and hope my works will bring a little pleasure into peoples’ everyday lives.
This is the first 3D printing design designed by Fab365 and designed by me.
Recognizer from the 1982 movie Tron.
I think it will be a work that brings nostalgia to those who have seen the movie because it captures the real Tron from all angles as much as possible, not just from the front.

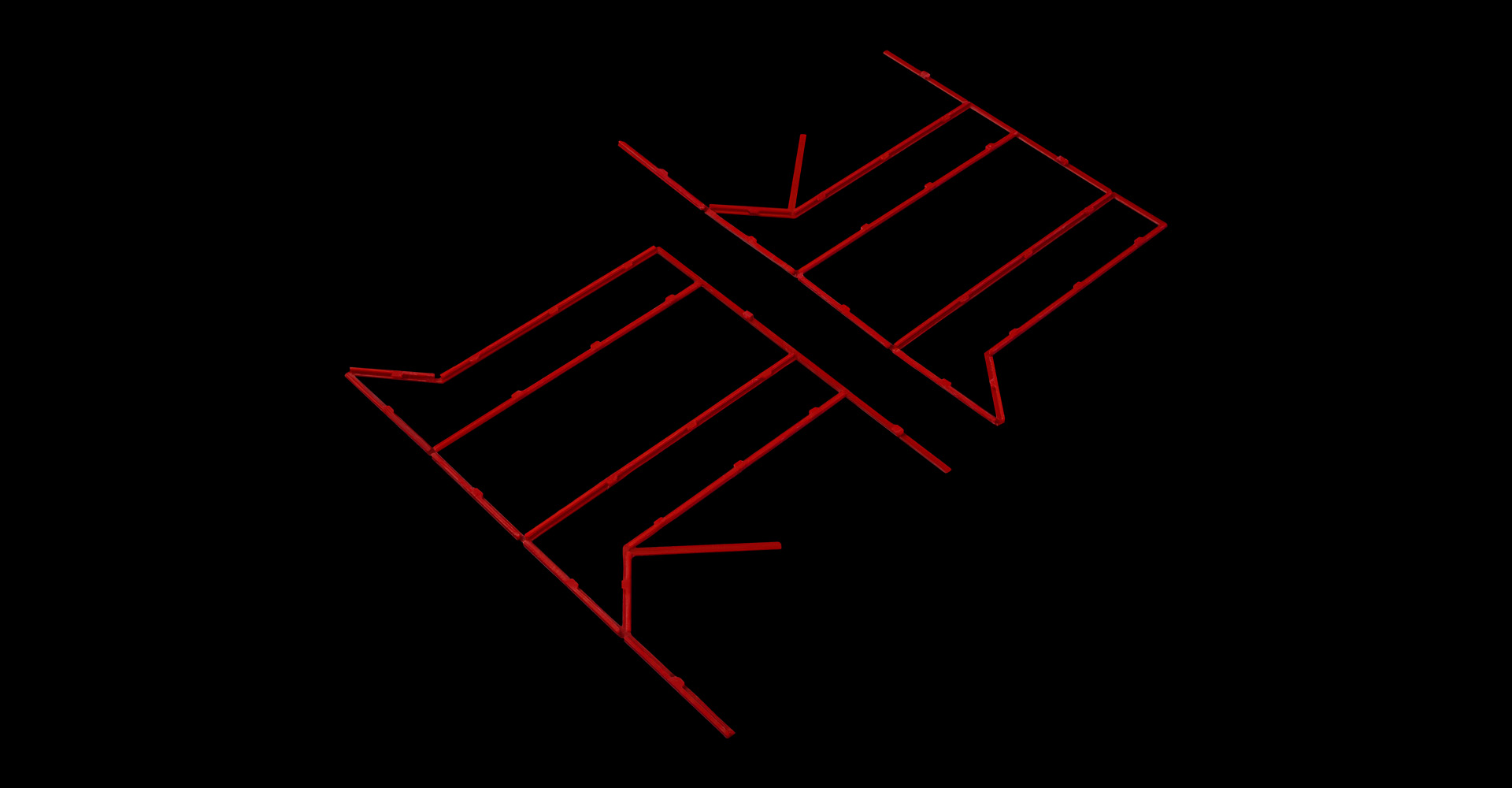

To represent the Recognizer's wireframe as seen in the movie, I used Fab365's folding design technique to glue the frame to all corners.
I made a protrusion to attach this frame better so that it can be positioned when gluing.
It's difficult to glue because the frame is thin, but if you stick it little by little, you can see the Recognizer that looks like it came out of a movie screen.
Please refer to the video for the process of folding and gluing the frame.
Printing on creality 3D printer video ➪
This is just the beginning, but in the future I want to make some better 3D printing designs.
We hope for your support.
Thank you.
Please enjoy~
Largest part in printing, size = X 176mm, Y 69mm, Z 42mm, After full assembly size= X 178mm, Y 43mm, Z 152mm
Total Build Time : 30h 13m / Plastic Weight : 130.5g
| PRUSA Slicing Settings | Simplify 3D |
|---|---|
| Extruder | Nozzle Diameter : 0.4mm / Retraction Distance : 2.4mm |
| Layer Settings | Layer Height : 0.1mm(High Quality) or 0.2mm(Low Quality) / Top Solid : 8 / Bottom Solid : 6 / Outline : 2 |
| First Layer Settings | First Layer Height : 100% / First Layer Width : 100% / First Layer Speed : 80% |
| Infill | Interior Fill Percentage : 15% / Outline Overlap : 30% |
| Additions | Raft : NO / Brim : NO / Support : NO |
| PRUSA Slicing Settings | Prusa Slicer |
| PRUSA MK3 | Layer Height : 0.1mm(High Quality) or 0.2mm(Low Quality) / Raft : NO / Brim : NO / Support : NO |
| Ender Slicing Settings | Simplify 3D |
| Extruder | Nozzle Diameter : 0.4mm / Retraction Distance : 5.4mm |
| Layer Settings | Layer Height : 0.1mm(High Quality) or 0.2mm(Low Quality) / Top Solid : 8 / Bottom Solid : 6 / Outline : 2 |
| First Layer Settings | First Layer Height : 120% / First Layer Width : 150% / First Layer Speed : 50% |
| Infill | Interior Fill Percentage : 15% / Outline Overlap : 30~40% |
| Additions | Raft : NO / Brim : NO / Support : NO |
| Ender Slicing Settings | Cura |
| Quality | Layer Height : 0.1mm(High Quality) or 0.2mm(Low Quality) / Line Width : 0.4mm |
| Shell | Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6 |
| Infill | Infill Density : 20% / Pattern : Grid |
| Material | Flow : 100% / Retraction Distance : 5.4mm |
| Additions | Raft : NO / Brim : NO / Support : NO |
| CR-10S Pro Slicing Settings | Cura |
| Quality | Layer Height : 0.1mm(High Quality) or 0.2mm(Low Quality) / Line Width : 0.4mm |
| Shell | Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6 |
| Infill | Infill Density : 20% / Pattern : Grid |
| Material | Flow : 100% / Retraction Distance : 5.4mm |
| Additions | Raft : NO / Brim : NO / Support : NO |
