Armadillo -Print in place Foldable
$ 4.99
Greedy fox
Design most often requires a usable design for a purpose. I also ask for something interesting. Among them, I like to have fun. In that sense, I think it goes well with 3D printing. The good thing is that you can make it at will. It is difficult for a married woman to work. Still, I try not to miss it. In the eyes of the children, such a side seemed to be seen as a greedy mother. Seeing me like this, her daughter gave me the name ‘greedy fox’.
This is Armadillo worked with FAB365. I accepted FAB365's idea that it would be good to develop it from the structure of the shrimp I had previously designed, and completed it with the help of FAB365 in designing the structure.
However, it was very difficult to transform the shape by rolling it into a sphere.
At first, I thought of a more realistic shape, but I thought it would be better to design it cutely, so I designed the head to be large and the body to be short.
For this, several modifications were necessary.
The part where my head went in was especially difficult.
And depending on the condition of having to put the leg inward, the foot had to be modified several times. The long toenails were removed and designed to be short.
The scales covering the entire body were actually flat and round scales laid out in a regular pattern, but they did not look natural, so they were changed randomly.

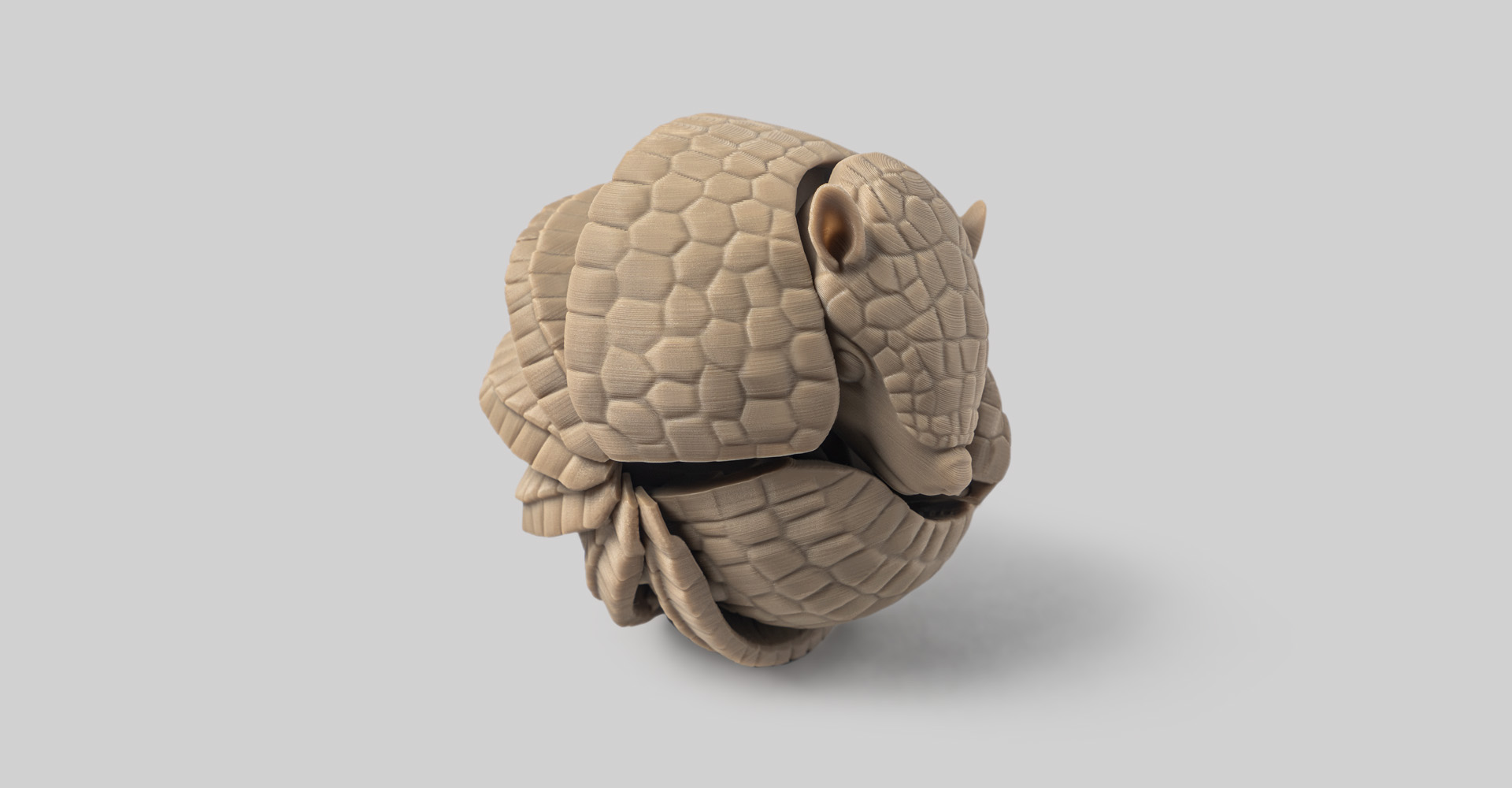

After going through this arduous process, an armadillo that could roll up into an almost spherical shape was finally completed.
When making and modifying this armadillo, you must know the following precautions.
1. A support was created for output stability, so be sure to remove it.
2. The stick connecting the head and tail to the body must be raised all the way to the top.
3. To make the body unfold, hold the head forward and then tilt the head back to secure it well.
4. The connecting part can be connected either at the front or the back, but it is better to connect it at the back because it is not visible when the body is unfolded.
5. When inserting the connecting part in the front, insert it in the front direction, and when inserting it in the back, insert it in the rear direction.
6. Connecting parts can be attached with adhesive.
7. When raising or folding the front legs, please check carefully as they may interfere with the torso.
Please check out the video for detailed instructions on how to make and operate it.
Print and build video ➪
Although the process was very difficult, I am very happy that in the end it was completed in a form that was close to what FAB365 and I imagined.
I hope you all enjoy this joy together.
Largest part in printing, size = X 94mm, Y 138mm, Z 30mm, After full assembly size= X 57mm, Y 146mm, Z 46mm
Total Build Time : 11h 12m / Plastic Weight : 42.2g
| PRUSA Slicing Settings | Simplify 3D |
|---|---|
| Extruder | Nozzle Diameter : 0.4mm / Retraction Distance : 2.4mm |
| Layer Settings | Layer Height : 0.1mm(High Quality) or 0.2mm(Low Quality) / Top Solid : 8 / Bottom Solid : 6 / Outline : 2 |
| First Layer Settings | First Layer Height : 100% / First Layer Width : 100% / First Layer Speed : 80% |
| Infill | Interior Fill Percentage : 15% / Outline Overlap : 30% |
| Additions | Raft : NO / Brim : NO / Support : NO |
| PRUSA Slicing Settings | Prusa Slicer |
| PRUSA MK3 | Layer Height : 0.1mm(High Quality) or 0.2mm(Low Quality) / Raft : NO / Brim : NO / Support : NO |
| Ender Slicing Settings | Simplify 3D |
| Extruder | Nozzle Diameter : 0.4mm / Retraction Distance : 5.4mm |
| Layer Settings | Layer Height : 0.1mm(High Quality) or 0.2mm(Low Quality) / Top Solid : 8 / Bottom Solid : 6 / Outline : 2 |
| First Layer Settings | First Layer Height : 120% / First Layer Width : 150% / First Layer Speed : 50% |
| Infill | Interior Fill Percentage : 15% / Outline Overlap : 30~40% |
| Additions | Raft : NO / Brim : NO / Support : NO |
| Ender Slicing Settings | Cura |
| Quality | Layer Height : 0.1mm(High Quality) or 0.2mm(Low Quality) / Line Width : 0.4mm |
| Shell | Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6 |
| Infill | Infill Density : 20% / Pattern : Grid |
| Material | Flow : 100% / Retraction Distance : 5.4mm |
| Additions | Raft : NO / Brim : NO / Support : NO |
| CR-10S Pro Slicing Settings | Cura |
| Quality | Layer Height : 0.1mm(High Quality) or 0.2mm(Low Quality) / Line Width : 0.4mm |
| Shell | Wall Line Count : 2 / Top Solid : 8 / Bottom Solid : 6 |
| Infill | Infill Density : 20% / Pattern : Grid |
| Material | Flow : 100% / Retraction Distance : 5.4mm |
| Additions | Raft : NO / Brim : NO / Support : NO |
Notice !
Feel free to talk about your product.
Comments that are irrelevant to the topic may be deleted
did you make it? please write making story !
Write Review
I printed this cute design twice now. Once at 150% but the head kept falling off, so I printed it at normal size, but unfortunately I still get the same problem. The head detaches very easily. For the 150 % one, I tried to fix it by attaching a bridge and this seems to hold it a bit better.
