Multi purpose chest - Volkswagen T1 Camper Van

$ 2.99

Designer

GOODesign

GOODesign is a design studio established in Seoul, Korea by a representative who has been active in product design and 3D CG field for 20 years. As a design company that pursues a reasonable and differentiated digital design, it has always presented a new direction through working with clients such as Hyundai Motor, Siemens Korea and beiersdorf.   This time, we have put out the life product for 3D printing by utilizing various technique design based on the shape of the Class-A surface. These products are especially the result of deep research on the 3D printing dominant shape that can not be mass-produced using a mold.

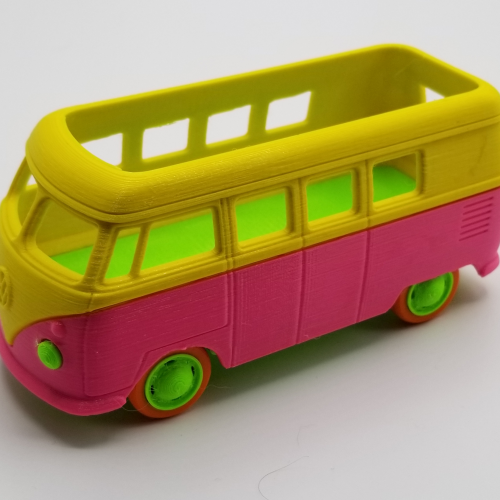

It is a multi purpose chest with mini bus shape.
I removed the ceiling of the car so that anybody could put in various miscellaneous things and easily find things.

It is divided into the lower part of the body and the outside, and the outside is divided again into two for the expression of various colors.

One of the biggest advance of this design is that it can be output at once without assembling the axle of the wheel. This feature is one of the advantages of 3D printing, and it is specially designed to take advantage of this feature.

The lower part of this car does not need support but outside requires external support. However, since the design is designed so that the support is not needed as much as possible, there will be little traces left after removing the support.

I designed it as a jukebox, but it would be a good toy for young children.

Please take a look at the benefits of 3D printing that you do not have to assemble through this design.

Prusa Slicing settings
infill 10%, Outline Overlap 30%
Layer thickness 0.1 or 0.2mm, Retraction 2.4mm, nozzle 0.4mm, Print speed 2400mm/min, No support, No brim, Raft is OK, Recommend filament : PLA
First Layer Settings - First Layer Height : 150%, First Layer Width : 90%, First Layer Speed : 50%
Raft settings - Raft Top Layers : 2, Raft Base Layers : 1, Raft Offset from Part : 3~5mm, Separation Distance 0.1mm, Raft Top Infill 100%, Above Raft Speed : 30%

XYZ - 56 x 143 x 67mm

PRUSA Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 2.4mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 150% / First Layer Width : 100% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 30%
Additions Raft : OK / Brim : NO / Support : NO
Ender Slicing Settings Simplify 3D
Extuder Nozzle Diameter : 0.4mm / Retraction Distance : 4mm
Layer Settings Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2
First Layer Settings First Layer Height : 120% / First Layer Width : 100% / First Layer Speed : 50%
Infill Interlor Fill Percentage : 10% / Outline Overlap : 40%
Additions Raft : OK / Brim : NO / Support : NO
File
File 61.8 MB
Recommend Print
Replicator 2
Ultimaker 3
Ultimaker 2+
Material Color
All
Average Time
[0.1mm] 42h 30m
  • ewanp Creality CR-XCura
    2021-01-16 06:06:25

    So can body_01 be printed without supports?

  • 4cpus4me
    2020-12-11 09:31:37

    Here's another print I did, this time at 125% original scale. The bottom orange part warped a little and gave me trouble because I had the bed temp way too low by accident, but it still worked.

    This is a nice model that is strangely rewarding when you get it all assembled.

  • tsirik Prusa i3 Mk3/Mk3sSimplify3D
    2020-10-25 04:09:07

    Hi

    I have an issue when I am printing the first file.
    The print goes fine and 2 hours approx. before ends my extruder clog.

    Try different sizes , temperatures, retraction settings, filaments, test prints but nothing works.
    Everytime the print fails in the EXACT same spot.

    I am slicing it with stock PrusaSlic3r settings at my mk3s and 12deg supports.
    My extruder is clean and other prints with a lot of supports and bridges comes out perfectly.

    Really can't undestand what happent and what to tweak to print this file.

    fab365 Administrator
    2020-10-26 12:42:55

    I recommend to reduce retraction length and speed. I guess extrusion gears slipping by too much retraction. and I recommend 40mm/sec print speed.

  • andrejensen Creality Ender-3Simplify3D
    2020-01-10 07:17:56

    hi i just bought this model and i came to think if it is possible to make a lid for it so it looks like the roof ??

    fab365 Administrator
    2020-01-14 16:30:37

    We have plans for that.
    Please wait and expect~
    Thank you~

  • Steven Mathiasen Prusa i3 Mk3/Mk3sPrusaSlicer
    2019-12-18 07:07:37

    VW T1 Bus 150% Scale.
    Printer: Prusa MK3s and Prusa SL1.
    Filament/resin: Spectrum filament and Wanhao water washable from www.3dstore.dk
    Print time: ~34Hours

    Awesome model ;)

    fab365 Administrator
    2020-01-14 16:33:51

    Thank you for awesome print quality~ And thank you for sharing your settings and experiences.
    We think your prints are better than us.
    We hope you print more in the future.

  • chevysource Creality Ender-3Cura
    2019-11-22 13:19:05

    Really love the model. The only issue I have is the area between the front headlamps and the point is really thin and has gaps and cracks. I have tried different setting and printed it 3 times and it comes out the same every time.

    fab365 Administrator
    2020-01-14 18:22:26

    Thank you for your good print and advice.
    Especially, the color you chosen is great~
    We will consider your idea for the future.
    Thank you~

  • 4cpus4me
    2019-10-28 02:46:46

    Nice model. Prints easily and the fit of the parts was excellent, only required some sanding of the hexagon areas of the axles to get the wheels to snap on. I just hot-glued the red body panel on because I was in a hurry and nothing really holds it in place.

    fab365 Administrator
    2019-11-07 22:32:29

    I was surprised that your printing was so clean.
    But it's too bad that the glue spilled. It would be nice to print it out again.
    We look forward to your many printing photos and reviews.
    Thank you very much~

  • numanerdogan
    2019-07-10 06:09:50

    what type of file are you sharing? stl or sldprt?

    fab365 Administrator
    2019-07-10 11:34:22

    We sell STL files.

  • intelli Prusa i3 Mk3/Mk3sPrusaSlicer
    2019-03-09 18:33:02

    Hey I love the design and I bought to to print for my daughter.
    Can you share your print settings for this on a MK3 with slic3er PE?
    Very much appreciated!

    fab365 Administrator
    2019-03-09 22:55:21

    Thank you! We put slice settings on information(above explanation) Happy 3D printing!

  • Daveb
    2018-04-06 04:59:37

    How well would the scale up?

    fab365 Administrator
    2018-04-06 11:19:15

    Depending on the size of the 3D printer, it does not matter if the size is printed large. Small prints, however, can cause problems. We succeeded in making it as small as 70%.
