Villa Savoye (French pronunciation: [sa.vwa]) is a modernist villa in Poissy, on the outskirts of Paris, France. It was designed by Swiss architects Le Corbusier and his cousin, Pierre Jeanneret, and built between 1928 and 1931 using reinforced concrete. A manifesto of Le Corbusier's "five points" of new architecture, the villa is representative of the bases of modern architecture, and is one of the most easily recognizable and renowned examples of the International style.
In July 2016, the house and several other works by Le Corbusier were inscribed as UNESCO World Heritage Sites.

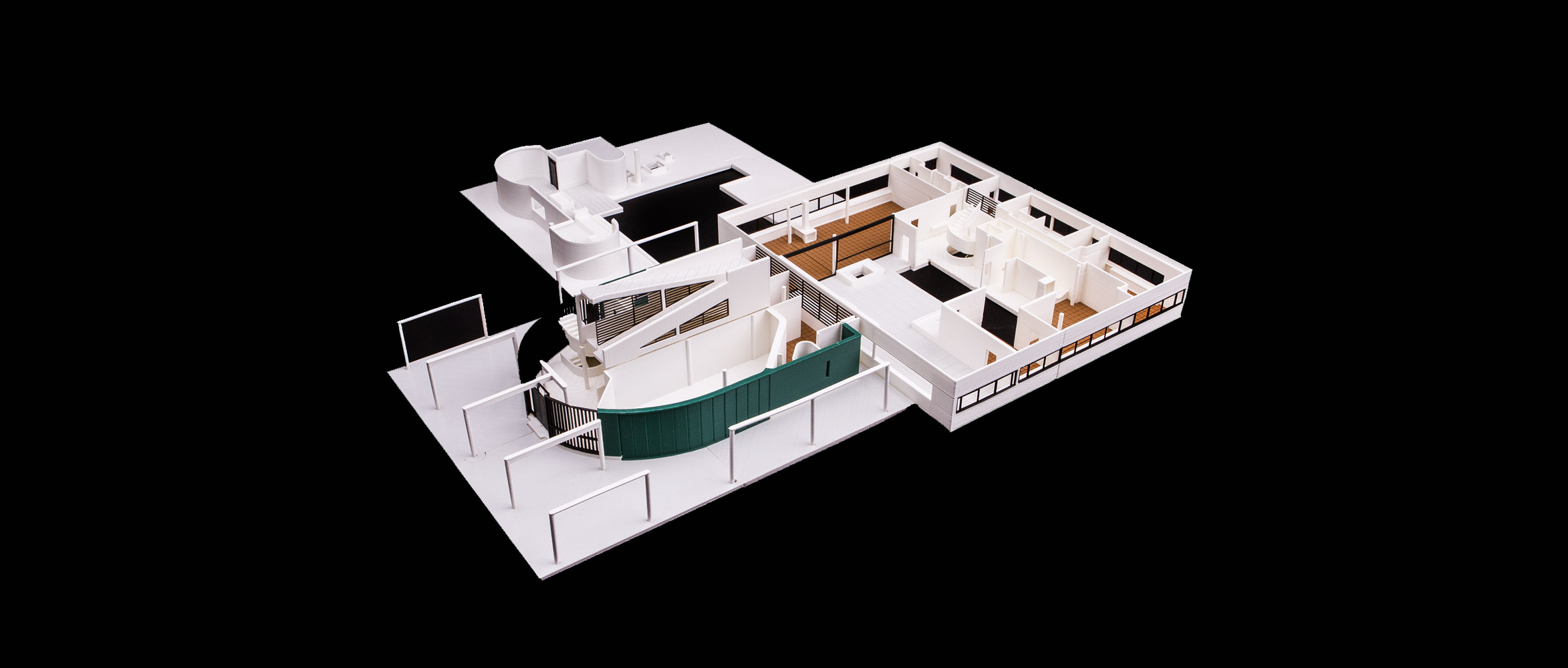

This building, which consists of three floors, is divided into individual floors so that the inside of the building can be fully appreciated.
I have divided it into several parts to describe the details of this building. Therefore, the printing takes a long time. To print the window frame, a glossy build plate installed 3D printer is recommended.
It is also divided by color, so if you print it, you will appreciate the value of this building.
Lengh-243 X Width-278 X Height-118mm
| PRUSA Slicing Settings | Simplify 3D |
|---|---|
| Extuder | Nozzle Diameter : 0.4mm / Retraction Distance : 2.4mm |
| Layer Settings | Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2 |
| First Layer Settings | First Layer Height : 150% / First Layer Width : 100% / First Layer Speed : 50% |
| Infill | Interlor Fill Percentage : 10% / Outline Overlap : 30% |
| Additions | Raft : OK / Brim : NO / Support : NO |
| Ender Slicing Settings | Simplify 3D |
| Extuder | Nozzle Diameter : 0.4mm / Retraction Distance : 4mm |
| Layer Settings | Layer Height : 0.1mm, 0.2mm / Top Solid : 8 / Bottom Solid : 6 / Outline : 2 |
| First Layer Settings | First Layer Height : 120% / First Layer Width : 100% / First Layer Speed : 50% |
| Infill | Interlor Fill Percentage : 10% / Outline Overlap : 40% |
| Additions | Raft : OK / Brim : NO / Support : NO |
Notice !
Feel free to talk about your product.
Comments that are irrelevant to the topic may be deleted
did you make it? please write making story !
Write Review
In my opinion, there is a lack of specification of the maximum dimension of the largest element because not everyone may have a corresponding workspace size
How do you print the slope without support?
Thanks,
Grate design and lovely details. Is it a scaled model?
en que escala está la impresion?
